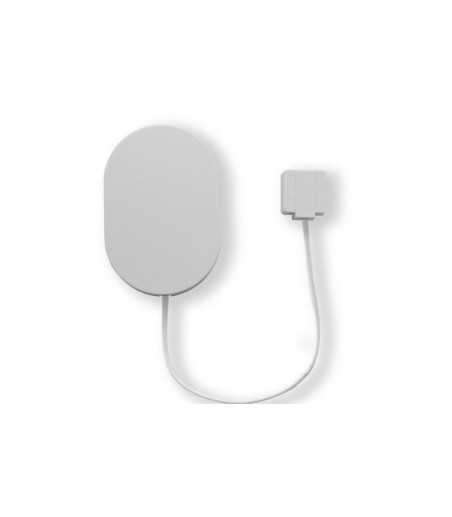

FRIENT - Zigbee Electricity Meter Interface V2

Easily track your energy consumption and identify peaks to help you reduce consumption and become more energy conscious.
Install the Electricity Meter Interface 2 on your meter with a flashing LED light, and this device will keep you informed of your energy consumption on your smartphone via a compatible hub. And don't worry, you don't need professional help to install it. You can easily do it yourself.

That's what frients are for:

• Inform you about your energy consumption
• Operate with LED meters indicating energy consumption
• Easy installation


Informing you of your energy consumption

This interface is called the electricity meter interface, but it allows you to monitor the data from your LED pulse meter. The Electricity Meter Interface 2 is really a useful little tool that allows you to identify your consumption peaks and start shifting some of your consumption to off-peak periods - to the benefit of the grid, the environment and your energy bill.

• Become aware of your energy consumption with remote meter readings from the Electricity Meter Interface 2.
• Track your energy consumption, identify peaks, reduce your consumption and save money.
• Help protect the environment: Shift part of your consumption to off-peak hours.
• Easy to install: fit this frient to a meter with an LED indicating power consumption.
• HUB REQUIRED: This Zigbee frient needs a hub to connect to your smart home. Electricity Meter Interface 2 works with Homey and SmartThings. Not all features work with all hubs.
• Compatible with: Meters that have a flashing LED light with a standard output rate of 1000 pulses/kWh. Configurable pulse rate available with some concentrators.


Operation with flashing LED meters

This electricity meter interface works with meters featuring an LED indicating energy consumption and a standard output rate of 1000 pulses/kWh. However, pulse rate configuration is possible with some concentrators.


Easy installation

Fit the Electricity Meter Interface 2 to your meter and start getting remote meter readings via a compatible smart home hub. There's no need to call in a professional to install it. You can do it yourself.


Technical data

• Model number: EMIZB-141
• Dimensions (W x H x D) -> Sensor: 95 x 65 x 22.3 mm
• Dimensions (W x H x D) -> Probe: 25.4 x 28.4 x 11.6 mm
• Color: white
• Power supply -> Battery: 2 AA alkaline batteries, interchangeable
• Battery life: 2 years, updated every 5 seconds at room temperature
• Battery level and low battery warning can be signaled
• RF sensitivity -100 dBm
• RF output power 10 dBm (EU), 19 dBm (US)
• Operating temperature : -20 to +60°C
• IP class: IP22
• Relative humidity: 5% - 85%, non-condensing
• Meter reading: Via a probe that reads the LED
• Interfaces: LED pulse support (configurable pulse range from 50 to 10,000 pulses per kWh)
• Wireless protocol: Zigbee 3.0, Zigbee end device
• Certifications: CE, UKCA, FCC, IC, ISED, RED and RoHS compliant, Zigbee 3.0 certified
