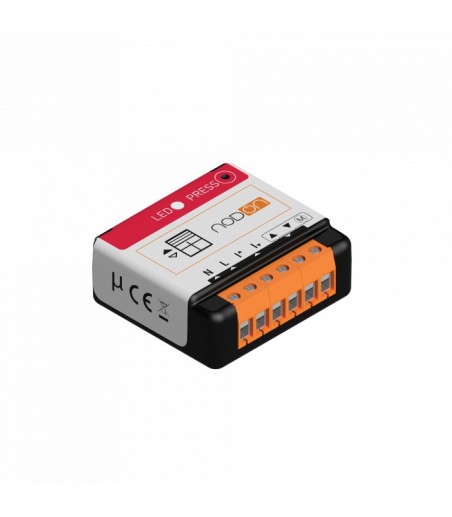

nodon - Zigbee 3.0 roller shutter module
CHF44.90
Tax included
The Zigbee Roller Shutter Module makes the roller shutter, awning or motorized adjustable sunshade connected through simple installation and without work.
Expert advice for over 14 years
Ordered before 5:00 p.m. = delivered within 24:00 p.m.
Official supplier chosen byover 60 manufacturers
This Zigbee Roller Shutter Module is installed on your equipment (roller shutter, blind, adjustable sunshade) to make it connected and controllable automatically or remotely thanks to a controller or a Zigbee 3.0 compatible home automation system.
Interoperable with the majority of Zigbee ecosystems on the market, this NodOn module is ideal for centralizing the control of the roller shutters of a room, a floor or an entire building.
Equipped with a compact size, you can install it in a built-in pot >30mm or directly on the electrical panel with the DIN Rail Box NodOn. The centralization of your openings and the creation of scenarios becomes possible thanks to this module, installed directly on your equipment and adapted to them thanks to its auto calibration function.
AUTO CALIBRATION
No adjustment necessary, the module automatically calibrates on the equipment according to the motorized shutter/blind.
ULTRA COMPACT PROFILE
Installation in built-in pots from 30 mm.
INSTALLATION WITH A ELECTRICAL PANEL
Requires DIN Rail Housing.
UPDATE OVER THE AIR (OTA)
The module is quick to update thanks to the OTA function. Updates can be made via a compatible home automation system.
COMPATIBLE WITH ALL ZIGBEE ECOSYSTEMS
Zigbee 3.0, this module is 100% interoperable Zigbee.
DUTIES
- Order a roller shutter or blind remotely
- Installs behind an existing switch
- Move Up/Down/Stop function
- Auto calibration
- Small, discreet and aesthetic
- Ease of use and installation
- Compatible with all Zigbee 3.0 gateways
- Over-the-air (OTA) update
TECHNICAL CHARACTERISTICS
- Power Supply: 230V AC~50Hz
- Switching capabilities: 230V AC - 3A
- Consumption: < 1W
- Max. motor power: 280W - 60 Nm Max - Integrated zero crossing
- Radio protocol: Zigbee 3.0
- Radio frequency band used: 2.4 GHz
- Maximum radio power: +10dBm
- Radio range: up to 30m indoors
- Operating temperature: -20°C to 60°C
- Protection rating: IP 20
- Device ID Type: On/Off Output (0x0202)
- Commercial warranty: 2 years
SIN-4-RS-20
8 Items
Data sheet
- Use
- Blinds/Gate Control
- Type
- Module
- Function
- Actuator
Rolling Shutters/Blinds - Protocol
- Zigbee
Specific References
