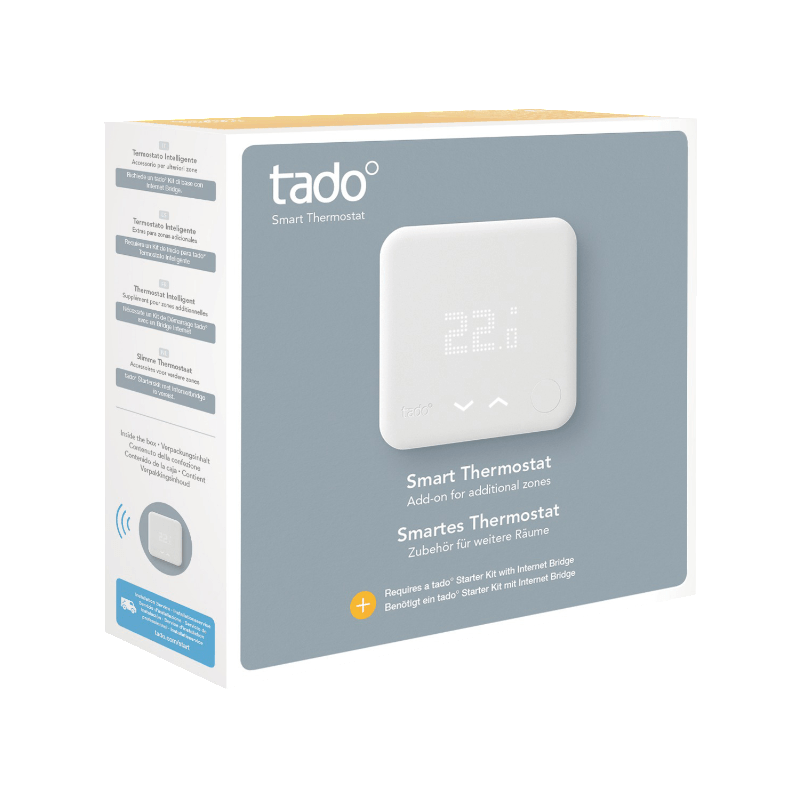

Tado - Smart Thermostat V3

Introducing the new Smart Thermostat (v3): More comfort, better control and platform connectivity.

With multi-room control and the new heating algorithm, tado° can save even more on your heating costs and make life more comfortable. An improved interface on the thermostat itself and the new Smart Schedules in the app make control of your heating even easier.

The tado° Smart Thermostat uses your phone’s location to control your heating, ensuring no energy is wasted. The smartphone app gives you full control over your heating wherever you are. Experience more comfort while saving up to 31% of your heating costs.

If you own a Smart Thermostat - Starter Kit or a Smart Radiator Thermostat - Starter Kit of any version (V2/V3/V3+) then you can supplement these with additional Smart Thermostats to independently control multiple zones.



What’s in the box?

Smart Thermostat, USB cables, connectors, mounting screws, adhesive pads, labeling for cables, screwdriver, 3 AAA batteries



Integrations

The new product suite offers several integration possibilities, such as Apple HomeKit, Google Home, Amazon Echo, and IFTTT.

Make tado° part of your connected home and create scenes with Apple HomeKit. Use Siri, Google Assistant or Amazon Echo to voice control your heating and create Applets with IFTTT to connect with other applications and smart devices.





Thermostat



Control your heating with the Smart Thermostat

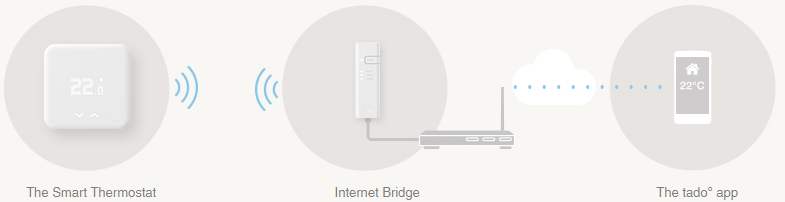

The Internet Bridge connects to the internet via your router. The Smart Thermostat and the Internet Bridge communicate via radio.



More control

tado° shows you how warm it is at home, when your heating is on and how much you are saving. It also lets you control the heating from wherever you are.



Geolocation

tado° uses the residents’ locations to control the heating. Saves when nobody is at home and heats when the first person heads back.



Save money

tado° cuts your heating bill by up to 31%. Calculate your savings here.



Report overview

The report shows you the home temperature throughout the day and your savings with tado°.



Weather forecasts

tado° utilises the weather in order to heat your home more efficiently.



Effortless

Easy to install, intuitive to use and automatically adjusts the heating to your lifestyle.



Heating error messages

tado° informs you about issues with your heating system and provides direct assistance and advice.



Building characteristics integration

Every home is unique, tado° gets to know your building and learns the most efficient way to heat your home.



Flexible use

tado° adapts to your needs: automatic heating control, schedules or manual control.



Compatibility

Works with 95% of heating systems



Own boiler / gas central heating



Underfloor heating



Supported manufacturers:
Brötje, Buderus, Elco, Ferroli, Hoval, Junkers, Riello, Vaillant, Viessmann, Wolf,...and many more



Supported heating systems:

•  both 230V and extra low voltage interfaces (digital bus / analogue)
•  combi, system and heat-only boilers
•  conventional and condensing boilers
•  common Y-, S- and W-plan setups
•  hydronic underfloor systems
•  electric underfloor systems with a maximum switching current of 6 A
•  air source and ground source heat pumps (heating only)
•  zoned systems (one Smart Thermostat per zone)
•  relay compatible both switched live systems and potential free (dry contact) systems



Add devices

The Smart Thermostat - Starter Kit (v3) works with multiple Smart Thermostats and Smart Radiator Thermostats.



Specifications



• Power supply: 5-36V DC 0.2A / 4.5V DC - (3xAAA batteries, 1,200 mAh, average life ~ 2 years)
• Interface: LED matrix 10 x 19 LEDs, 32 x 20 mm / buttons: 2x capacitive touch, 1x mechanical
• Sensors: temperature / humidity / ambient light
• Dimensions (H x W x D):
  • Smart Thermostat 104 x 104 x 19 mm
  • Weight:
    • Smart Thermostat 132g
    • Internet Bridge 61g
    • Full packaging: 350g
• Environmental certifications: German engineered, production certified: ISO 14001 / ISO 9001 / BS OHSAS 18001 / EU RoHS compliant Recyclable packaging
• Warranty: 2 year limited warranty
• Internet connection: Via Internet Bridge connected to an ethernet port of the home’s internet router
• Radio communication (between devices): 868 MHz, Mesh (6LoWPAN)
• Data encryption: TLS 1.2 (SSL), 2048-bit Extended Validation Certificate / TLS 1.2 (SSL), 256-bit elliptic curve encryption / AES-CCM encryption
• Product material and finish: PC+ABS plastics/ white, matte
• Multi-language support: English, German, French, Italian, Spanish, Dutch
• Savings potential: based on a simulation study by the Fraunhofer Institute for Building Physics (Germany, 2013)
• API:Google Home, IFTTT
