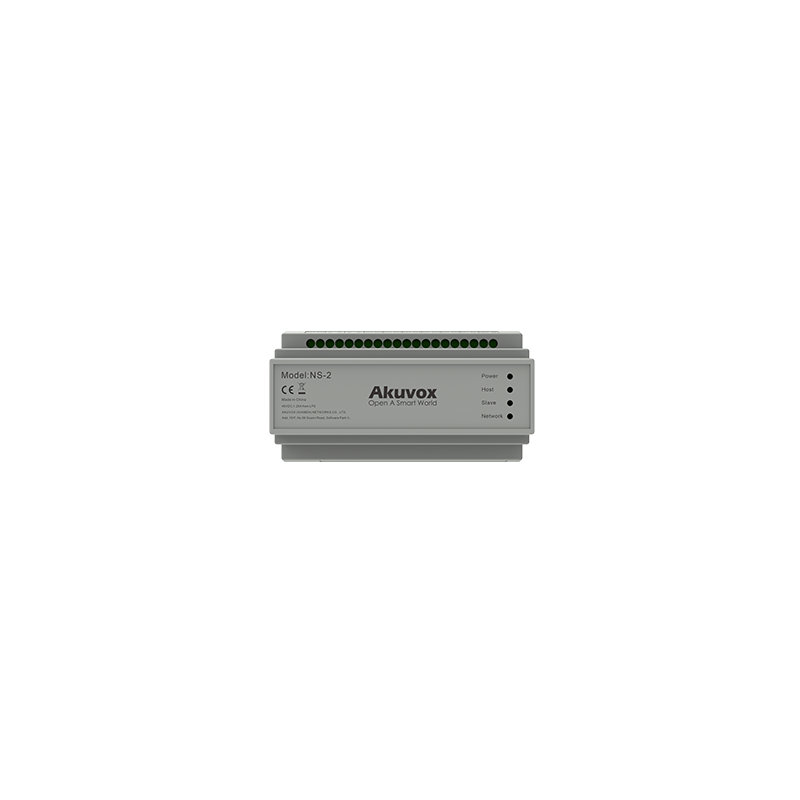

Akuvox - 2-wire IP Network Switch NS-2

The NS-2 is a 2-wire Akuvox IP network switch that offers a convenient way to upgrade analog intercom systems, without having to redo the wiring. Its very long transmission distance and good compatibility with existing lines allow it to adapt to most old buildings.

Key functions

• Supports network and power on R20A-2 or C313W-2 via 2-wire cable
• Supports multi-level cascade via 2-wire cable
• Allows connecting up to 6 2-wire IP intercom devices Akuvox
• Super long transmission distance via 2-wire cable
• Powered by a 48VDC or 24VDC power supply (not included)
• Installation sur rail DIN

A perfect choice for renovation

Many existing 2-wire intercom systems fail to meet residents' growing needs for safety and convenience. The 2Akuvox -wire residential SIP video intercom solution is perfect for upgrading outdated systems on existing infrastructure.

The 2-line range ofAkuvox offers the following advantages:

• Cost reduction through the reuse of existing cables.
• Upgrade of intercom functions.
• Adaptation to projects of different scales.

Akuvox has found a solution to allow you to enjoy the advantages of an IP network type system, but with old cabling and without having to replace it.

Easy intercom upgrade

There is no need for a long and expensive rewiring of the building. Installers can simply reuse existing two-wire cables to install intercom devices.

Suitable for projects of all sizes

The solution offers a long data transmission distance, up to 300 meters between devices, and excellent compatibility with the existing cabling of most older buildings. Thanks toAkuvox's NS-2 2-wire IP network switch, the system can be expanded for larger installations.

Exceptional audio and video quality

Most traditional 2-wire intercom systems only support audio communication between visitors and residents, resulting in decreased security and a poor experience for residents. WithAkuvox's smart intercom solution, residents can enjoy crystal clear audio communication with visitors and see them before allowing or denying remote access.

Convenient application-based functions

By subscribing to Smart Cloud' Akuvox intercom services, residents will be able to enjoy rich intercom features from their smartphones, including video calls, remote door unlocking, video surveillance, alarm push notifications, and receiving community notifications.

Remote system management

Akuvox offers on-premises or cloud-based management systems. Both enable remote deployment, operation and maintenance of a large number of devices via a web browser, saving time and money, especially for large-scale installations.

Easy integration with third-party systems

Akuvox systems easily integrate with various third-party systems to provide more benefits to residents. For example, the indoor monitor can integrate with IP cameras to stream live video. It is also possible to connect it to various alarm sensors to improve the security of the home.

Schematic diagram for a villa

Schematic diagram for a building

TECHNICAL CHARACTERISTICS

• Communication: TCP/IP
• RJ45 port: 1x RJ45, 10/100Mbps adapter
• 2-wire port: 6 pairs
• Voltage: 48V or 24V (not included)
• Status indicators: 4
• Installation: Rail Din mounting
• Operating temperature: -20C° to +50C°
• Operating humidity: 10% to 90%
• Dimensions: 161 x 90 x 65mm
