Meross - Smart Wi-Fi Roller Shutter Switch

Introduction

The WiFi Matter MRS105MA-EU roller shutter switch is an intelligent device designed to control your roller shutters with precision and safety. Compatible with the Matter protocol, it offers enhanced protection through standardized cryptographic algorithms and automatic calibration of the shutter's upper and lower positions. CE and TUV certified, with a fireproof casing and protection against electrical overloads, this switch ensures reliability and safety in all Matter-compatible smart home installations.

Key Functions

• One of the first Matter-compatible shutter switches on the market.
• Superior safety and reliability, CE and TUV certified.
• Fireproof casing for enhanced protection.
• Protection against electrical overloads.
• Automatic calibration detecting upper and lower positions for precise control.
• Enhanced security through Matter's standardized cryptographic algorithms.
• Protection of each exchanged message for secure communication.
• Multi-system compatibility, works simultaneously with multiple smart home platforms.
• Allows customization of the Matter hub according to needs.
• Requires a compatible Matter hub (Echo Dot, HomePod mini, Google Nest Hub, SmartThings Hub) for device connection and management.

Technical Specifications

• Input Voltage: 100-240 V~, 50/60 Hz.
• Output: 5A for resistive loads, 2A for inductive loads, 400W max.

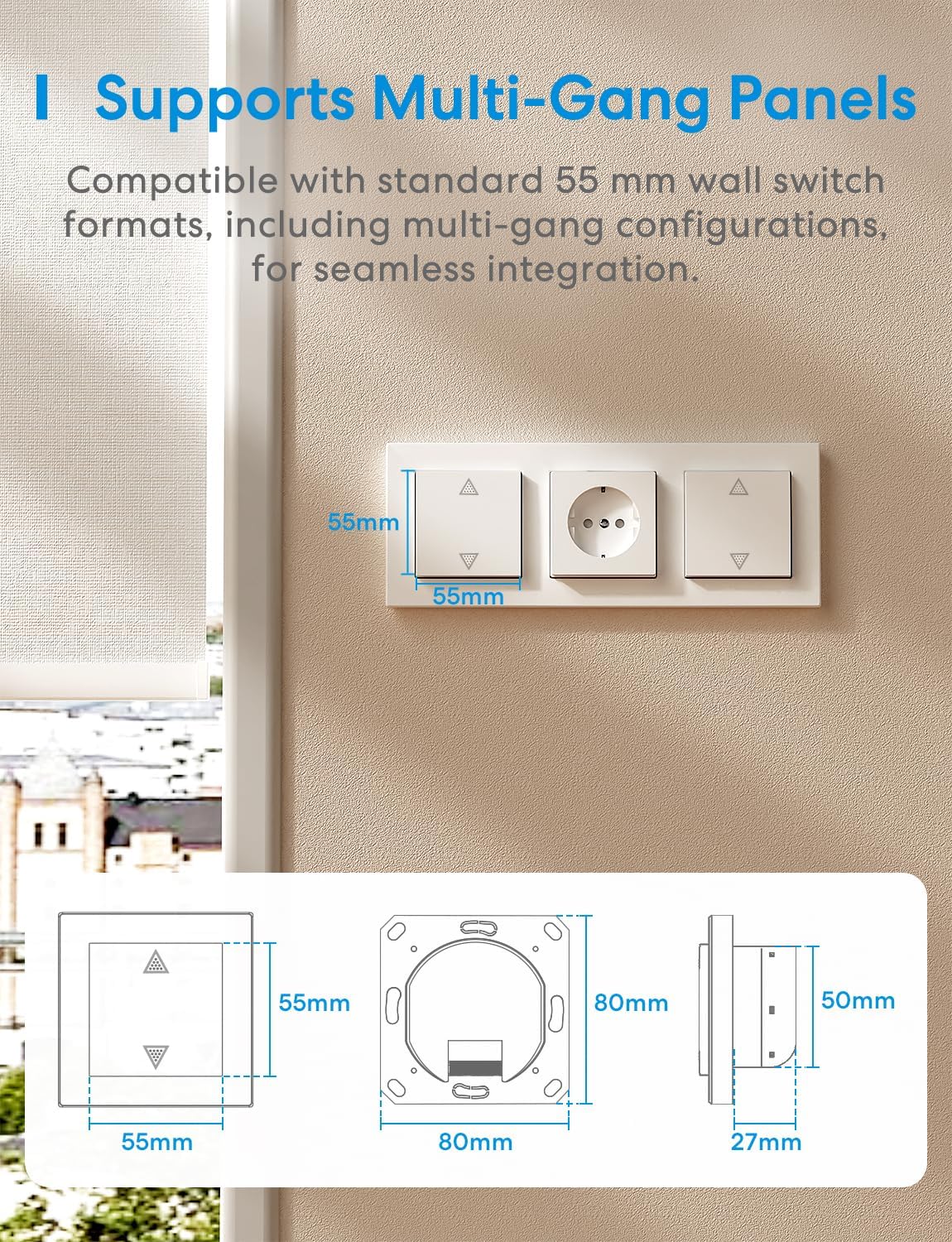

• Dimensions:
  • Product: 8.0 x 8.0 x 4.2 cm
  • Rocker (button): 5.0 x 5.0 cm
• Antenna: internal antenna.
• Wireless Standards: IEEE 802.11 b/g/n, 2.4 GHz, 1T1R.
• Wireless Security: WEP 64/128 bits, WPA-PSK, WPA2-PSK.
• Not Compatible: Enterprise Wi-Fi.
• Certifications: CE (TUV certified), RoHS, WEEE.
• System Requirements: iOS 16.1 or later, Android 8.1 or later, existing 2.4 GHz Wi-Fi network.
• Operating Environment: Temperature: 0°C to 40°C, Humidity: 10% to 90%, non-condensing.
• Storage Environment: Temperature: -40°C to 70°C, Humidity: 5% to 90%, non-condensing.
