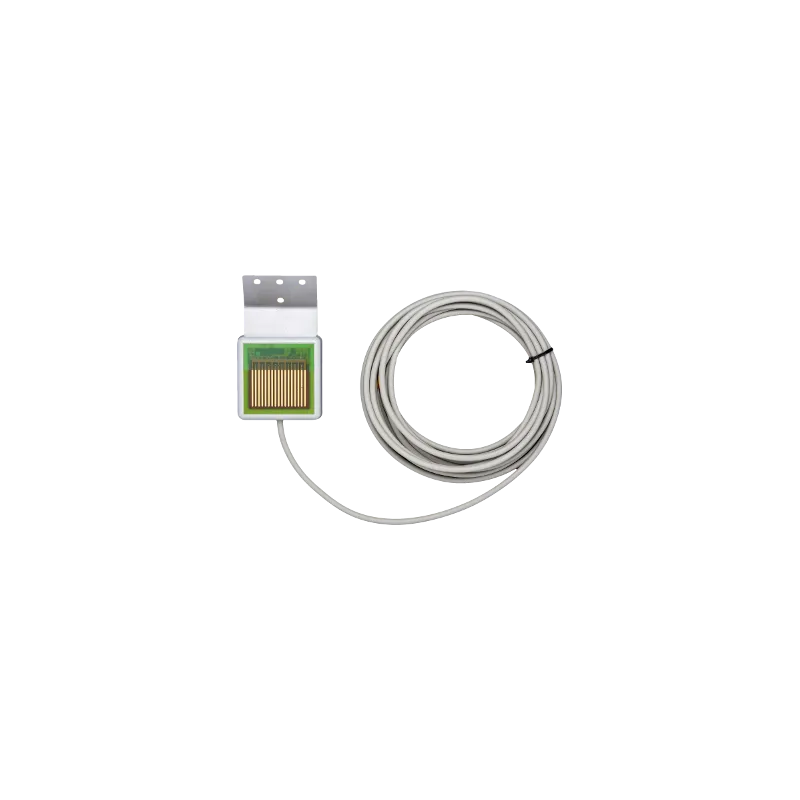

MDT - Rain Sensor, Outdoor installation on wall, integrated BCU

Description

Outdoor installation, Surface mounted

Function

• Integrated, automatically heating
• Heating operation by choke free output STV-640/STC series
• or external 24VDC power supply
• Current consumption of heating is <100mA
• 5m bus connection cable
• Stainless fastening angle included in delivery
• Dimensions (W x H x D): 67mm x 67mm x 29mm
• Integrated bus coupling unit
• 3 years warranty

Technical Specifications

• Measured data Rain
• Specification KNX interface TP-256
• Available application software ETS 3/4/5
• KNX busconnection 0,8mm Ø, solid core
• Power supply KNX Bus
• Power consumption via KNX bus typ. < 0,3W**
• Operation temperature range -20 to + 70°C
• Enclosure IP 45
• Dimensions control unit (W x H x D) 67mm x 67mm x 29mm
