Secure - Z-Wave Water Meter for Sensus water meter
CHF104.90
Tax included
This Z-wave module measures the water consumption at the meter and reports the information to your main controller.
Expert advice for over 14 years
Ordered before 5:00 p.m. = delivered within 24:00 p.m.
Official supplier chosen byover 60 manufacturers
Presentation

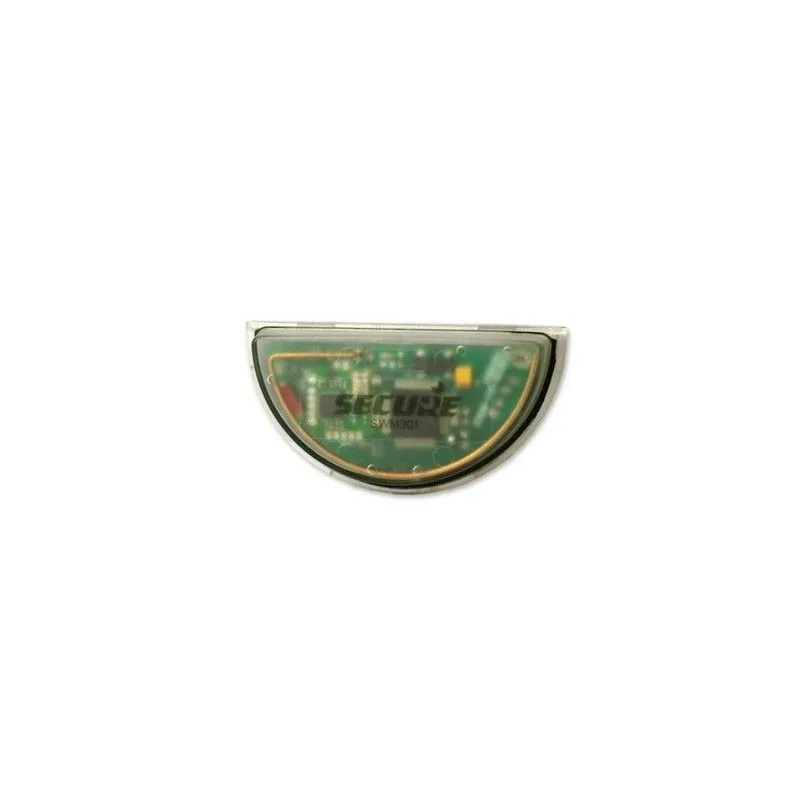

The SWM301 is a Z-Wave technology module that makes reading your domestic water meter child's play. The low-power radio signal transmits the meter reading to a Z-Wave compatible controller.
The RF module is installed on a Sensus Résidia Jet water meter and records the meter reading from the meter wheel and transmits the data via your Z-Wave network.
The device contains a lithium battery with a life of 10 years based on a 24 hour RF reporting interval.
Features
- Water consumption module
- Low battery warning
- Can be linked to create a 3 group association (2 devices maximum per group)
- Compatible with Sensus Résidia Jet water meters
- Easy to use and install
Technical specifications
- Z-Wave device type: slave
- Material: Flame retardant thermoplastic
- Power supply: 1 3.6VDC lithium battery
- Frequency: 868.42 MHz
- Transmission range: 30m
- Data reporting interval: 24 hours
- Protection index: IP54
- Operating temperature: 0°C to 40°C
- Dimensions: 64.5 x 27 x 34.5 mm
- Certification: EN 60950
SWM301
Data sheet
- Type
- Module
- Gateway compatibility
- eedomus+ - total compatibility
- Protocol
- Z-Wave Serie 300
