PRESENTATION

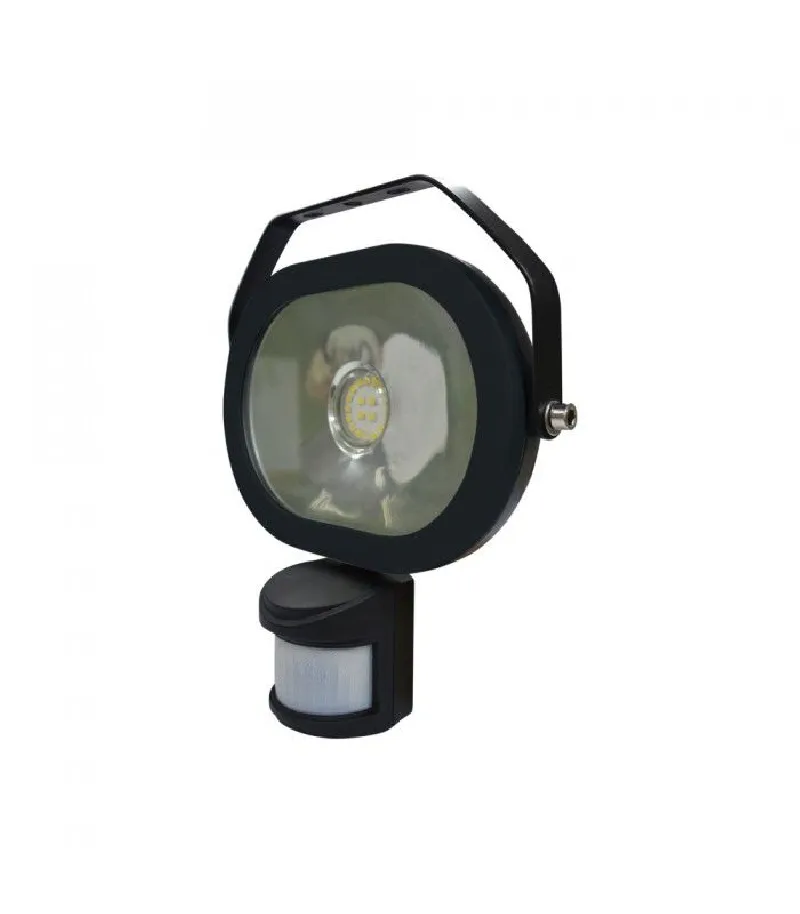

Small yet powerful, this slim design floodlight with PIR detector is a compact fully automatic security floodlight. Its aesthetic design makes it suitable for installation in front areas of the house typically occupied by spotlight and lanterns.
When connected to the Z-Wave controller, the user is able to remotely turn on/off the floodlight and receive notification when the PIR detects motion.
FUNCTIONS
- Wireless two-way communication
- Comply with S2 security solution
- Auto-pairing to the gateway
- IP44 water proof for outdoor use
- VR adjustment for time & lux setting
- Swivel lens angle
- Test mode for easy installation at outdoors
TECHNICAL SPECIFICATIONS
- Function: 20W LED floodlight with PIR
- Frequency range: 868.42 MHz
- RF protocol: Z-Wave Plus, SDK 6.71
- RF range (open space): >100m
- Color temp (K): 5000K, cool white
- CRI: ≧70
- Lumen (lm): 20w > 1500 lm
- Beam angle: >90°
- Power input: AC100V – 240V, 50/60Hz
- PIR detection angle/range: 110° at 8m, 2.4m Height
- Sensor swiveling angle: Horizontal: 60°, Up to 30° Leftward, Up to 30° Rightward
- Lux adjustment: 30 – 200Lux & test mode Time adjustment: 8±5 Sec – 12±4 Min
- Electrical classification: CLASS II
Specifications
| Use | Lighting Control Motion/Presence Detectors |
|---|---|
| Type | RGB Bulbs Sensor |
| Function | Actuator Motion detection (PIR) |
| Gateway compatibility | eedomus+ - total compatibility |
| Protocol | Z-Wave Serie 500 |
Guides
Everspring_EH403_manual
Everspring EH403 User Manual
-
