Sonoff ZBMINIR2 - Ultra-Compact Extreme Zigbee Smart Micro Module

Presentation

The ultra-compact Zigbee micromodule that transforms any switch into a smart control.

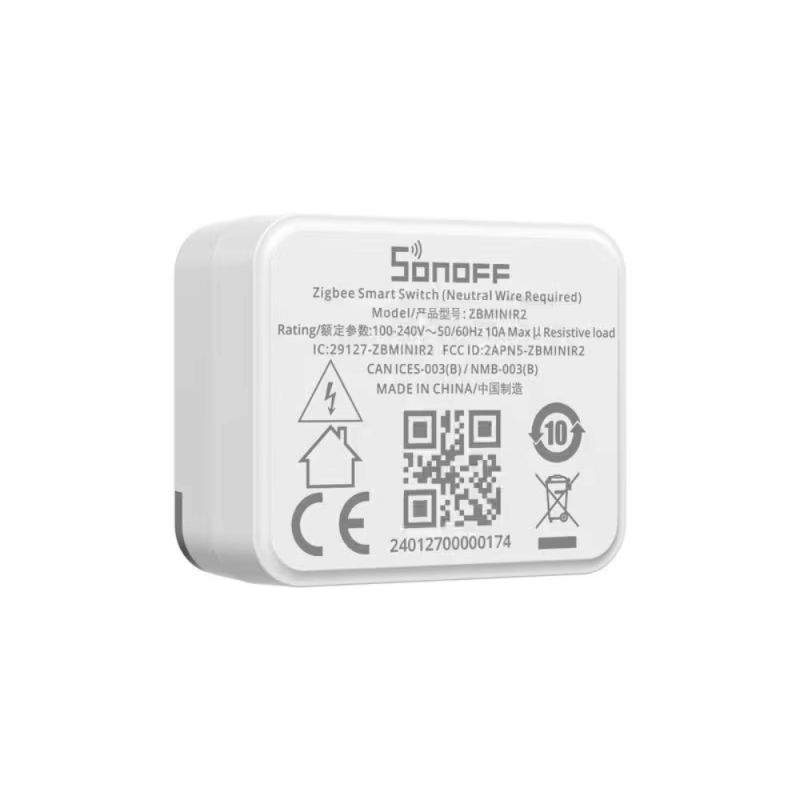

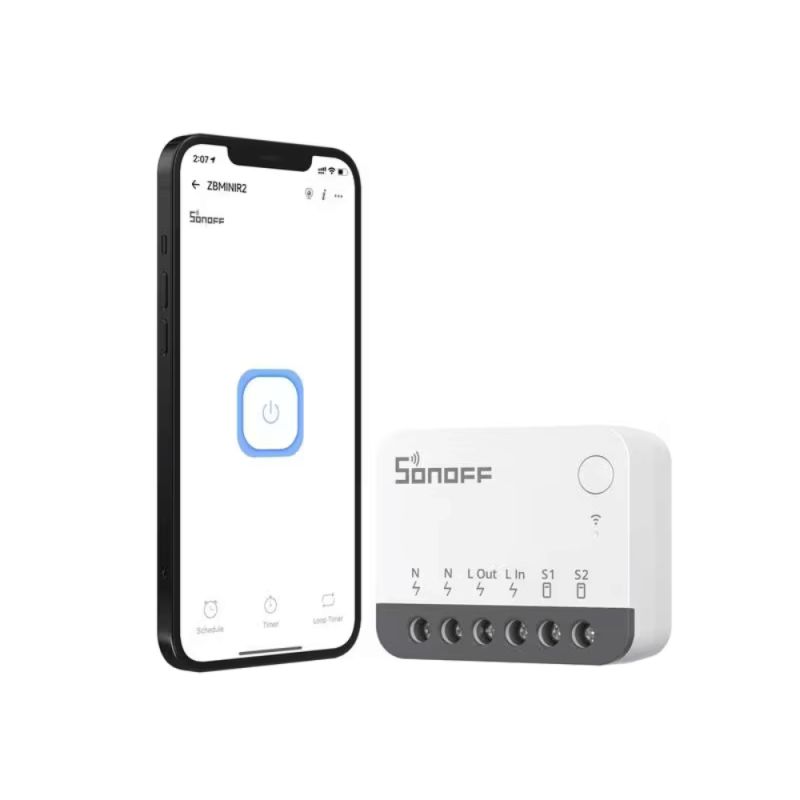

The Sonoff ZBMINIR2, dubbed "MINI Extreme," revolutionizes home automation installation by offering the most compact Zigbee micromodule on the market (39.5 x 33 x 16.8 mm). Designed to integrate discreetly into European, Chinese 86, and American 120 electrical boxes, this ingenious module hides behind your existing switch to make it smart without altering the aesthetics of your installation. Thanks to its new-generation EFR32MG21 chip and "Turbo" mode, it extends communication range up to 200 meters in open space, which is 5 times more than the previous ZBMINI model. Beyond its smart switching function, the ZBMINIR2 plays a crucial role in your Zigbee network by acting as a router, capable of supporting up to 64 terminal devices to densify and stabilize your home automation mesh network. Compatible with a wide range of external switches (momentary, toggle, SPDT, door contacts), it adapts to all existing electrical configurations while offering advanced features like the "Detach" mode, specially designed to control connected bulbs without disconnecting them from the network.

Key functions

Ultra-compact format for universal installation With dimensions of only 39.5 x 33 x 16.8 mm and weighing 26.7 grams, the ZBMINIR2 easily fits into standard wall boxes, even the most cramped ones. It perfectly adapts to European round and rectangular boxes, Chinese type 86, and American type 120 formats, ensuring a successful installation in all architectural configurations. Its ergonomic design optimizes the available space within the box, facilitating wiring and allowing for the installation of multiple modules side by side if necessary. The V0 flame-retardant polycarbonate casing ensures maximum safety, while the CE, FCC, ISED, and RoHS certifications attest to compliance with the strictest international standards.

High-performance Zigbee router with Turbo mode The ZBMINIR2 doesn't just control your lighting: it becomes a crucial part of your Zigbee network by functioning as a permanent router. Thanks to the "Turbo" mode based on the EFR32MG21 chip, it achieves a communication range of 200 meters in open space, effectively eliminating dead zones in your home. Each module can relay signals to 64 Zigbee end devices, thus creating a robust and self-healing mesh network. This repeater function is particularly valuable in large homes or installations with numerous sensors and actuators, where the multiplication of routers ensures uniform coverage and unwavering reliability.

Total compatibility with existing switches and Detach mode The ZBMINIR2 seamlessly integrates with your existing wall switches thanks to its configurable "S" input. It supports momentary switches (push buttons), traditional toggle switches, SPDT, and even door contacts, offering unmatched installation flexibility. The "Detach" mode is a major innovation for smart bulb users: it maintains a constant power supply to the lamp even when the wall switch is in the "off" position, thus preventing the connected bulb from being disconnected from the network. The physical switch then becomes a simple scene button that sends commands to the home automation system without cutting the power, allowing you to retain manual control while preserving the smart features of your Zigbee bulbs.

Advanced automation and load protection Create sophisticated home automation scenarios by integrating the ZBMINIR2 into your smart ecosystem. Schedule operating times, create command groups to control multiple lights simultaneously, trigger lighting based on motion detectors or weather conditions. The power-on delay function protects your electrical equipment by avoiding the current surge that occurs when multiple loads turn on simultaneously after a power outage. Voice control naturally integrates via Amazon Alexa and Google Home once the module is paired with a compatible gateway, while group configuration makes managing entire areas of your home easy with a single command. The eWeLink app offers an intuitive interface to monitor the status of your switches and create custom automation rules.

Technical specifications

Reference and standards

• Model: Sonoff ZBMINIR2 (ZBMINI Extreme)
• Protocol: Zigbee 3.0
• MCU: EFR32MG21 (next-generation chip)
• Certifications: CE, FCC, ISED, RoHS
• Enclosure: Polycarbonate V0 (flame retardant)
• Color: white

Power supply and charging

• Input voltage: 100-240V~ 50/60Hz
• Maximum current: 10A
• Maximum load: 2400W @ 240V (resistive)
• Neutral wire required: YES (indispensable for operation)
• Supported load type: resistive (lighting, small appliances)

Dimensions and weight

• Dimensions: 39.5 x 33 x 16.8 mm (ultra-compact)
• Net weight: 26.7 grams
• Format: the smallest Zigbee micromodule on the market

Wall box compatibility

• European enclosures: standard round and rectangular
• Chinese format: 86 type
• American format: 120 type
• Minimum depth required with E1GS: 30 mm

Zigbee wireless connectivity

• Standard: Zigbee 3.0
• Function: Zigbee Router (permanent relay/repeater)
• Capacity: supports up to 64 Zigbee end devices
• Turbo mode range: up to 200 meters in open field (5x greater than the classic ZBMINI)
• Actual range: variable depending on obstacles (walls, furniture)
• Auto-mesh: automatic extension of the Zigbee network

External switch input (terminal S)

• Momentary switch (push button)
• Traditional toggle switch
• SPDT switch (reversing switch)
• Door contact
• Configuration in the application for each type

Advanced operating modes

• Standard Mode: classic ON/OFF switching
• Detach Mode: maintains constant power supply for smart bulbs (the external switch becomes a scene button)
• Power-on delay: protection against current surges when power is restored
• Individual configuration: custom settings per device
• Automations by scenes: triggering based on multiple conditions

Compatible with Zigbee gateways

• Sonoff: ZBBridge, ZBBridge Pro, NSPanel Pro, ZBDongle-P, ZBDongle-E, iHost
• Home Assistant: native integration via ZHA (Zigbee Home Automation) or Zigbee2MQTT
• Amazon Echo: models with built-in Zigbee hub
• Others: any compatible Zigbee 3.0 gatewayJeedom, Homey, Fibaro, etc.)
• Open-source friendly: ideal for advanced DIY projects

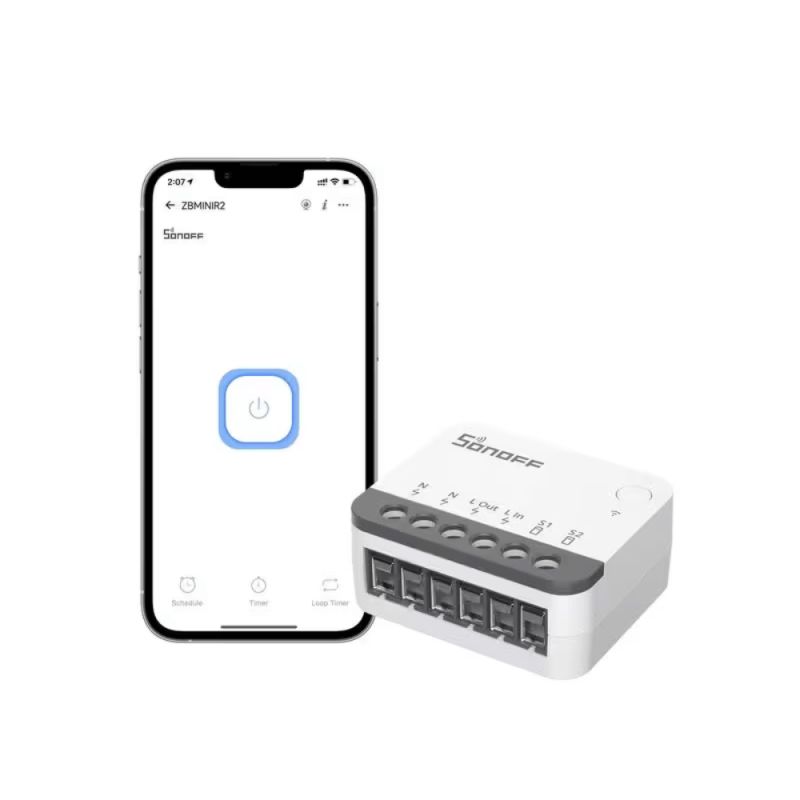

Control and integration

• Application: eWeLink (iOS/Android)
• Voice command: Amazon Alexa, Google Home (via compatible gateway)
• Local control: via physical wall switch
• Remote control: via mobile application or automations
• API: access for custom integrations
• Scenes and groups: creating complex multi-device rules

Protection and security functions

• Overload protection
• Thermal protection
• Programmable power-on delay
• Flame-retardant material PC V0
• Electrical insulation compliant with CE/FCC standards

Terms of Use

• Operating temperature: -10°C to +40°C
• Operating humidity: 5% to 95% RH (non-condensing)
• Usage: indoor only
• Installation: behind wall switch in electrical box

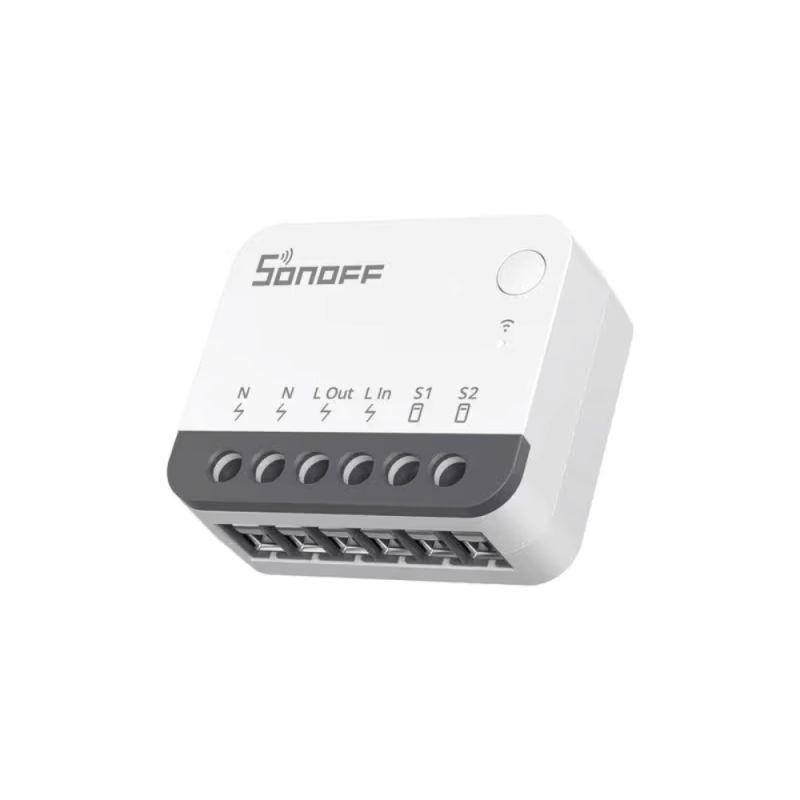

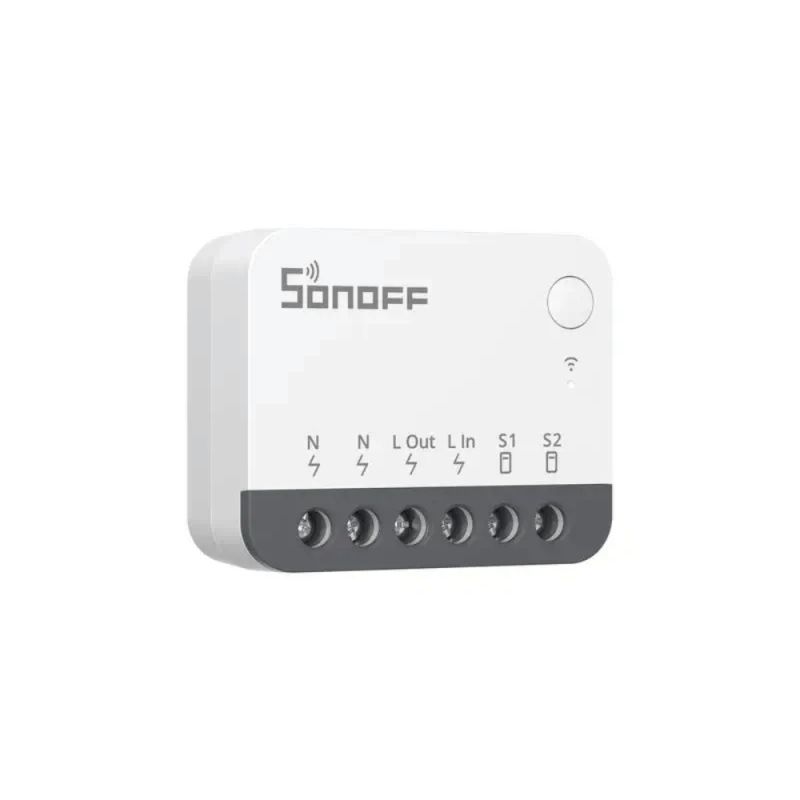

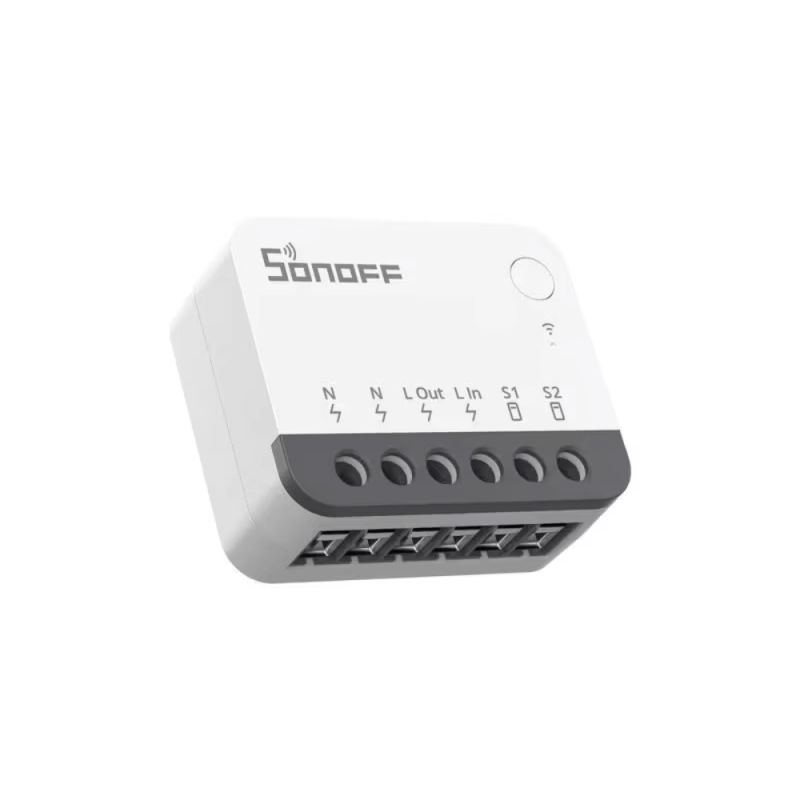

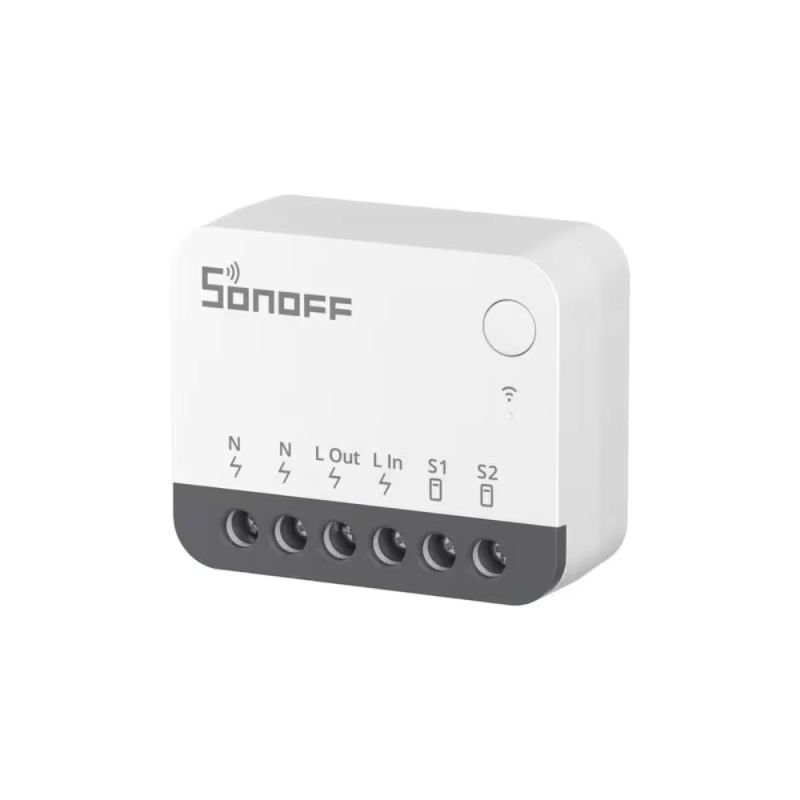

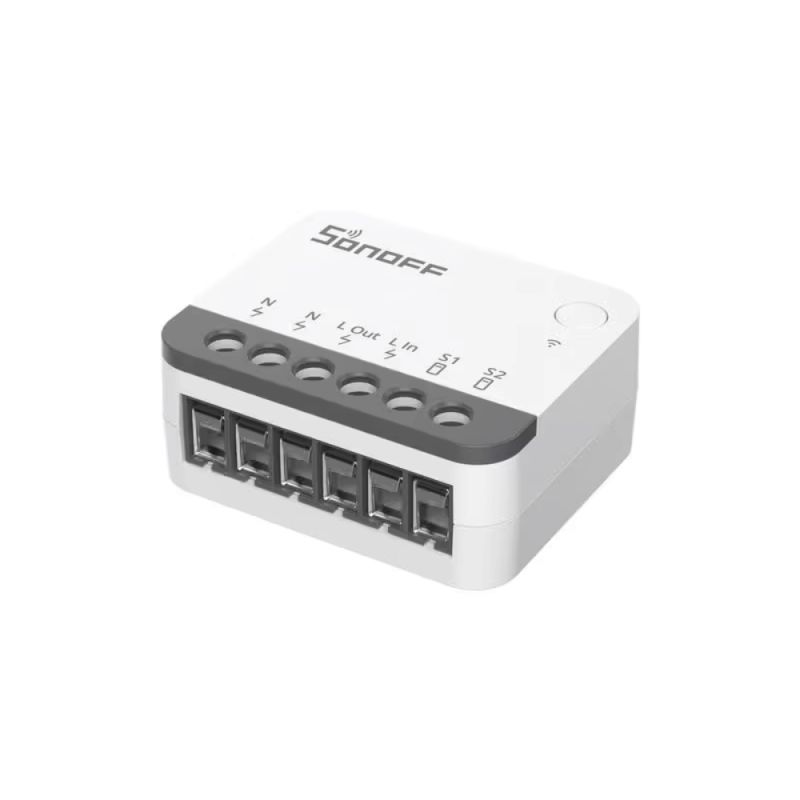

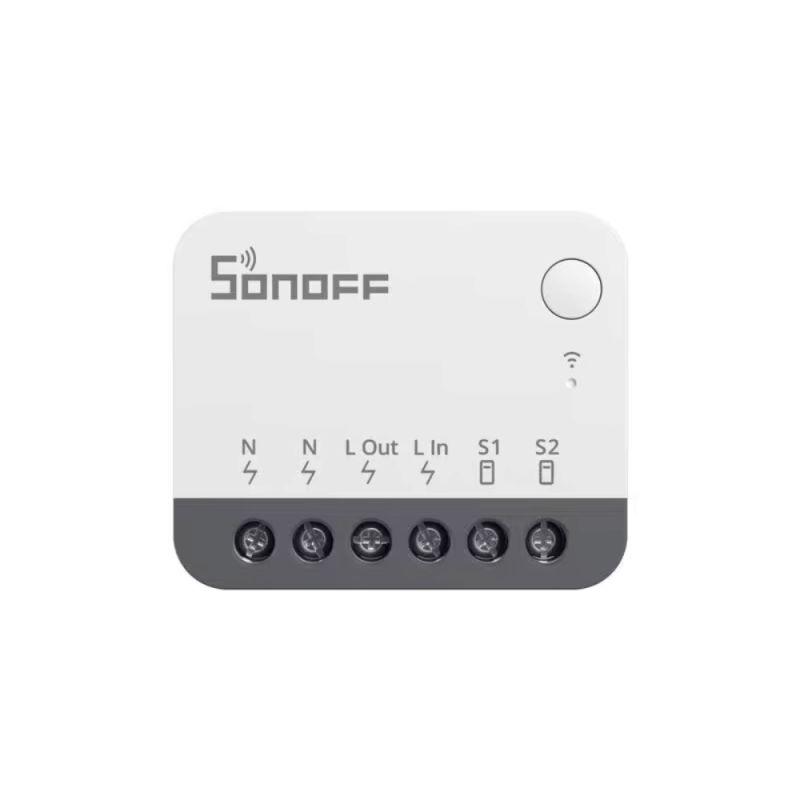

Wiring and installation

• Connection terminals: screw (L, N, S, SOUT)
  • L: Phase (Live)
  • N: Neutral MANDATORY
  • S: External switch input
  • SOUT: Switched output to load
• Wiring diagram: provided in the manual and application
• Installation: by a qualified electrician recommended
• Pairing button: accessible after installation

Pairing and configuration

• Pairing procedure: hold the reset button for 5 seconds
• Pairing mode duration: 180 seconds
• Indicator: Status LED
• Factory reset: prolonged hold of the reset button
• Configuration: via the eWeLink application or home automation platform

Package contents

• Sonoff ZBMINIR2 micromodule
• Multilingual user manual
• Quick Installation Guide
• Wiring diagrams

Dedicated switch compatibility

• Sonoff E1GS: switch specially designed for ZBMINIR2
• Format: compatible with European round housing
• Advantage: optimization of space in a shallow enclosure
• Minimum required depth: 30 mm with E1GS

Model comparison

• ZBMINI (previous model): standard range, slightly larger size
• ZBMINIR2 (Extreme): range x5, ultra-compact format, Turbo mode, neutral wire required
• ZBMINIL2: wireless neutral version, similar features but requires specific configuration

Important remarks

• A Zigbee gateway is required for operation.
• The neutral wire (N) is absolutely necessary in the electrical box.
• Not compatible with strong inductive loads (motors)
• Installation by a qualified professional recommended
• Respect the maximum load of 10A / 2400W
• Do not install in humid or outdoor environments.
