SMLIGHT SLZB-MR1 - USB Ethernet POE Zigbee Adapter + Thread Matter

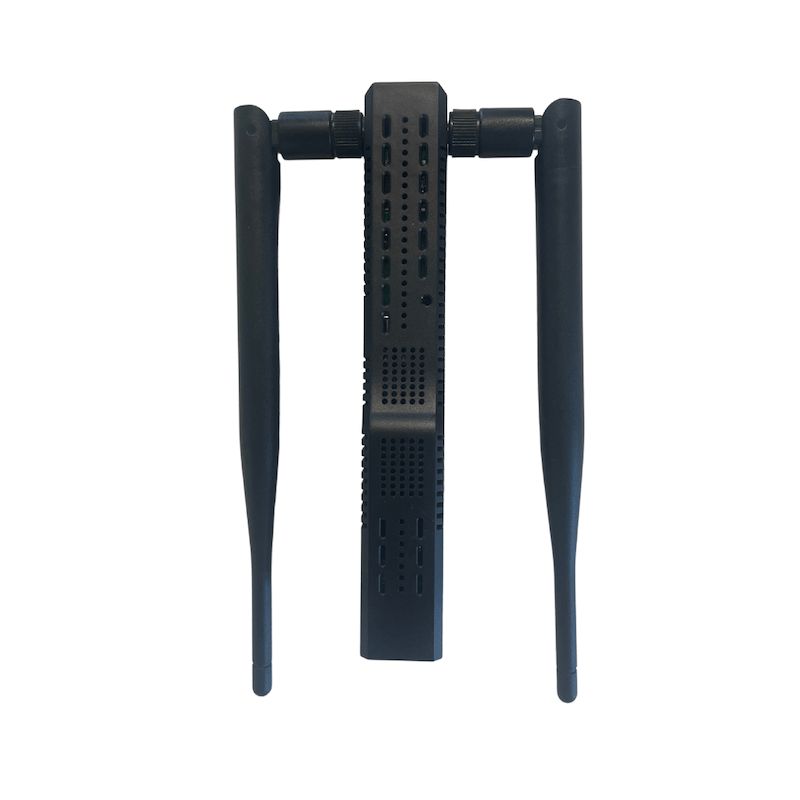

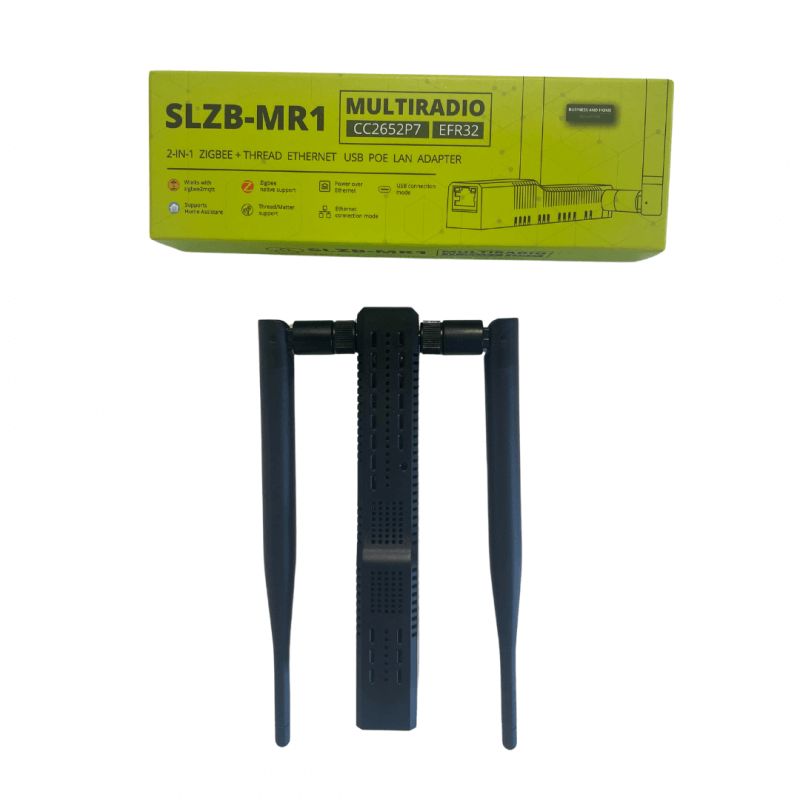

Presentation of the Smlight SLZB MR1 Dongle

The SLZB-MR1 is a next-generation Zigbee and Thread coordinator developed by SMLIGHT. It combines the Texas Instruments CC2652P7 and Silicon Labs EFR32MG21 chips, providing full compatibility with Zigbee2MQTT, ZHA, and Matter-over-Thread.

With its USB-C and Ethernet connectivity, it easily integrates into various smart home configurations. It supports both Zigbee and Thread simultaneously or in a dedicated mode.

Its compact case, PoE or USB-C power supply, and optimized antennas ensure flexible installation and efficient radio transmission.

Features of the Smlight SLZB-MR1

• Dual Zigbee and Thread radio
• Simultaneous or switchable operation between Zigbee and Matter-over-Thread
• Compatible with Zigbee2MQTT, ZHA, and OpenThread Border Router
• Advanced connectivity
• USB-C for power and data
• Ethernet port for fast and stable communication
• Simplified firmware update and management
• Firmware updates via an intuitive web interface
• Native support for TI Z-Stack and Silicon Labs firmwares
• Security and flexibility
• Support for VPN, encryption of communications, advanced network settings
• Accessible dashboard to manage connections and updates
• Robust and scalable design
• Compact and ventilated ABS case
• Wall mount and DIN rail for easy integration
• Dedicated LED indicators
• Independent indicators for each radio
• Clear display of connection and power status

Technical Specifications of the SLZB-MR1

• Radio Chips:
• Texas Instruments CC2652P7: Zigbee 3.0, Thread (Matter-over-Thread)
• Silicon Labs EFR32MG21: Zigbee 3.0, Thread (Matter-over-Thread)
• Connectivity:
• USB-C, Ethernet
• Compatible with Home Assistant, Zigbee2MQTT, ZHA, and OTBR
• Firmware:
• Updates via web interface
• Supports TI Z-Stack and Silicon Labs
• Power Supply:
• PoE or USB-C (5V DC)
• Max consumption 1.5W
