Akuvox - SIP Audio indoor monitor with Wifi and Bluetooth (Akuvox C312A White)

The Akuvox C312A is an indoor SIP audio monitor with touch keyboard. It is usually used in multi-bedroom houses where only audio communication is required. It also has a Linux operating system, built-in relay, Wi-Fi and Bluetooth.

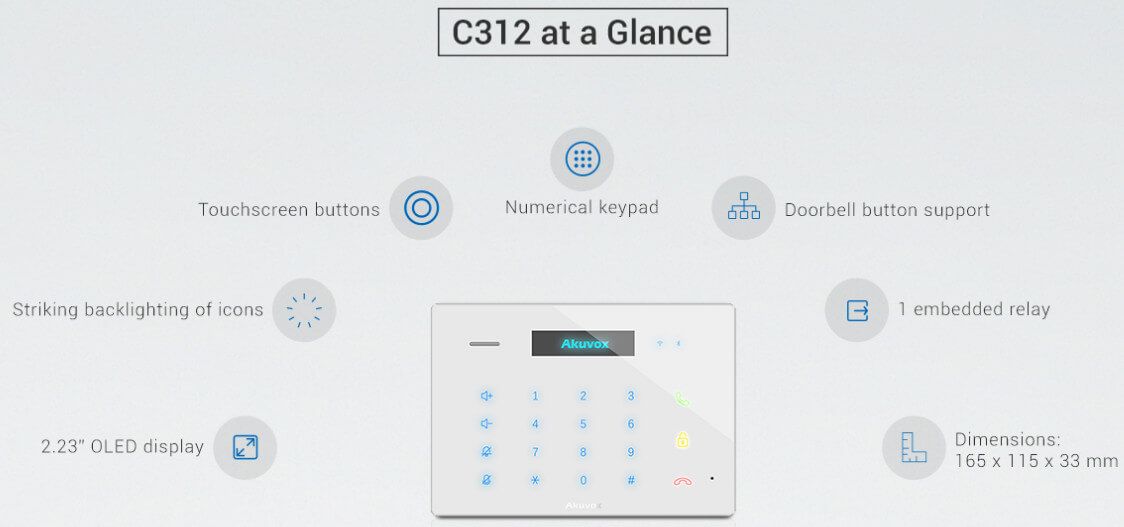

Its 2.23" OLED display will display, for example, the time, the caller number or the recipient number.

The Akuvox C312A monitor is the ideal complement to any Akuvox video doorman. It provides exceptional audio communication with the video doorman but also with possible other indoor consoles for room-to-room communication thanks to the SIP 2.0 protocol.

Connection to the network is via WLAN or network cable. If the indoor station is connected via a network cable, it can be powered by Powered over Ethernet (PoE). In the event of an Internet failure, all functions of the indoor station and the Akuvox door stations connected to it are retained in the local network.

The Akuvox C312A delivers the ultimate experience thanks to its comprehensive features and a neat, discreet design.

Particularly well equipped, the Akuvox C312A features Bluetooth, Wi-Fi, integrated relay, and RS485 connection.

It can be fixed to the wall.

Premium-Quality Audio

Residents will appreciate the opportunity to chat and see visitors ringing at the door before allowing them to enter the building. Premium audio quality ensures clear exchanges.

Integrated SIP Server

With its integrated SIP server, the Akuvox C312A offers phone calling functions, such as room-to-room calls.

TECHNICAL CHARACTERISTICS

General information

• Case: plastic
• RAM: 64MB
• Flash: 128MB
• Screen: 2.23" OLED
• Relay outputs: 1
• Doorbell input: 1
• I/O: 8
• Network port: 1xRJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• 12V DC power supply (if not PoE powered)
• Installation: Wall
• Dimensions: 165x115x33mm
• Operating humidity: 10~90%
• Operating temperature: 0°C ~ +45°C

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: PCMA, PCMU, G.729
• Wideband audio code: G.722
• Echo cancellation. VAD, CNG
• Full-Duplex

Network and protocol

• Protocols supported: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment and maintenance

• Self-sufficient
• Web management portal
• Provision of packages on the web Backup/restore configuration
• Export of entry logs
• Export /import access table
• Firmware update
• System logs (including door access logs)
