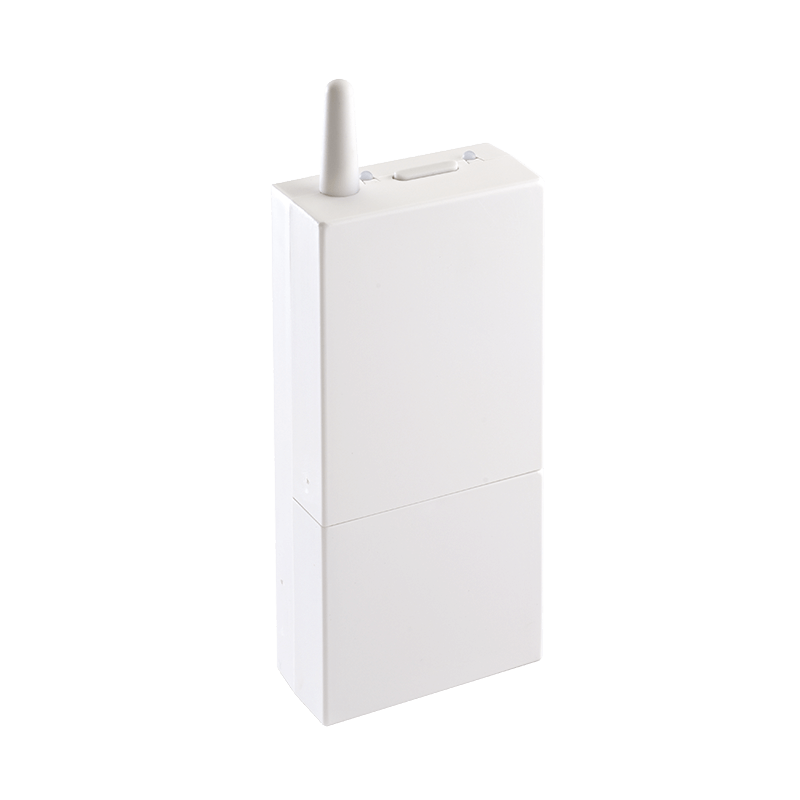

Delta Dore RF 6050 Plus - GENERAL PRESENTATION

The Delta Dore RF 6050 Plus is a radio receiver designed for wireless control of thermal installations. This device allows remote control of heating, air conditioning, or ventilation equipment by integrating into Delta Dore regulation systems.

KEY FUNCTIONS

• Thermal regulation: The RF 6050 Plus integrates a PID (Proportional Integral Derivative) regulation that analyzes temperature deviations to adjust the operation of the installation. This function optimizes energy consumption while maintaining the set temperature.
• Control modes: The device offers 3-mode control (Heat/Cool/Off), suitable for heating, air conditioning, and ventilation systems. The ON/OFF mode is suitable for basic equipment, while the PID mode adapts to more sophisticated installations.
• Energy-saving functions: Automatic open window detection triggers a temperature drop to limit energy losses. The start anticipation function, via a connected box, allows reaching the desired temperature at scheduled times.
• Radio communication: The Delta Dore X3D protocol ensures encrypted communication on the 868 MHz band. The announced range is 300m in open field and 100m in standard residential usage conditions.
• Compatibility and scalability: The RF 6050 Plus integrates into the Delta Dore ecosystem and is compatible with Tybox 5101 and Tywell Control thermostats. It can be extended via Tydom boxes to allow control from a smartphone.

​​​​​​​

TECHNICAL CHARACTERISTICS

Electrical Specifications

Power supply: 230V AC mains
Standby consumption: 0.06W
Control output: Dry contact CRT 5A max 230VAC
Connection: Screw terminal

Dimensions and Installation

Format: H 140 x W 54 x D 25 mm
Installation: Surface mounting by screwing or gluing
Location: Near the equipment to be controlled
Protection: IP40

Radio Performance

Frequency: 868 MHz
Transmission power: Range: 300m in open field / 100m in standard environment
Network capacity: Up to 32 receivers per zone

Compatibilities

Compatible thermostats:

• Tybox 5101
• Tywell Control (required for operation)

Possible extensions:

• Home automation box Tydom and Tywell (smartphone control)
• MDO Tyxal+ opening detectors
• Atlantic equipment via Typass ATL gateway

Usage Conditions

Operating temperature: -5°C to +40°C
Use: Indoor only
Regulation range: 10 to 30°C
Certification: CE
Warranty: 5-year manufacturer warranty

Installation

The RF 6050 Plus does not require wiring between the thermostat and the receiver. Pairing is done via push-button and the operating status is indicated by LED indicators.
