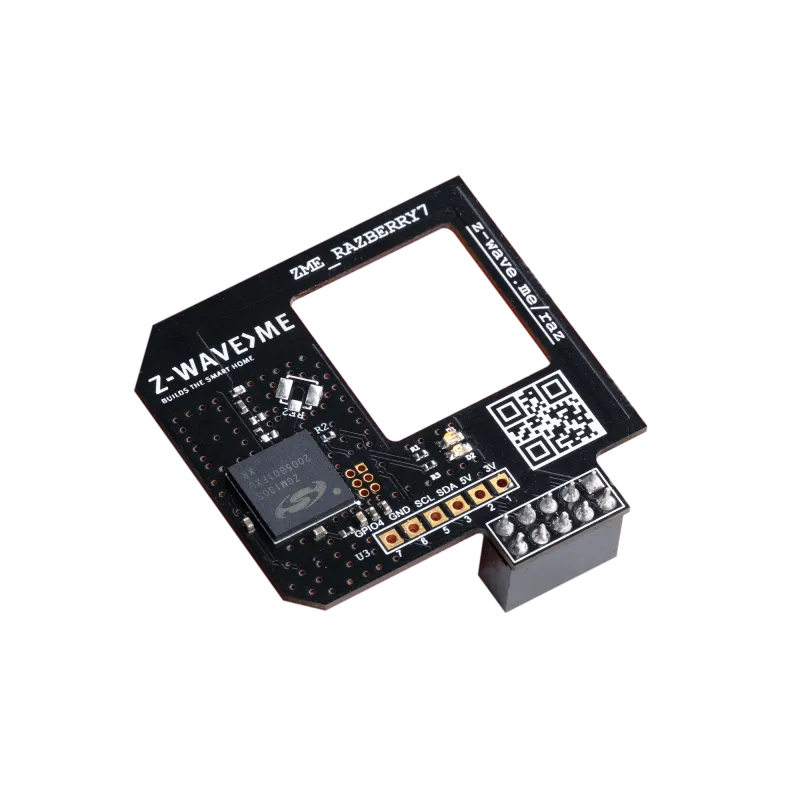

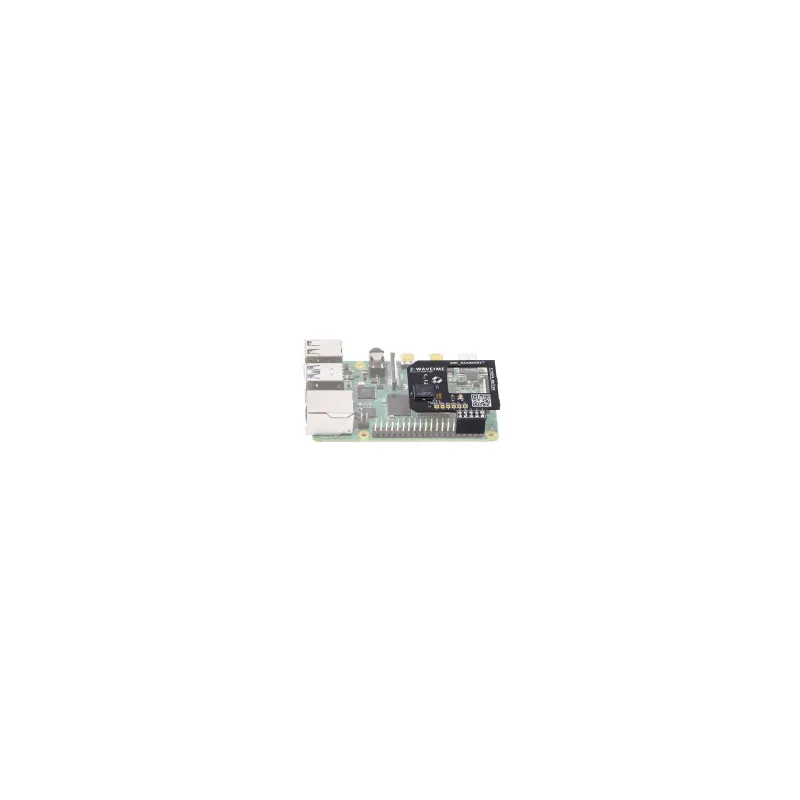

The RaZberry 7 from Z-Wave.Me is a daughterboard for the Raspberry Pi, turning it into a Z-Wave controller. The board is Raspberry Pi 1/2/3A/3B/3A+/3B+/4B compatible, and can even be connected to an Orange Pi.
The RaZberry 7 works with open source projects such as Home Assistant, OpenZWave, OpenHAB, FHEM and Domoticz. There are no additional or monthly fees, as the price of the RaZberry 7 includes all required licenses.
The RaZberry 7 from Z-Wave.Me guarantees extended transmission range thanks to : 7th-generation Z-Wave chip
First-class firmware that uses all the latest hardware capabilities such as adjustable transmission power
FUNCTIONS :
- Razberry 7 for Raspberry Pi with PCB antenna
- Designed with the Z-Wave 700 series - longer range, more efficient and better performance than older-generation series
- Wireless technology: Z-Wave Plus V2 - SmartStart - S2 Security
- Compatible with Raspberry Pi 1/2/3A/3B/3A+/3B+/4B and Orange Pi
- Works with Home Assistant, OpenZWave, OpenHAB, FHEM and Domoticz
- Extended transmission range
TECHNICAL SPECIFICATIONS :
- Module type: Z-Wave+ controller
- Z-Wave chipset: Silicon Labs ZGM130S
- Power supply: Via Raspberry Pi GPIO
- Frequency: 868.42 Mhz
- Wireless range: Min. 40 m indoors in open space
- LED indication: Red: Inclusion and Exclusion mode. Green: Sending data.
- Interface: TTL UART (3.3 V) compatible with Raspberry Pi GPIO pins
- Dimensions: 41 mm x 41 mm x 12 mm
- Weight: 16 g
Specifications
| Type | Accessories for Smarthome gateways Accessory Gateways/Antennas |
|---|---|
| Protocol | Z-Wave Serie 700 |
-
