Sunricher SR-ZG9002K16-PRO - Smart Zigbee 3.0 wall panel with 16 customizable buttons

Zigbee 3.0 smart wall panel with 16 customizable buttons

The Sunricher SR-ZG9002K16-Pro is a smart wall panel powered by a battery that follows the ZigBee 3.0 standard and features 16 fully customizable push buttons. Each button function can be customized via the "Azoula Smart" app. Compatible with third-party platforms such as Home Assistant and Homey, this remote connects to a ZigBee network and can be paired with compatible ZigBee devices via a ZigBee hub or controller. It supports controlling a wide range of devices, including lighting, curtains, fans, air conditioners, sensors, and much more.

Smart and customizable control

The SR-ZG9002K16-Pro offers maximum flexibility with its 16 fully programmable buttons. Through the Azoula Smart app, you can customize each button to control individual devices, entire areas, or predefined scenes. Each button supports three types of actions:

• Short press : Instant action
• Long press : Extended action (gradual variation, continuous opening/closing)

Double-click : Quick activation of a scene or alternative action

Easy and versatile installation

With its standard 86×86mm format, the panel fits perfectly into standard European wall boxes (the provided bracket has screw holes at the top, bottom, left, and right, whereas for a Swiss box these holes would need to be in the corners). Refer to the diagrams in the attached manual for more information.

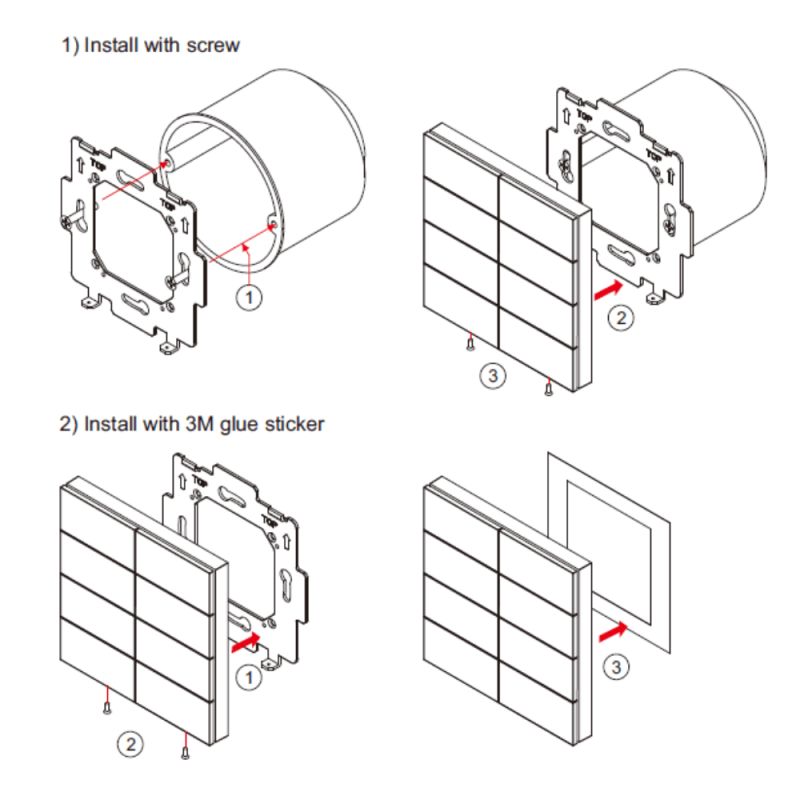

Two installation methods are possible:

• Screwed assembly : Permanent fixation with screws provided
• Adhesive installation : Quick attachment with 3M double-sided adhesive (included)

Powered by two CR2032 batteries, it ensures exceptional battery life due to the low consumption of the Zigbee protocol. 3.0. A red LED indicator confirms the status of the remote control during pairing.

Extended compatibility

The SR-ZG9002K16-Pro is compatible with:

• Azoula Smart (proprietary application)
• Home Assistant via Zigbee2MQTT or ZHA
• Homey
• All ZigBee 3.0 hubs Universal

This universal compatibility allows the panel to be integrated into virtually any ZigBee-based smart home system. 3.0.

Multi-target control

The panel allows for control:

• Individual devices : Lights, outlets, dimmers
• Zones : Groups of devices in the same room
• Scenes : Predefined atmospheres combining multiple devices
• Quick checks : Direct access to favorite functions

Technical specifications

General information

• Model : SR-ZG9002K16-Pro
• Protocol : ZigBee 3.0
• Frequency : 2.4 GHz
• Transmission range : 30m (in open water)
• Food : 6VDC (2× CR2032 batteries)
• Consumption : Ultra-low thanks to the ZigBee mesh network
• Protection index : IP20

Physical characteristics

• Dimensions : 86×86×20.5mm
• Format : Standard 86×86mm (compatible with European enclosures)
• Number of buttons : 16 customizable push buttons
• LED indicator : Red light for the status

Features

• Types of actions : Short press, long press, double-click
• Controls : Devices, zones, scenes, quick controls
• Installation : Wall mounting with screws or 3M adhesive

Compatibility

• Azoula Smart Application (iOS/Android)
• Home Assistant (via Zigbee2MQTT/ZHA)
• Homey
• All universal ZigBee 3.0 hubs

Package contents

• 1× Wall panel SR-ZG9002K16-Pro
• 2× CR2032 batteries (pre-installed)
• Fixing kit (screws)
• 3M double-sided adhesive
• Quick Start Guide
