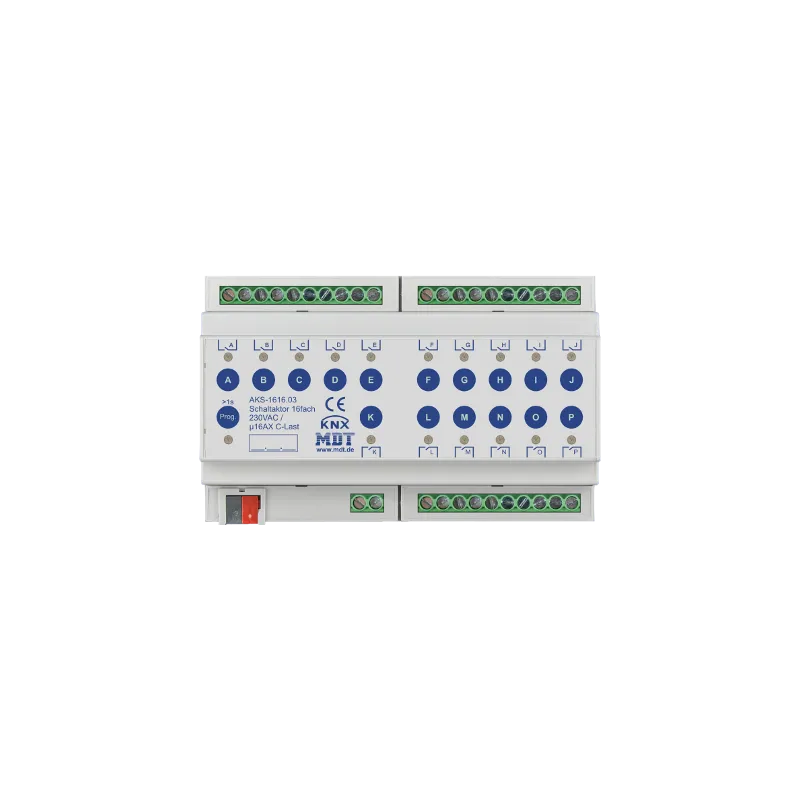

MDT - Switch Actuator 16-fold, 8SU MDRC, 230VAC, 16A, C-Load 140uF

Description

The MDT Switch Actuator receives KNX/EIB telegrams and switches up to 24 independent electrical loads. Each output
uses a bistable relay and can be manually operated by a push button. A green LED indicates the switching status of each
of each channel. The MDT switching actuator is suitable for high inrush currents and used for heavy loads (C-Load).
The outputs are individually parameterised via ETS. The device offers extensive functions such as logic operation, status
block functions, central function, delay functions and staircase lighting function. In addition, the device allows various time and scene controls. In the event of a bus voltage failure, all outputs retain their current position. After the bus voltage has failed or has been restored, the relay position
or restoration, the relay position is selected according to the parameterisation.

Function

• Space-saving design
• Comprehensive application
• Lockable manual operation and LED indicator for each channel
• NO and NC contact operation
• Status response to manual control
• Time functions (switch-on and switch-off delay, staircase lighting functions)
• Extended logic and scenic functions for each channel
• Extended status functions (inverted, cyclic, block)
• Threshold switch (byte/2 byte/2 floating byte)
• Time counter for switching
• Priority/forced operation with automatic switch-off time
• 4mm² / 2x2.5² screw terminals. Separate supply phases
• Power supply via KNX bus
• Quick application download (long frame support for ETS5)
• 3-year warranty

Technical Specifications

• Number of outputs 16
• 16A resistive load
• Capacitive load 140uF
• Voltage 230VAC
• Maximum inrush current 600A/150µs
• 250A/600µs
• Maximum load
• Incandescent lamps 2500W
• Halogen lamps 230V 2500W
• Halogen lamps, electronic transformer* 1500W
• Fluorescent lamps, non-compensated 2300W
• Fluorescent lamps, parallel comp. 1500W
• Max. number of electronic transformers 20
• Output lifetime (mechanical) 1,000,000
• Max. total actuator current 128A
• Specification KNX interface TP-256 with long frame bracket for ETS5
• Application software available ETS 4/5
• Permitted wire size
• Screw terminal 1 x (0.5 - 4.0mm²)
• 2 x (0.5 - 2.5mm²)
• KNX bus terminal 0.8mm Ø, solid core
• Tightening torque of the screw terminal 0,5Nm
• KNX bus power supply
• KNX bus power consumption typ. < 0,3W
• Operating temperature 0 to + 45°C
• Enclosure IP 20
• Dimensions MDRC (space units) 8SU
