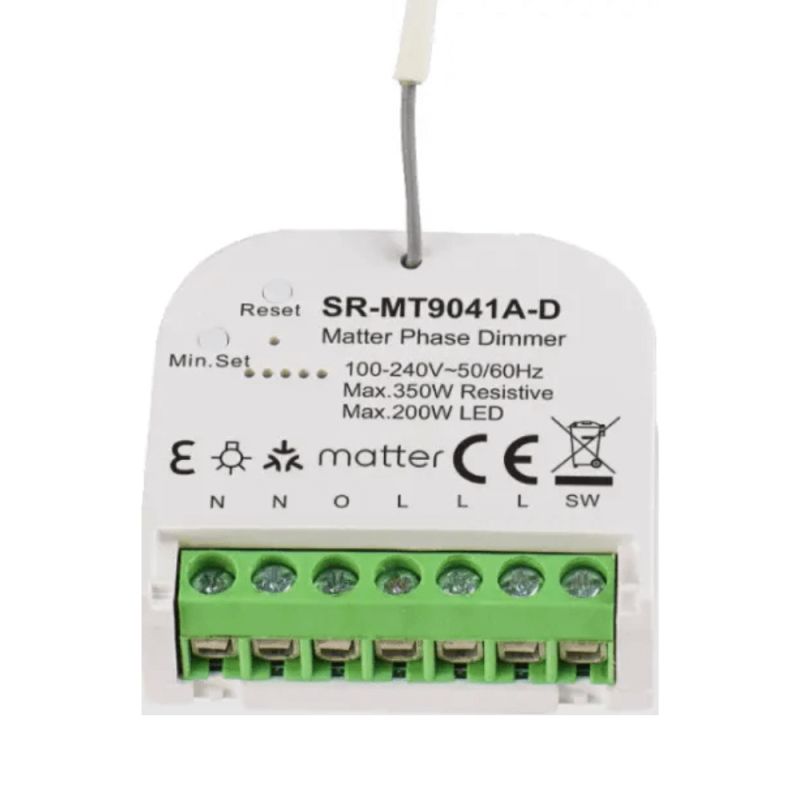

Sunricher SR-MT9041A-D - Smart Micro-Dimmer Dual Technology Matter over Thread + Zigbee 3.0
The Sunricher SR-MT9041A-D is a versatile AC phase-cut micro-dimmer that combines Matter over Thread and Zigbee 3.0 technologies.
Smart micro-controller dual technology Matter over Thread + Zigbee 3.0
The Sunricher The SR-MT9041A-D is a versatile AC phase-cut dimmer that combines Matter over Thread and Zigbee technologies. 3.0. Compatible with resistive, capacitive, and inductive loads, it offers a wide input and output voltage range of 100-240VAC. With a 1-channel output up to 250W and secure screw terminal connections, this ultra-compact dimmer easily installs in a standard wall box. Certified Matter and Thread, it integrates seamlessly with Apple Home, Amazon Alexa, and Google Home ecosystems, while offering voice control via Siri, Google Assistant, and Alexa.
Dual Matter + Zigbee technology for maximum compatibility
The SR-MT9041A-D combines the advantages of two communication protocols:
- "Matter over Thread" : Native integration with Matter ecosystems (Apple Home, Google Home, Amazon Alexa)
- Zigbee 3.0 : Compatibility with Zigbee remote controls and Green Power kinetic switches
This dual technology ensures maximum flexibility and future scalability of your home automation system.
Multi-platform smart control
The variator offers several control modes:
- Control via application : Via Matter (Apple Home, Google Home, Amazon Alexa)
- Voice control : Compatible with Apple Siri, Google Assistant, Amazon Alexa
- Zigbee remote controls : Direct pairing via Touchlink without coordinator
- Green Power kinetic switches : Operates without batteries or wiring
- Classic switches : Momentary or toggle
Advanced variation features
The SR-MT9041A-D integrates smart technologies for an optimal lighting experience:
Intelligent light source detection
An advanced algorithm automatically detects the type of connected load and adjusts the parameters accordingly for optimal performance.
Power and energy measurement
Real-time monitoring of electricity consumption for efficient energy management and energy savings.
Soft Start function
Extend the lifespan of light bulbs by avoiding electrical shocks at startup.
Setting the minimum level of variation
Allows you to set a minimum brightness level suitable for your light sources. Some dimmable LEDs cannot go below a certain threshold - this function prevents flickering.
Startup brightness setting
Sets the initial brightness level when the lighting is turned on. This is particularly useful to prevent certain dimmable LED drivers from failing to turn back on after being dimmed to a very low level.
Flexible installation with or without neutral
The variable speed drive can operate in two ways:
- Three-wire connection (with neutral) : Standard installation for all loads
- 2-wire connection (without neutral) : Simplified installation for renovation
Important for installation without a neutral : The dimmer requires a minimum load of 20W @ 240VAC to function properly. If the connected load consumes less, a Bypass module (accessory sold separately) is necessary.
Extended compatibility with different types of loads
The SR-MT9041A-D supports a wide range of loads:
| Type of load | Maximum power | Remarks |
|---|---|---|
| Dimmable LEDs | 200W @ 230V 100W @ 110V |
The maximum number depends on the power factor. |
| Dimmable LED drivers | 200W @ 230V 100W @ 110V |
Maximum number = 200W ÷ rated power of the driver |
| Incandescent lamps, HV halogens | 250W @ 230V 125W @ 110V |
Compatible with all brands |
| Low voltage halogens with electronic transformers | 200W @ 230V 100W @ 110V |
Check the compatibility of the transformer |
Ultra-compact format
With its dimensions of only 42×38×16mm, the SR-MT9041A-D easily fits into standard wall-mounted enclosures, even in the tightest spaces. Its mini format makes it ideal for renovating existing installations.
Technical specifications
General information
- Model : SR-MT9041A-D
- Protocols : Matter over Thread + Zigbee 3.0
- Certifications : Matter certified, Thread certified
- Input voltage : 100-240VAC, 50/60Hz
- Output voltage : 100-240VAC
- Output current : 0.1-1.1A
- Number of channels : 1
- Maximum power : 250W (resistive loads), 200W (LED)
- Type of variation : Trailing edge
- Protection index : IP20
Physical characteristics
- Dimensions : 42×38×16mm (L×W×H)
- Format : Ultra-compact, installation in a flush-mounted box
- Connections : Secured screw terminals
- Cable beach : Standard electrical installation cables
Intelligent features
- Microprocessor control : Advanced and precise management
- Automatic detection : Intelligent recognition of the type of load
- Power measurement : Active consumption and energy
- Gradual start-up : Protection of light sources
- Minimum adjustable level : Avoid LED flickering
- Startup brightness : Configurable according to needs
Installation methods
- 2-wire installation : Without neutral (minimum load 20W @ 240VAC)
- 3-wire installation : With neutral (recommended)
- Bypass : Expansion unit available (separate accessory)
Compatibility
- Subject Apple Home, Google Home, Amazon Alexa
- Voice command : Siri, Google Assistant, Alexa
- Zigbee : Remote controls via Touchlink, Green Power switches
- Switches : Momentary, toggle, etc.
- Thread Border Router : Required for Matter (e.g., HomePod mini, Google Nest Hub)
Package contents
- 1× SR-MT9041A-D Dimmer
- Integrated screw terminals
- QR code for Matter pairing
- Quick Start Guide
