NICE DoubleDimmer-Control - Z-Wave+ dual channel dimmer
New
CHF71.90
Tax included
The Double Dimmer-Control is a dual-channel dimmer designed to control two independent lighting circuits with high precision. It offers smooth management of light intensity, simple integration into your electrical installations, and ensures reliable and safe operation, ideal for optimal lighting comfort.
In stock. Ordered before 5 PM, delivered the next business day.
Introduction

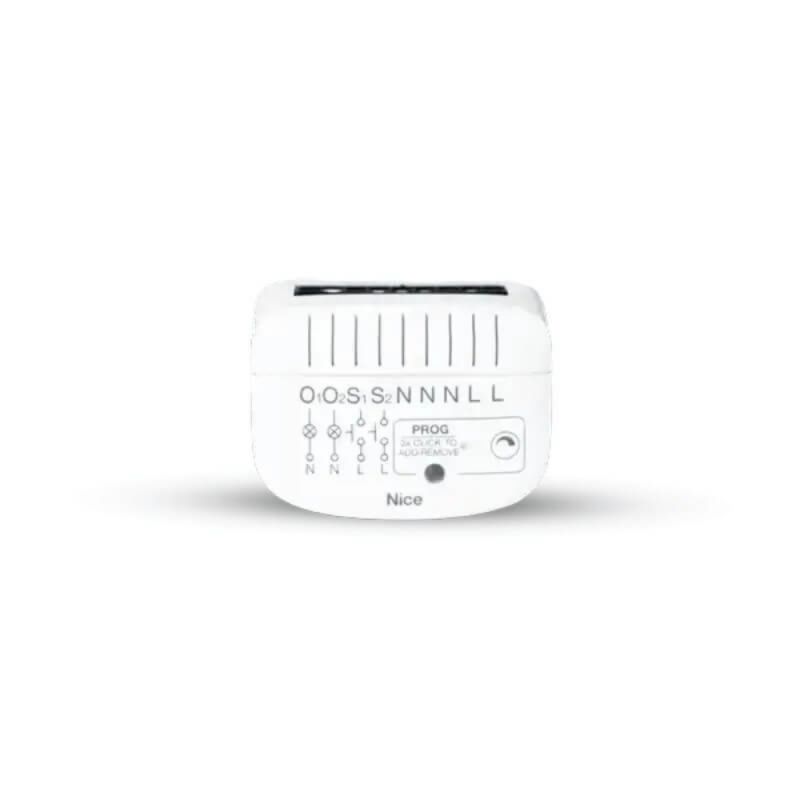

The DoubleDimmer-Control is a smart dual-channel Z-Wave module designed to control and adjust the light intensity of two independent lighting circuits. Encased in a compact format, it easily installs in standard wall boxes, allowing modern LED lighting systems to be integrated into a Z-Wave 800 home automation network with increased range and enhanced security.
Key Features

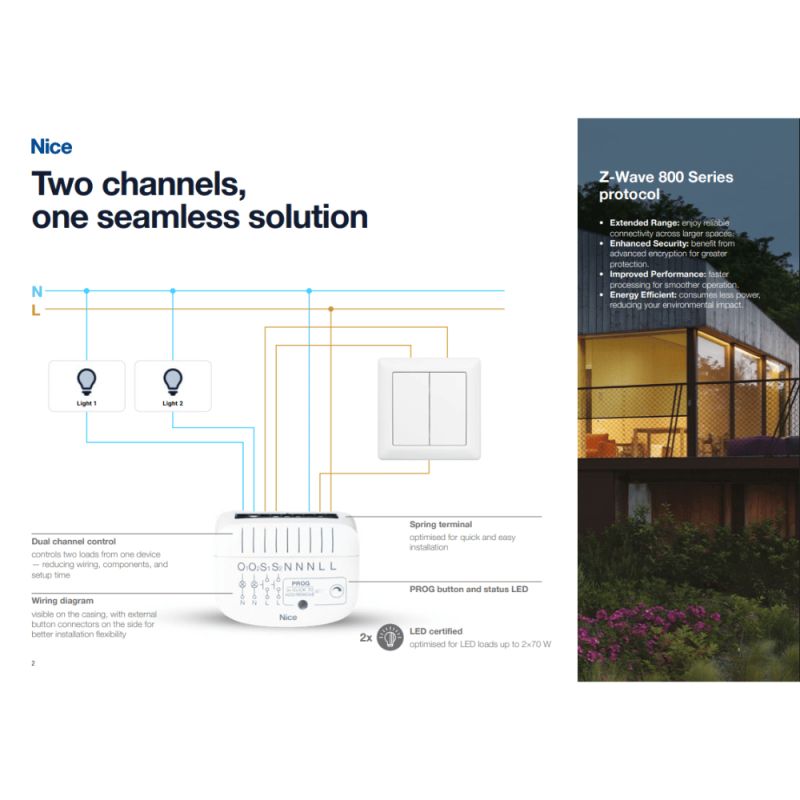

- Independent dual channel: Enables control of two separate lighting circuits or combining outputs for a higher load (2 × 70 W LED or 1 × 140 W combined).
- Dimmer or switch: Functions as both a dimmer and a switch, compatible with momentary or toggle switches.
- Z-Wave 800 with SmartStart and AES-128 security: Offers extended radio range, more reliable connection, and a higher level of security.
- Automatic calibration: Automatic detection of load type and calibration for precise brightness adjustment.
- Real-time measurement and monitoring: Measures voltage, current, power, and energy consumption, with data sent to the home automation controller.
- Built-in protection: Protection against overheating, overload, and voltage drops for optimized safety in use.

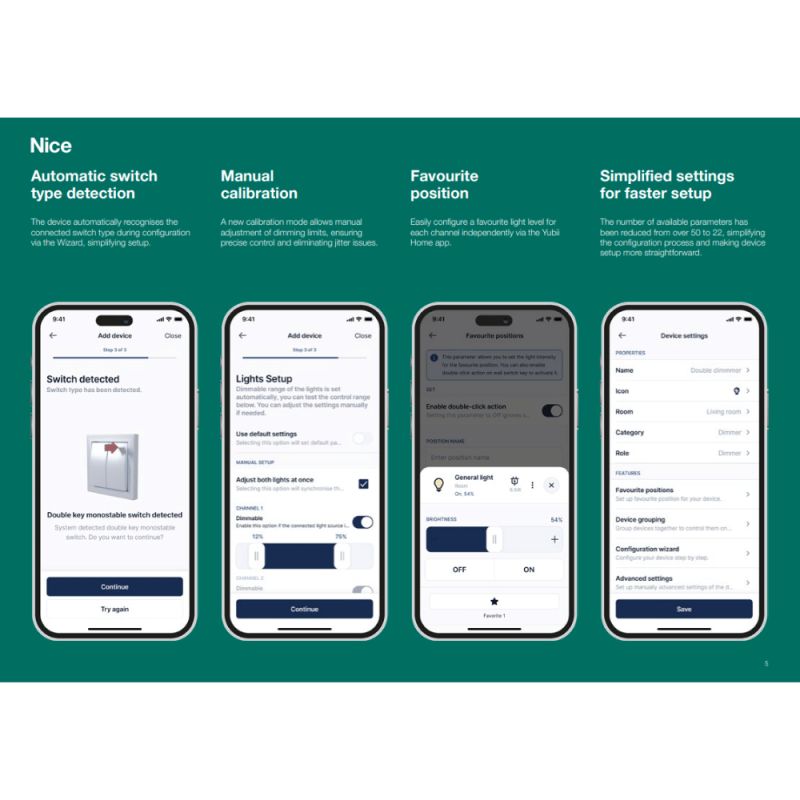

- Simplified configuration: Quick installation with spring terminals, preferred brightness level setting per channel, and last level memory.

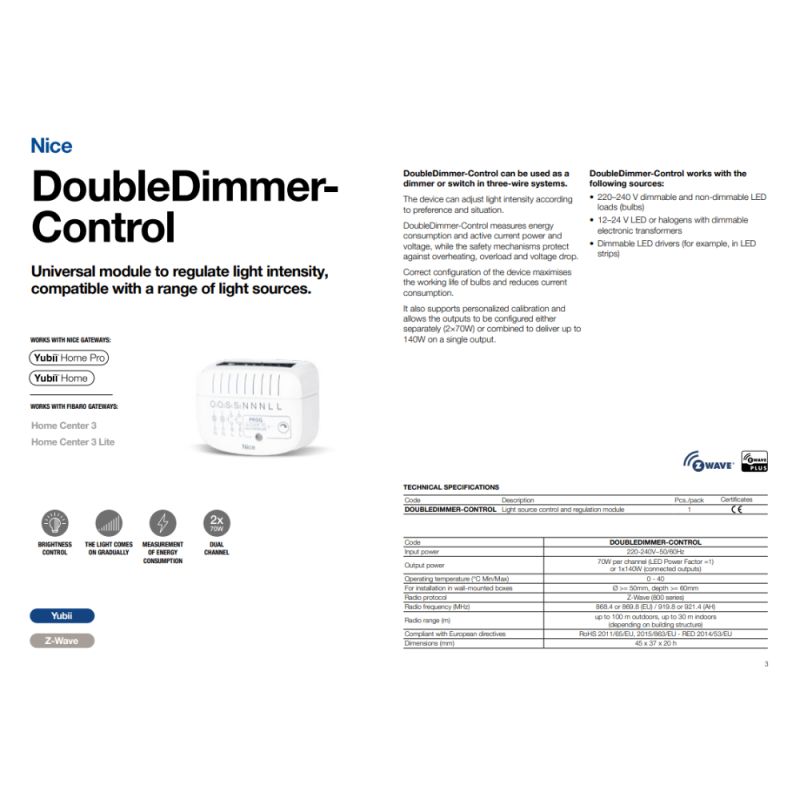

Technical Specifications
- Radio protocol: Z-Wave 800 series (Z-Wave Plus compatible)
- Power supply: 220–240 VAC, 50/60 Hz
- Outputs: 2 × 70 W LED or 1 × 140 W combined
- Operating temperature range: 0 °C to 35 °C
- Operating humidity: 10–95% non-condensing
- Dimensions: 45 × 37 × 20 mm
- Installation: Recessed in boxes Ø ≥ 50 mm, depth ≥ 60 mm
- Compatibility: Compatible with home automation controllers such as Yubii Home, Home Center 3, and Home Center 3 Lite
