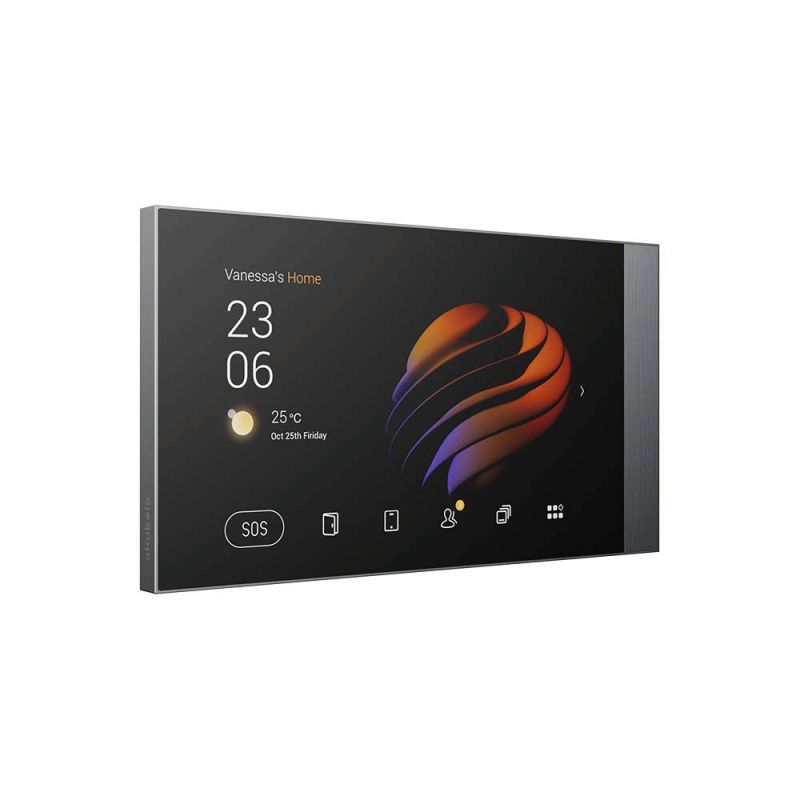

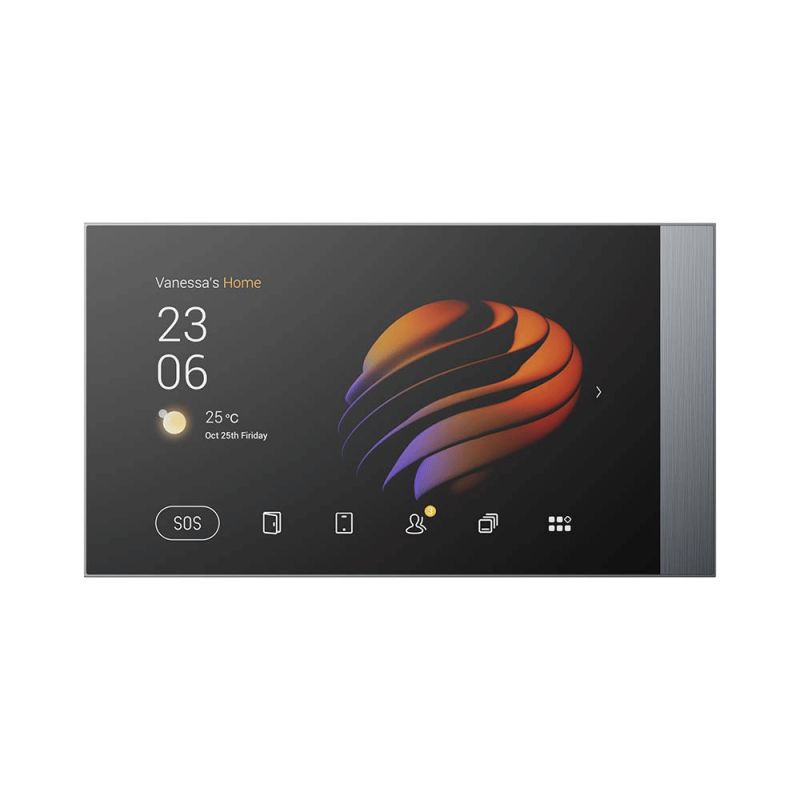

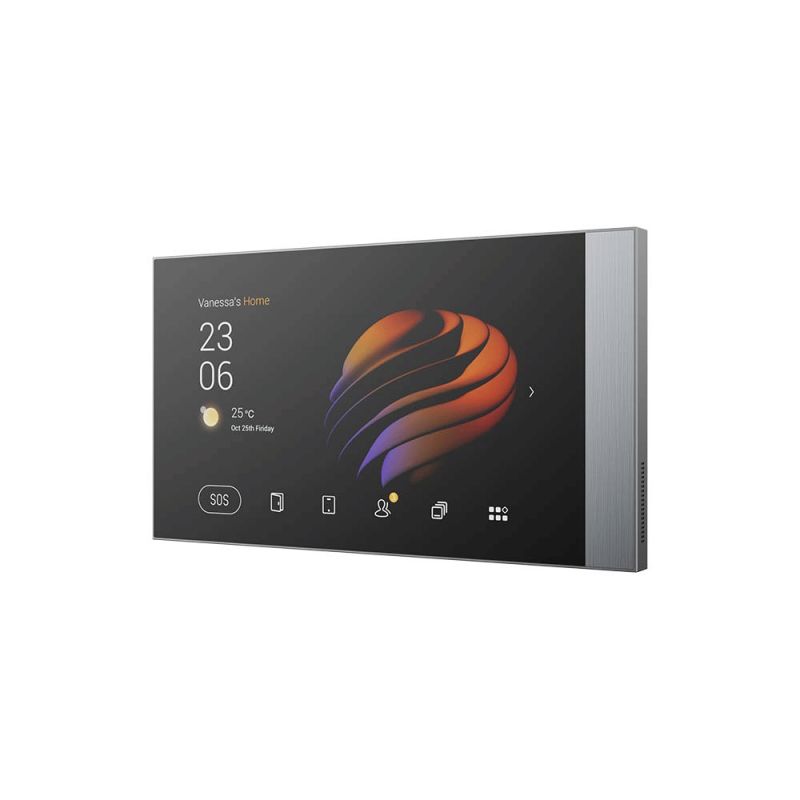

Akubela HyPanel Pro PG71-R2-EU - All-in-one smart control panel
The Akubela HyPanel Pro is an 8-inch smart control panel with the Android 10 operating system. The ALL IN ONE design integrates a smart intercom, a ZigBee gateway, and is compatible with a wide range of home automation ecosystems. It supports infrared remote control, smart control of traditional household appliances, for an uncompromised smart home experience.
Main Features
- 8-inch touchscreen
- Android 10
- Wifi, Bluetooth, and RJ45
- Two built-in relays to control 2 lamps or devices
- Zigbee 3.0 to control compatible accessories
- Built-in infrared transmitter
- Equipped with proximity, light, temperature, and humidity sensors
- Receive calls from Akuvox door stations
- Digital photo frame function
- Alarm clock and timer function
- Room-to-room communication between HyPanel switches
- Send text or voice messages
As an official Akuvox supplier, we have the ability to offer a 5-year warranty on this product. Choose the 2-year or 5-year warranty below.
Unified Control Solution for Your Smart Home
Imagine a command center for your entire smart home, seamlessly integrating intercoms, security systems, automation controls, and environmental monitoring - this is the power of the HyPanel Pro. This innovative touch panel features an 8-inch screen with exceptional performance, making it the heart of your connected living space.
The HyPanel Pro goes beyond just controlling devices. With a single touch, you can manage entire groups of devices, simplifying complex routines and enhancing convenience. No more juggling multiple apps and controllers: with the HyPanel Pro, everything is at your fingertips. Thanks to its built-in Zigbee chip, the HyPanel Pro can wirelessly communicate with compatible Zigbee modules or sensors. This radio technology is ideal for making your home smart without the need for construction work.
But that's not all, as several third-party solutions are also compatible with the HyPanel, such as Alexa, Siri, Google Home, Fibaro, Aqara, Somfy, Ikea, Aqara, Sonos, Dahua, Ring, TP-Link, Lutron, Yeelight, Yale, etc.
Make Your Traditional Devices Smart
But the HyPanel Pro doesn't stop at smart devices. Its built-in infrared control brings traditional devices to life, turning them into a smart home ecosystem. This innovative feature allows you to control everything from your television to your ceiling fan via the HyPanel Pro interface.
An Elegant and Premium Addition to Modern Homes
The brilliant 8-inch touch screen, combined with an ultra-thin frame, offers a visually stunning display when the screen lights up. The all-metal body and decorative metal strip enhance the aesthetic of the Pro.
Extended Capabilities with a Modular Design
Akubela's modular design approach separates the covers of residential control panels from their base modules. This allows the Pro to work with different functional embedded modules and is compatible with electrical boxes from various countries.
Energy Management for a Greener Life
With a built-in electricity meter and temperature and humidity sensors, Akubela’s HyPanel Pro also serves as an intelligent home energy management system. It allows you to monitor your home's energy consumption and make adjustments to minimize your environmental impact.
Technical Specifications
Basic Information
- Model Number: PG71N-R2-EU
- Power Supply: 180~260VAC, 50Hz
- Output: 2 gangs, 1200W total; 800W/gang for resistors; 400W/gang for LED/CFL
- Operating System: Android 10
- RAM/ROM: 2GB/16GB
- Wi-Fi: IEEE802.11 b/g/n, @2.4GHz/5GHz
- Bluetooth: Bluetooth 4.2
- Ethernet Ports: 1xRJ45, 10/100Mbps adaptive
- ZigBee: ZigBee 3.0
- Infrared Remote Control: Supported
- Microphone: Dual microphone, -38DBV
- Speaker: Single speaker, 6Ω/1.8W
Appearance
- Material: Metal
- Screen: 8” multi-touch screen, hydrophobic anti-pollution and anti-fingerprint coating
- Screen Resolution: 1280x800 pixels
- Screen Brightness: 310 cd/㎡
Built-in Sensors
- Proximity Sensor: 30 ~ 60cm
- Light Sensor: Low lux level detection
- Temperature Sensor: ±1℃, range: -10℃~55℃
- Humidity Sensor: ±5%, range: 10%~90%RH, non-condensing
Working Environment
- Environment: For indoor use only
- Operating Humidity: 10%~90%RH, non-condensing
- Operating Temperature: -10℃~ 55℃
- Storage Temperature: -20℃~ 70℃
Installation
- Installation: Wall-mounted recessed installation
- Embedded Module: EU/UK standard
- Wiring Mode: L- + N- wire required
Application Scenario
- Villas
- Apartment Complexes
- Home Automation Systems
- Modern Interiors
Specifications
| Protocol | Bluetooth IP IR Zigbee |
|---|---|
| Type | Remote Control Screens for intercoms Switch |
| Function | Access Control Actuator Electricity Consumption Humidity Luminosity Multifunction Temperature |
| Gateway compatibility | Fibaro Home Center - partial compatibility Somfy Tahoma - partial compatibility |
| Camera by Resolution | 5MP (HD2560) |
| Use | Access Control/Intercom Fixture Control Lighting Control Temperature/Humidity/CO2 Monitoring |
| Wifi | Yes |
| POE | No |
| SD Card | No |
| Audio | Yes |
| Type of installation | In-Wall |
| Operating system | Android 10 |
| Screen size | 8" |
