Presentation

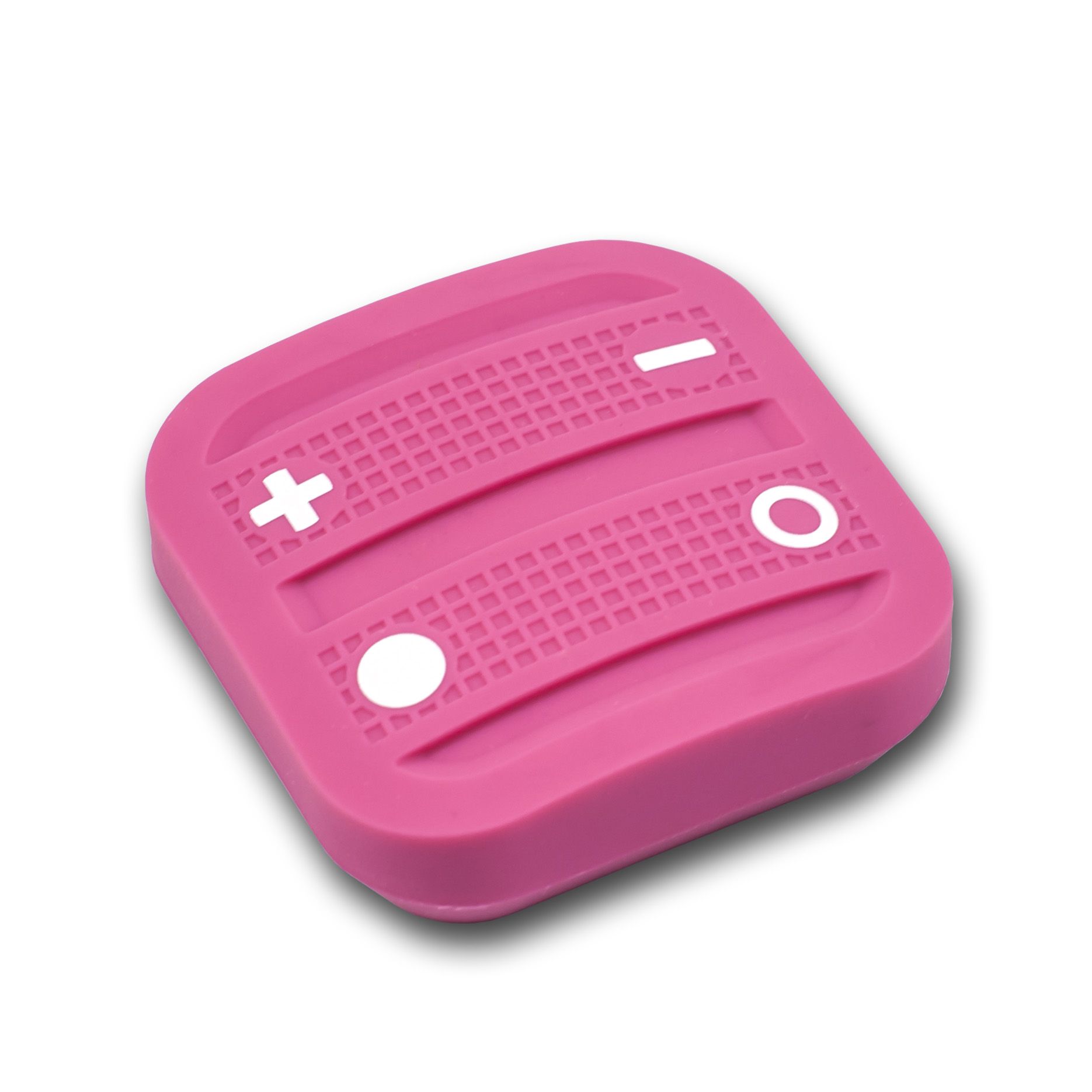

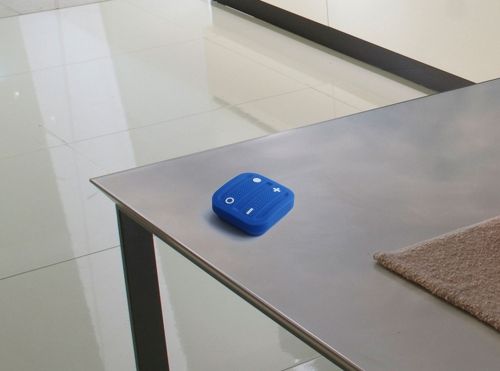

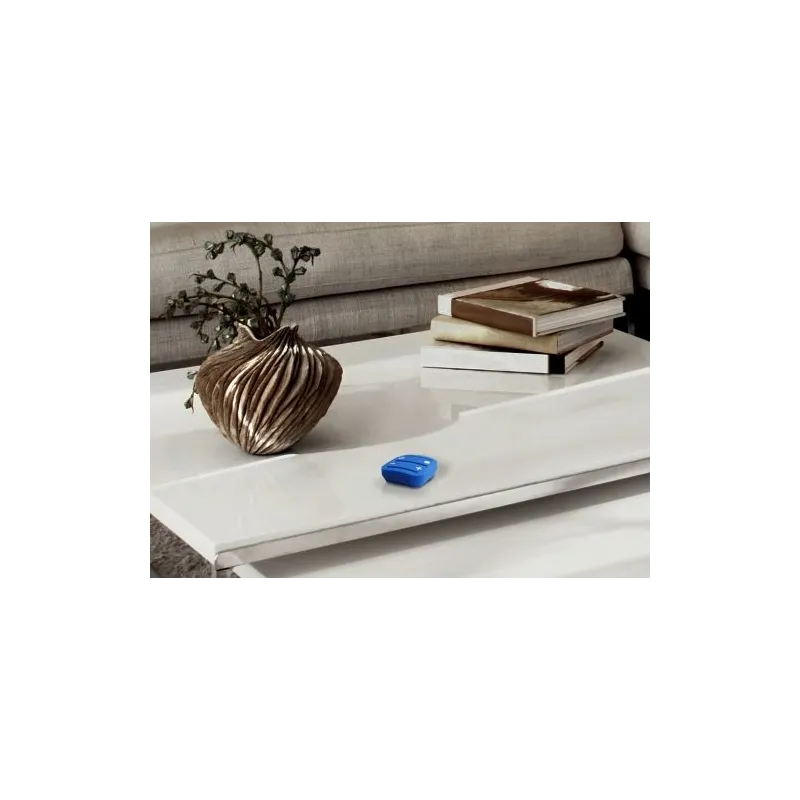

Soft Remote is a wireless and battery-less Enocean compliant remote control.
Mechanical energy created by pressing the button is transformed via a revolutionary magneto-resistive generator into enough electrical energy to send a radio message to the remote controlled device. Soft Remote enables the control of every EnOcean compliant device such as NodOn remote controlled Plugs or home automation systems.
Shock and splash resistant, Soft Remote can be used in every home environment.

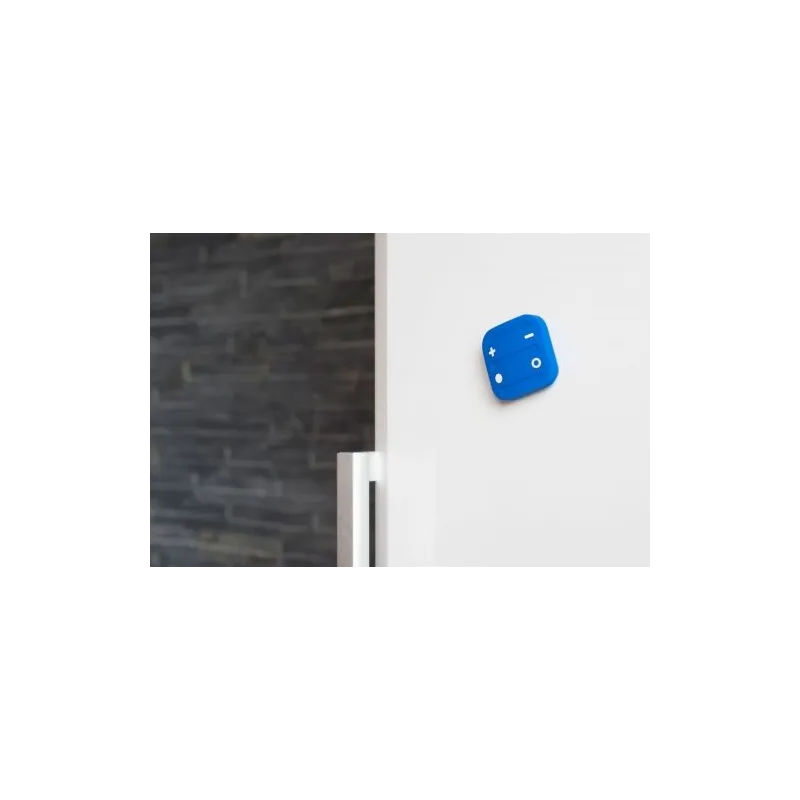

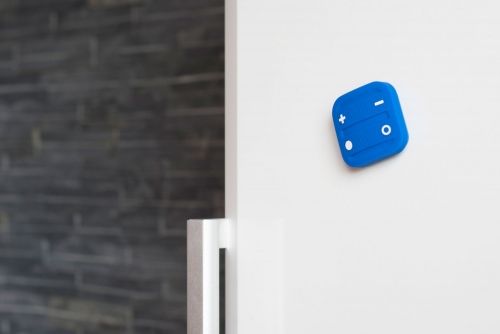

With its integrated magnet, it can be mounted anywhere, from the radiator to the refrigerator door.
Technical Data
- Power supply: Magneto-resistive (battery-less)
- 4 buttons (2 channels)
- Integrated magnet for mounting on metal surfaces
- Sock and splash resistant
- Working temperature: 0°C à 40°C - Altitude : 2000 m
- Radio EnOcean® protocol: 868.3 MHz - EEP: F6-02-01
- Range: 30 m indoor
- Dimension: 30 m indoor
- 3 year warranty
Standards
- EN 301489-1 V1.9.2; EN301489-3: V1.4.1
- EN 62479: 2011-9
- EN 60950-1:2006+A11:2009+A1:2010
- EN 300220-1: V2.4.1; EN 300220-2: V2.4.1
Specifications
| Protocol | EnOcean |
|---|---|
| Type | Remote Control |
| Gateway compatibility | eedomus+ - compatible via optional adapter |
| Use | Blinds/Gate Control Fixture Control Lighting Control Switches and Remote Control |
Guides
NodOn_CRC-2-6-0x_Datasheet_FR
NodOn_CRC-2-6-0x_Datasheet_FR_en
NodOn_CRC-2-6-0x_Datasheet_EN
NodOn_CRC-2-6-0x_Datasheet_EN_en
-
