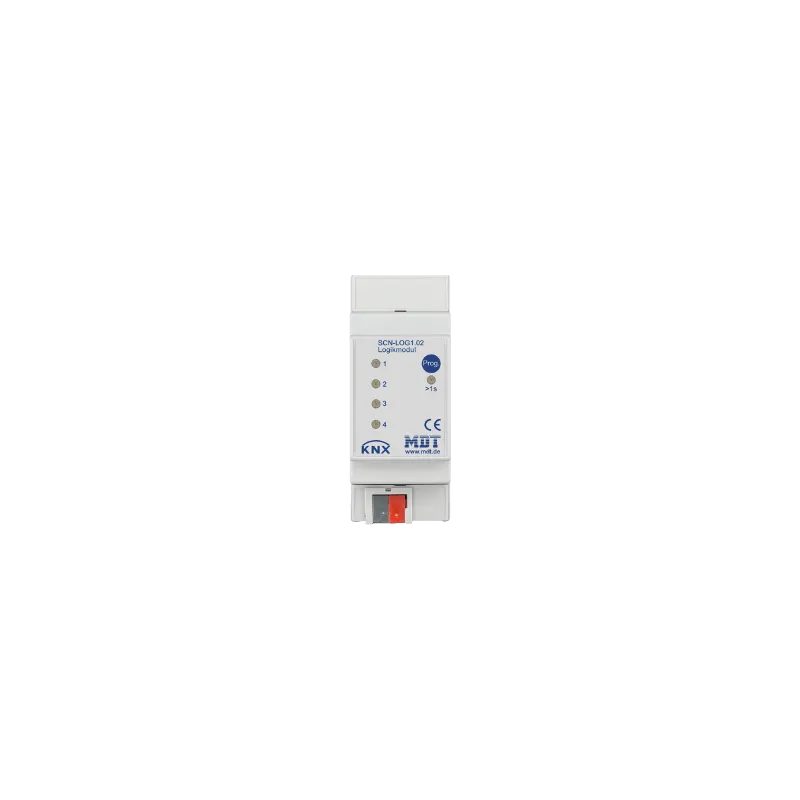

MDT - Logic Module, 2SU MDRC
Previous
Next
MDT - Logic Module, 2SU MDRC

MDT - Logic Module, 2SU MDRC

Out-of-Stock
CHF209.00
Tax included
Stock status: Out of stock
Out of stock

The IP Interface enables the communication between the PC and the KNX/EIB system via LAN.
The KNX IP Interface allows to programm the KNX bus via TCP/IP, 4 simultaneous connections possible.

Add to Cart
Out-of-Stock
Brand MDT SKU SCN-LOG1.02



The IP Interface enables the communication between the PC and the KNX/EIB system via LAN.
The KNX IP Interface allows to programm the KNX bus via TCP/IP, 4 simultaneous connections possible.


Features

  • To enable bidirectional communication between PC and the KNX bus TCP/IP
  • 4 simultaneous connections possible
  • Programming the KNX bus via TCP/IP
  • Power supply by KNX bus, no external bus power supply required
  • Encrypted transmission at sending emails
  • Time server functions to send time and date on the KNX bus
  • Firmware can be updated
  • Long frame support for ETS5
  • 3 years warranty​



Technical Specifications

  • Interface: Ethernet
  • Specification KNX interface: TP-256
  • Available application software: ETS 3/4/5 with long frame support for ETS5
  • Permitted wire gauge:
    • Screw terminal: 0,5 - 4,0mm² solid core 0,5 - 2,5mm² finely stranded
    • KNX busconnection terminal:  0,8mm Ø, solid core
  • Power Supply: KNX bus
  • Power consumption: < 0,8W
  • Operation temperature range: 0 to + 45°C
  • Enclosure: IP20
  • Dimensions MDRC (Space Units): 2SU

Specifications

Type Accessories for Smarthome gateways Gateways/Antennas Module
Protocol IP KNX
