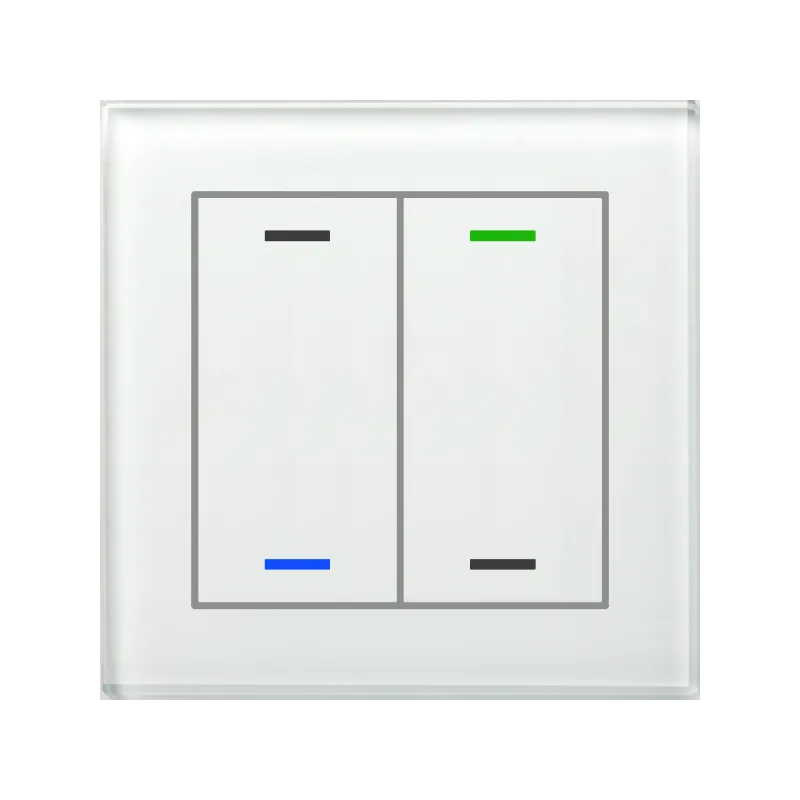

MDT - Glass Push Button II Lite, 2-fold, White, Version NEUTRAL, with temperature sensor

Description

Depending on its parameterization the MDT Glass Push Button II Lite releases KNX telegrams. The sensor areas can be programmed for 1 or 2 button operation (BE-GTL4xx.01: 4 single sensor buttons). The RGBW status LEDs can be controlled with internal or external objects. The LED brightness is controllable via day/night or brightness object. In addition to switching, dimming, blinds, scenes or sending values, a lot more functions are available. The Glass Push Button II Lite has 4 integrated logic blocks and an slap function with additional switch chann

Function

• New multi touch function, sends up to 4 values/DPTs
• on the same or different objects
• Innovative group control with long/extra long button press
• 1 and 2 button operation for switching, dimming, shutters, values
• Changing of values/scenes with up to 4 values
• Short/long button push with 2 objects
• Slap function with additional switch channel
• Four RGBW Status LEDs
• LED brighness controllable via day/night or brightness object
• 4 logic blocks
• Installation in an installation box
• Integrated bus coup

Technical Specifications

• Number of push button pairs/ sensor buttons 1/2, 2/4, 4 single sensor buttons
• Measurement range temperature 0 to + 40°C
• Specification KNX interface TP-256
• Available application software ETS 4/5
• KNX busconnection terminal e 0,8mm Ø, solid core
• Power supply KNX Bus
• Power consumption KNX bus typ. < 0,5W
• Operation temperature range 0 to + 45°C
• Enclosure IP 20
• Dimensions (W x H x D) 92mm x 92mm x 29,5mm
