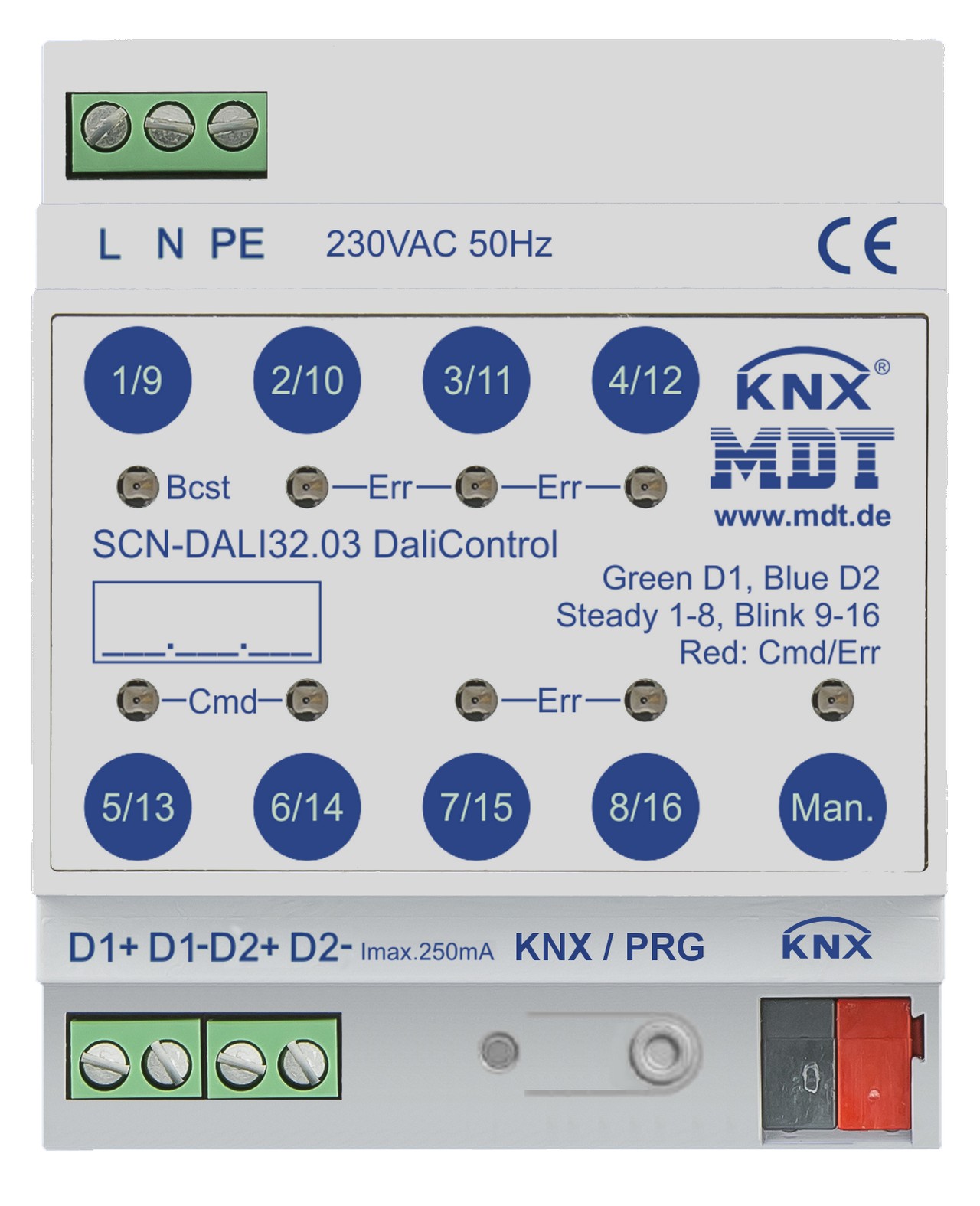

MDT - DaliControl Gateway with HSV control, 4SU MDRC, up to 128 ECG in 32 channels/light groups

The MDT DaliControl Gateway is the interface between DALI lights and the KNX installation and offers many new possibilities, such as the light control in the HSV colour space. p to 64 DALI ECGs can be assigned to any 16 channels/light groups (SCN-DALI32.03 > 128ECGs, 32 channels/light groups). For each group the functions switching, dimming and brightness value are available. The DaliControl Gateway supports various colour control modes (according to DALI DT8 standard) such as HSV colour space, RGB / RGBW, XY colour and the colour control mode Tunable White. With the integrated colour control module 16 individual time-dependent lighting moods with up to to 300 control commands can be created. The scene control allows to assign all 16 groups (SCN-DALI32.03 > 32 groups) to the 16 possible scenes as desired with individual dimming times.

Function

• Supports different DALI ECG (DT6/DT8)
• Control of up to 16 channels / light groups
• (switching, dimming, and brightness value)
• (SCN-DALI32.03 > 32 groups)
• Innovative HSV colour control, RGB, RGBW and XY colour according to Dali DT8 standard
• Tunable White, colour temperature control
• Integrated colour control module for at time dependent controlling of the luminous colour in up to 300 steps
• Operation modes like normal operation, continuous operation, night operation, stairwell operation and panic operation
• Manual operation for all 16 groups
• 16 scenes with individual dimming times
• Energy saving function for switching off the ECG (via additional KNX switch actuator)
• Fault detection of lamp faults and faulty ECGs
• Quick exchange of ECG
• Free DCA app for commissioning the DALI bus system and configuration of the scenes and time control
• Commissioning with ETS5
• 3 years warranty

Technical specifications

• Number of groups 32
• Number of ECG 128 (2x64)
• Maximum Dali voltage 16-20VDC
• Maximum Dali current 250mA
• Specification KNX Interface TP-256 with Long Frame support for ETS5
• Available application software ETS5
• KNX busconnection terminal 0,8mm Ø, solid core
• Power Supply 230VAC/50Hz
• Power consumption mains 230VAC typ. < 5W
• Operation temperature range 0 bis + 45°C
• Enclosure IP 20
• Dimensions MDRC (Space Units) 4SU
