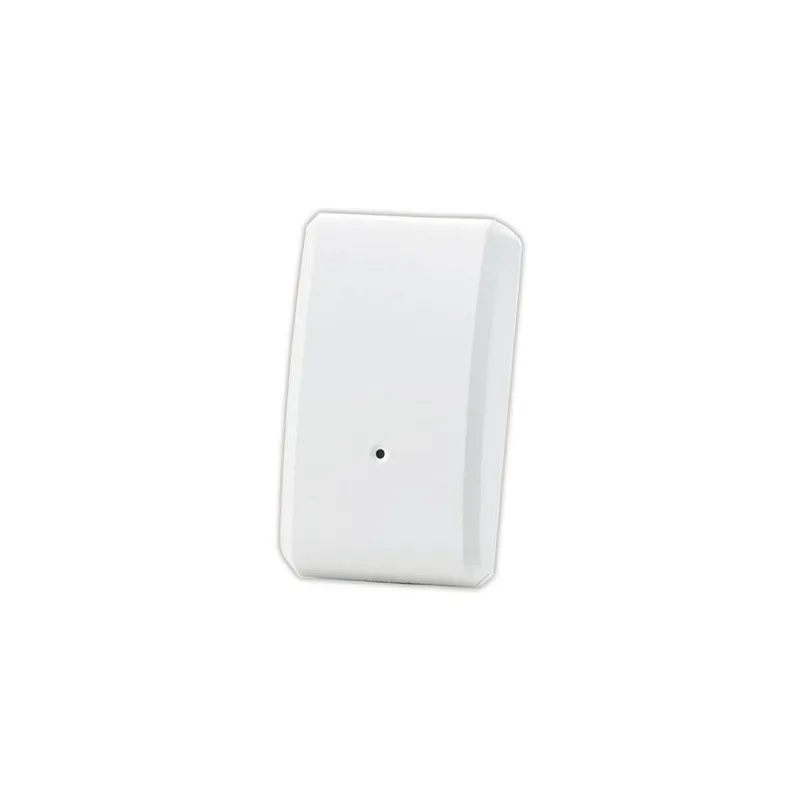

Vision Security - Z-Wave Garage Door sensor ZG8101
This sensor informs whether a garage door is open or closed by detecting the horizontal or vertical position of the door.
PRESENTATION
This sensor informs whether a garage door is open or closed by detecting the horizontal or vertical position of the door. It needs to be fitted to the door in such a way that it can give an order on any change of position, vertically or horizontally. It can be fitted using screws or double-sided adhesive. The device is battery-powered and is consequently in sleep mode unless an action is detected.
After a programmable sleep time the device will wake up and send a status report. The batteries can be changed without unscrewing the device from the door or frame.
When the batteries need to be replaced a visual warning is displayed on the device itself and a warning is sent to the Z-Wave controller. The device sends information to a controller or any other associated Z-Wave device. Up to 5 devices can be piloted from the ZG8101. Two terminals allow the connection of an external dry contact in parallel to the position sensor. The powerful Lithium CR123 battery has a life of 3 to 5 years under normal operating conditions.
FEATURES
- Position sensor for garage door
- Button to include/exclude the sensor
- Low battery warning
- Can be linked to create a group association (5 devices maximum)
- Tamper protection
- Wired input
- Uses SDK Z-Wave 5.02
- Easy to use and install
- Fixed by screws or adhesive tape
TECHNICAL SPECIFICATIONS
- Z-Wave device type: Slave
- Power supply: 1 CR123A 3V Lithium battery
- Frequency: 868.42 MHz
- Transmission range: 30m
- Display: LED
- Operational temperature: -15°C to +60°C
- Dimensions: 75 x 42 x 26mm
Specifications
Use | Door/Window Opening |
---|---|
Type | Module |
Function | Opening |
Gateway compatibility | Fibaro Home Center - total compatibility Homey - total compatibility eedomus+ - total compatibility |
Protocol | Z-Wave Serie 300 |
Guides
VISION_ZG8101_MANUAL_US_en
aeon_labs_panic_button_dsa38_manual_us_en
Z-Stick Gen5 manual_en
-
