PRESENTATION

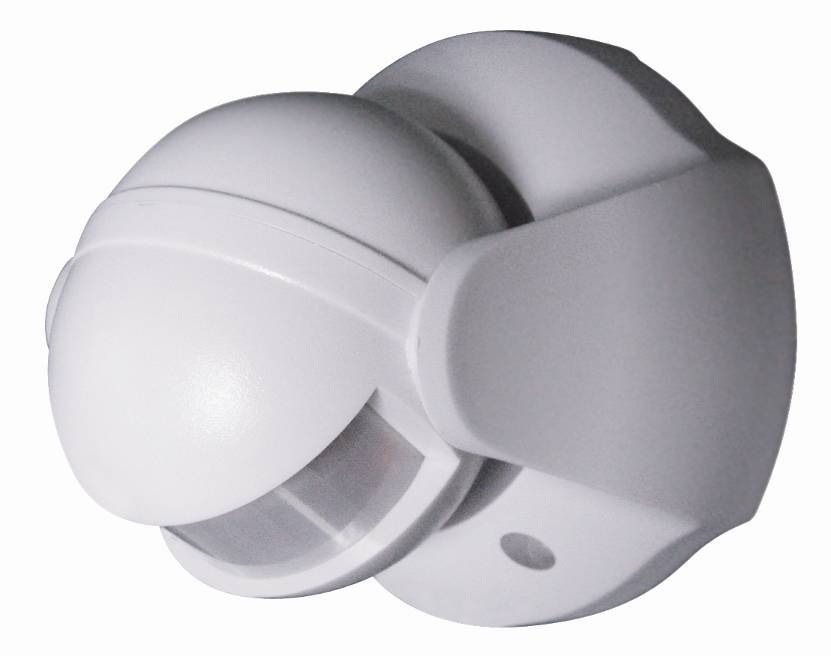

This PIR motion sensor (Passive Infrared Receiver) detects the presence of a person. It sends the information to a controller or any other associated Z-Wave device. Up to 4 devices can be controlled from this sensor.
The SP816 is powered by a battery, but it will remain in sleep state to save energy as long as no action is detected. After a programmable sleep state, it wakes up and sends information about its state. The batteries can be changed without unscrewing the sensor from the wall. It gives a visual warning (Led) and sends a signal to the Z-Wave controller when the batteries must be changed. It also has an anti-sabotage contact which sends an alarm message to the controller.
FUNCTIONS
- Detects motion change via the PIR technology
- Wireless Z-Wave+ sensor, Authentification S2
- Standby function to save the batteries
- Can control up to 4 Z-Wave devices
- Button to include/exclude the sensor
- Detection of low battery
- Anti-sabotage contact
- Easy installation
- Can be used indoors or outdoors
TECHNICAL SPECIFICATIONS
- Type of device : Z-Wave+ transmitter
- Power : 3 x 1.5V AA battery (included)
- Frequency : 868,42 Mhz
- Range : up to 30 m in open field
- Angle of detection : 100°
- Distance : 10m
- Weight : 150g
- Dimensions : 100x96x93 mm
- Protection rating : IP44
Specifications
| Use | Motion/Presence Detectors |
|---|---|
| Type | Sensor |
| Function | Motion detection (PIR) |
| Gateway compatibility | Homey - total compatibility eedomus+ - total compatibility |
| Protocol | Z-Wave Serie 500 |
-
