Fakro - Chain Drive for Pivot Windows ZWS230 (230V)
Out-of-Stock
CHF268.90
Tax included
Make your window Z-wave compatible for easy remote control. Compatible with a wide range of different types of window: rotating, projection-rotating, side-opening...
Out-of-Stock
Presentation

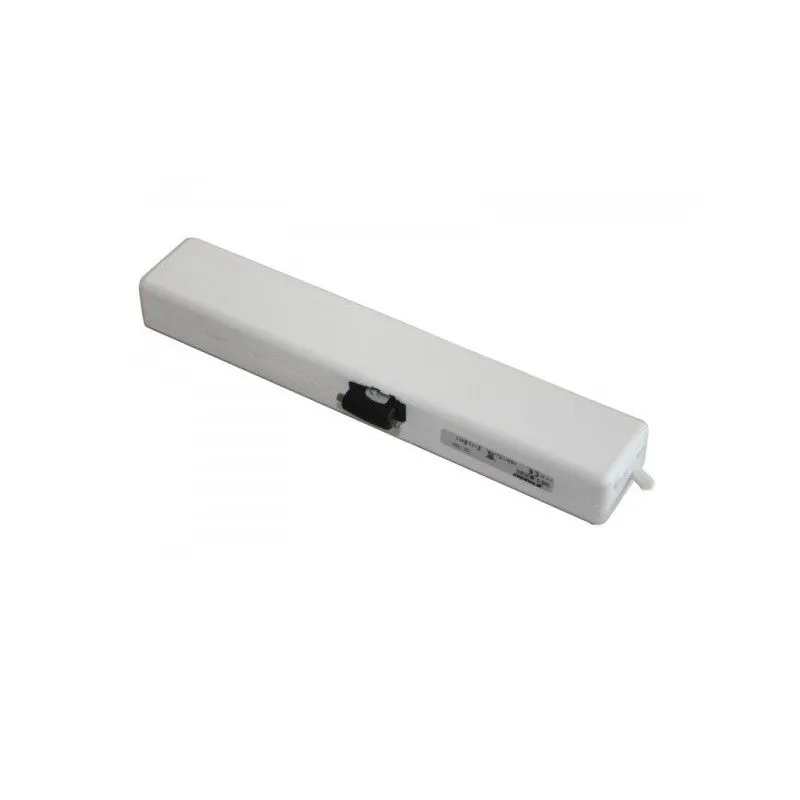

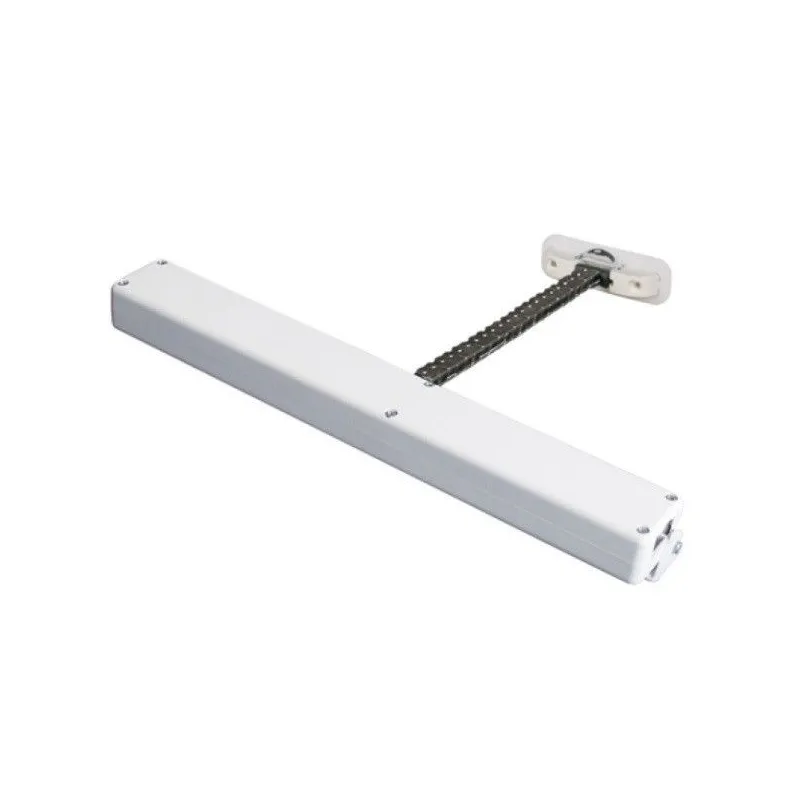

The ZWS230 chain motor makes it simple to automatically open and close your windows. With its small size and easy installation, it is ideal for electrical Z-Wave control.
This power supply unit can be used for a wide range of windows: rotating, projecting-rotating, side-opening and those with non-standard dimensions.
The ZWS230 chain motor is equipped with a built-in overload protection that also acts as a sensor to detect correct window closing. The maximum length of the chain is 36 cm.
Features
- Z-Wave chain servomotor
- Remote control for your roof windows
- Compatible with a wide range of different window types
- In-built overload protection
- Easy installation
Technical Data
- Power supply: 90 - 230VAC
- Rated Current: 0.12A
- Stand-by current: 0.03A
- Power voltage: 15W
- Radio frequency: 868.42MHz
- Range: up to 30 indoors and 100m free field
- Opening force: 200N
- Chain stroke rate: 9.7mm/s
- Ambient temperature: -9°C to +50°C
- Power Cable: 3 x 0,75mm2 (1.5m)
- Dimensions (L x H x D): 362 x 47 x 33.5 mm
- Weight: 0.940 kg
Specifications
| Protocol | Z-Wave Serie 300 |
|---|---|
| Type | Bolt-Tightener Module |
| Function | Actuator Opening |
| Gateway compatibility | Fibaro Home Center - total compatibility Homey - total compatibility eedomus+ - total compatibility |
| Use | Door/Window Opening Fixture Control |
Guides
z_wave_fakro_chain_drive_for_piv
z_wave_fakro_chain_drive_for_pivot_windows_230v_manual_en
Installation Guide ZWS230
Installation Guide ZWS230_en
-
