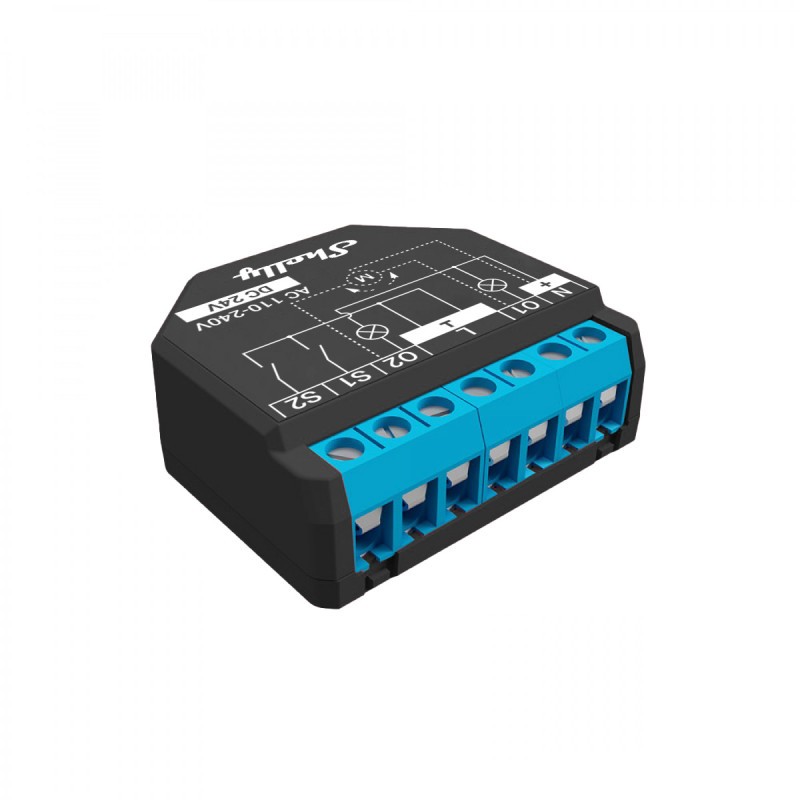

SHELLY - WiFi dual switch module with roller shutter mode and consumption measurement (Shelly Plus 2PM)

Shelly Plus 2PM is a one-phase, two channel smart relay supporting up to 10A per channel and 16A total current (18A peak). It is equipped with two power meters for each channel and an overpower protection function to limit your energy consumption. Cover (roller) control allows for the control and monitoring of roller shutters, blinds, curtains, gates, or other bi-directional AC motors.

Shelly products can operate autonomously, connecting to your WiFi, or can serve as accessories to your home automation box.

New Shelly PLUS range

Enjoy home automation and utmost control with the new generation of Shelly Devices - Shelly Plus!

Shelly Intelligent Relays are now equipped with improved control of electrical devices with an extremely fast processor, faster connectivity, improved integration and enhanced security! You can now add devices easily via the Bluetooth connection, using the Shelly Cloud application. The Shelly Plus line supports TLS encryption and has an upgraded case for standard support of external sensor plugs.

Curtains that follow your schedule

Shelly Plus 2PM supports sash control, making it perfect for automating curtains, roller shutters, garage doors, awnings, gates and any other two-way motor in your home. Use the "Schedules" feature to create the perfect morning/evening routines by setting Shelly Plus 2PM to open/close your home's curtains at preset times each day. In addition, a precise position control allows you to set the desired intermediate position of your curtains in percent (%).

Control two lights with 1 device

Shelly Plus 2PM allows you to control two different circuits and monitor their consumption separately. This way you can control two different lights on the same phase with one device, saving additional energy. Use the manual switch, the app, the preferred home automation system or your voice!

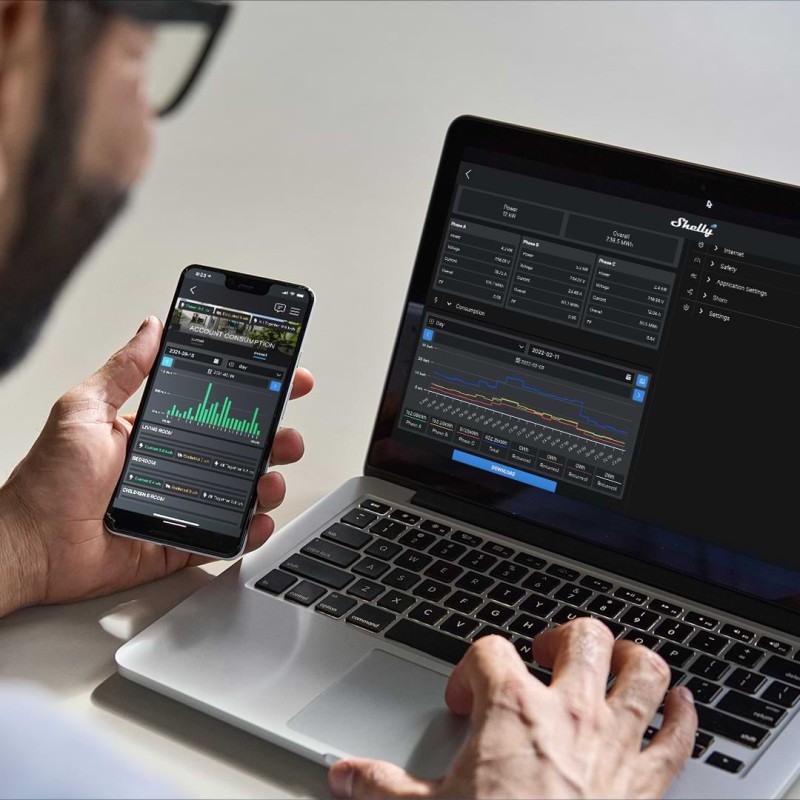

Track your energy consumption and save energy

Now you can track and analyze the energy spent by your automated devices and control your consumption. Shelly Plus 2PM has two built-in accurate power meters that allow you to monitor the consumption of each channel separately. The free stored consumption data helps you predict your expenses and allows any homeowner to reduce their electricity costs.

Combine Shelly Plus 2PM with other home automation devices

Shelly Plus 2PM, like all Shelly devices, can be grouped with other devices and triggered to perform actions according to predefined conditions. Today, many people prefer to work from their home office. Install the Shelly Door/Window 2 sensor on your home office door and set Shelly Plus 2PM to open the blinds as soon as you enter the room in the morning, letting in natural light. When the work day is over, Shelly Plus 2PM closes the blinds and leaves them open until you are ready for the next business day.

Highly compatible

Use your favorite voice assistant to control Shelly Plus 2PM. Shelly Plus 2PM is compatible with most popular voice assistants.

No hub required

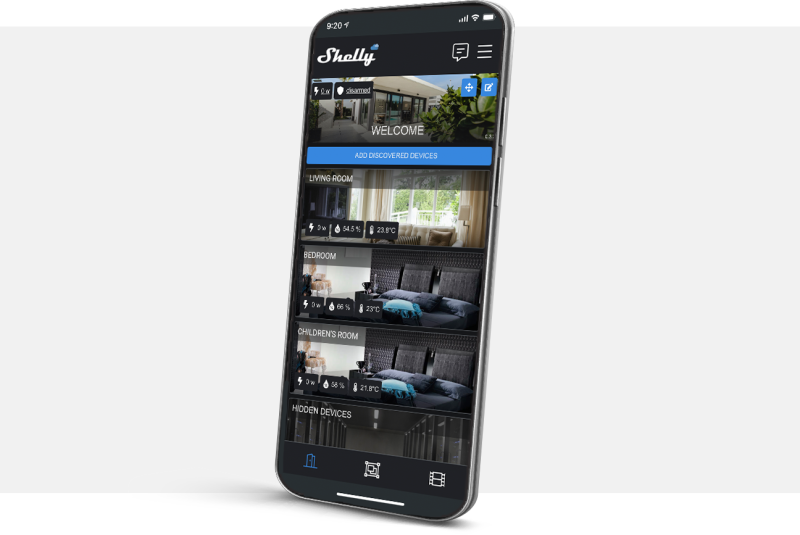

Shelly Plus 2PM can be controlled directly and without a hub via your smartphone with Shelly Cloud App. Manage and control your home or facility, set scenes, schedules and adjust settings from anywhere via cloud access, or just on the local network!

Features

• Works over Wi-Fi - Connects to your Wi-Fi network. No HUB required!
• Bluetooth - Add devices quickly and easily via a Bluetooth connection, using the Shelly Cloud app
• 2 channels on the same phase
• Energy consumption tracking
• Shutter control - automates and adjusts the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, other two-way motors
• Mains or low voltage power supply
• Extremely fast processor - ESP32
• Enhanced safety - Overload, overvoltage and overheating protection
• Enhanced security - MQTT and WSS support, TLS and custom certificate support
• Enhanced API interface
• Can be controlled by an external button/switch
• Compatible with Google Home and Amazon Echo

Technical Characteristics

• Power supply:
• 110-240V ± 10% AC 50/60Hz
• 24V DC
• Maximum load per channel: 10A, 16A total (peak at 18A)
• Power consumption: <1.4W
• Radio signal strength: 1mW
• Wireless protocol / WiFi: 802.11 b/g/n (2.4 GHz)
• Frequency: 2400 - 2484 MHz
• Operating range (depending on local construction):
• up to 50 m outdoors
• up to 30 m indoors
• Operating temperature: 0 - 40 ° C
