A Swiss format Z-wave+ socket for remote control of your appliances

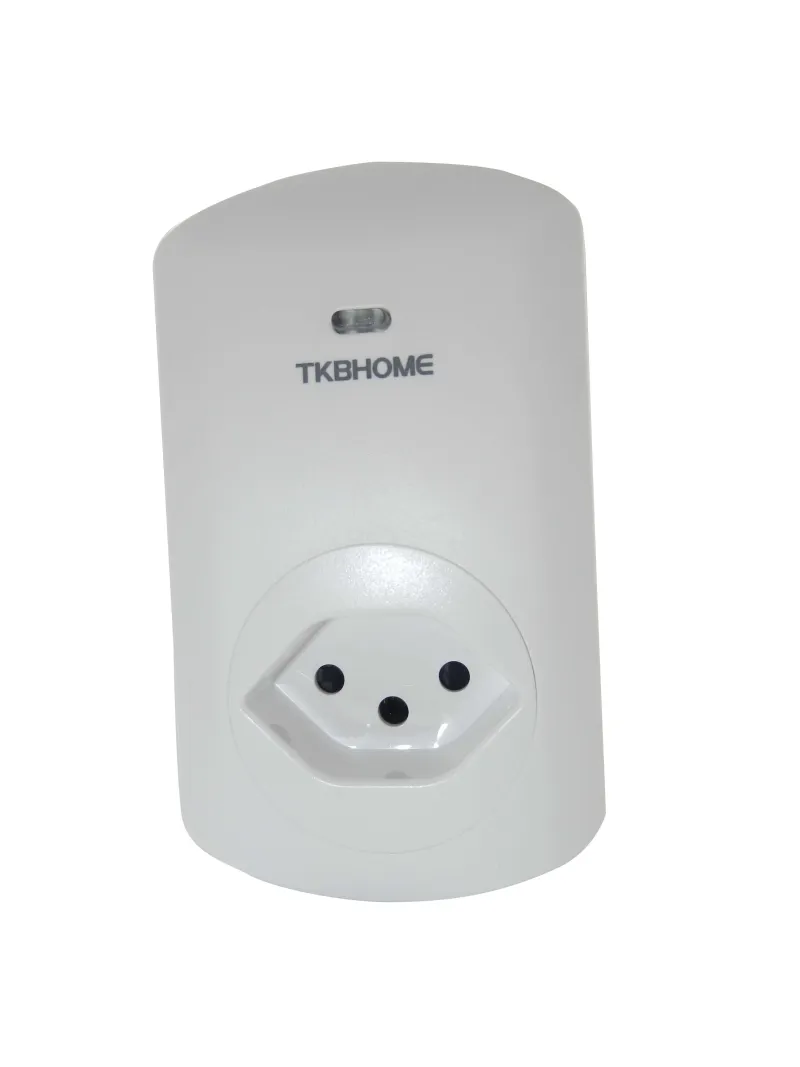

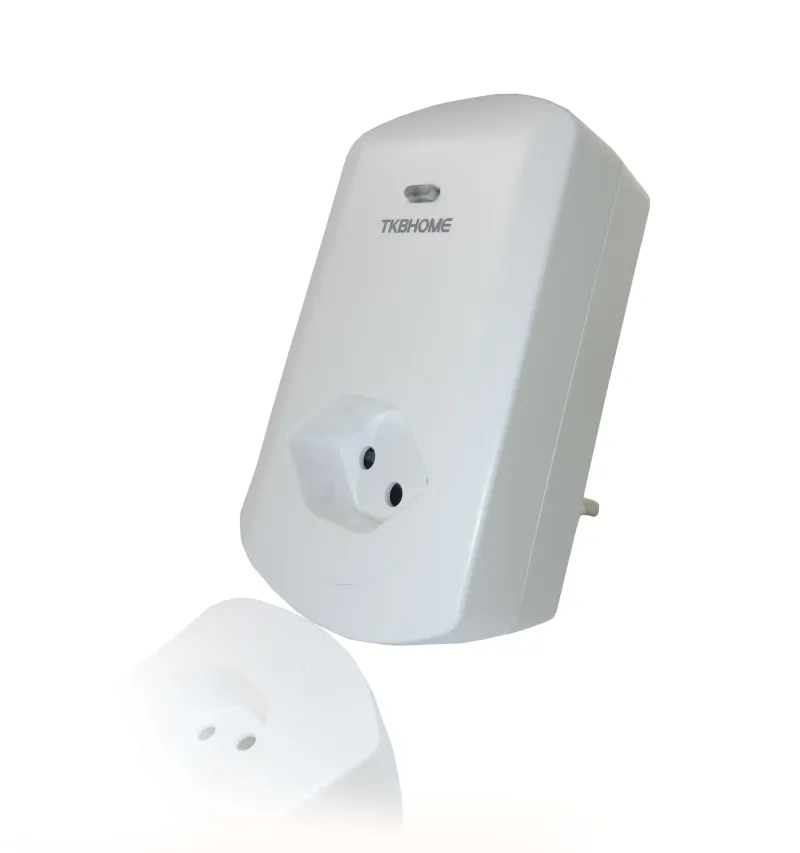

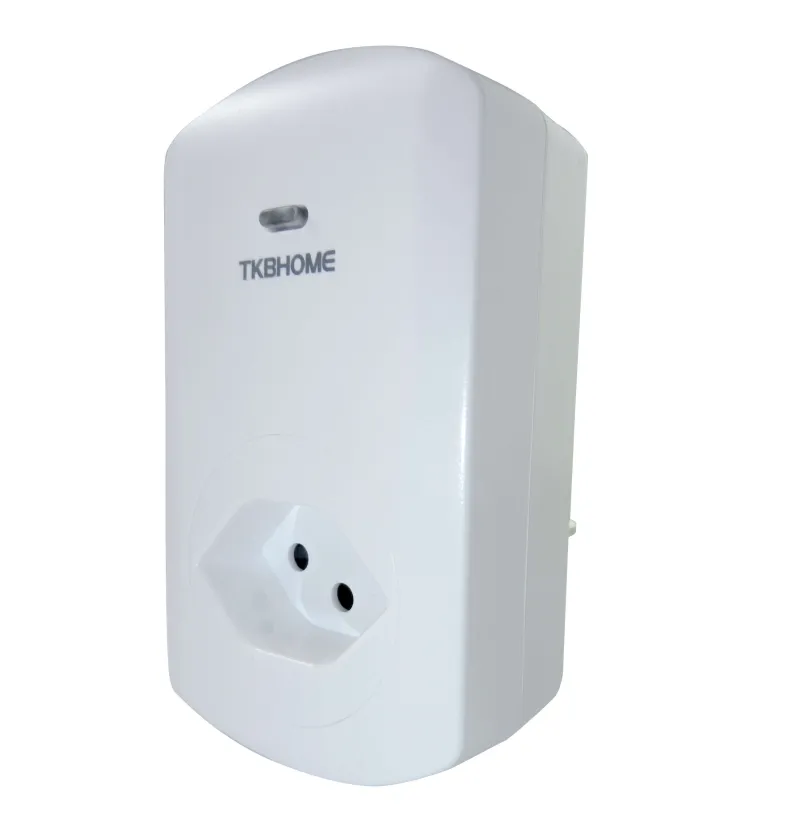

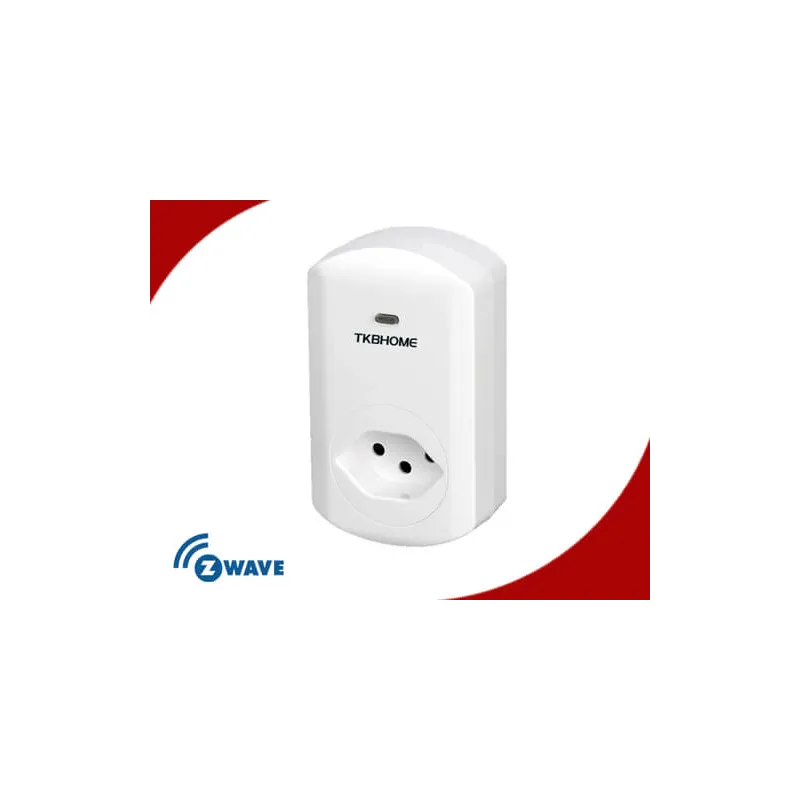

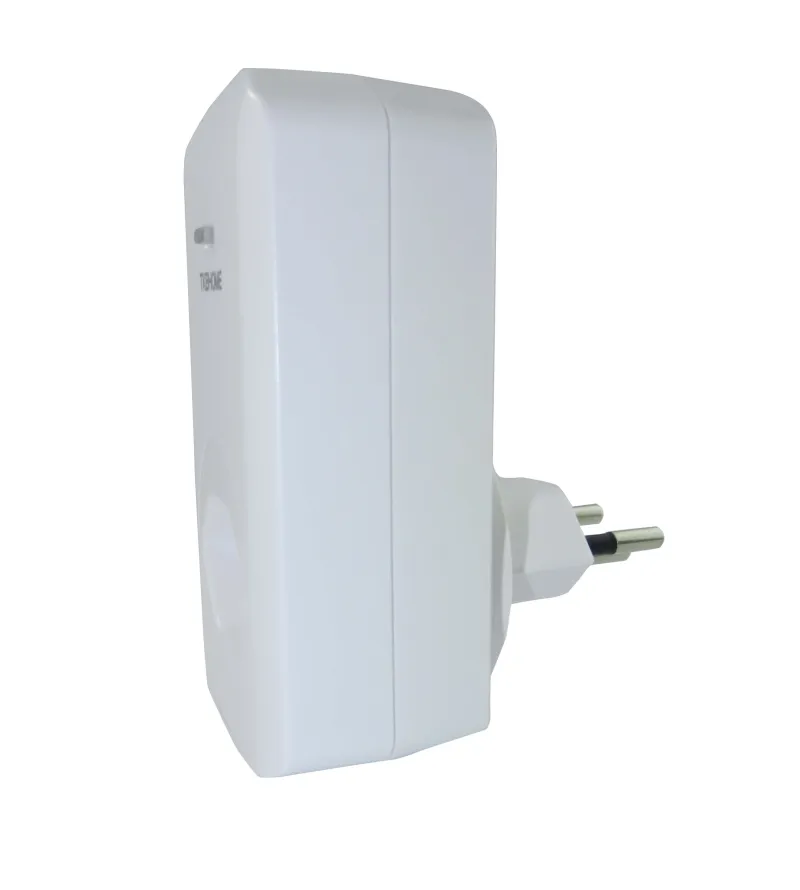

The TZ68CH GEN5 by TKB is a plug-in switch that enables you to use Z-Wave commands to control lighting or any other device. It is designed to work with any type of power load, up to 2,500W maximum.
It can be controlled by a remote control, PC software or any Z-Wave controller in your network.
This Z-Wave module also functions as a wireless repeater with your other modules to ensure total coverage for your home. It accepts over-the-air (OTA) updates and includes an overload protection.
Features
- Remote control for lighting or other appliances
- Z-Wave socket module available in Swiss Format
- Fits directly between the electrical socket and the device to be controlled
- ON/OFF function to control lights or appliances (no dimmer)
- Manual control of the device via the integrated button
- Integrated LED status button
- Overload protection
- Secure radio communication via AES-128 encryption
- Integrated 500 series Z-Wave chip
- Communication 250% faster compared to standard Z-Wave devices
- Over-the-air firmware updates (OTA)
- Z-Wave message repeater
- Easy to use and install
Technical Specifications
- Module type: Z-Wave receiver
- Power supply: 230VAC, 50/60Hz
- J type socket (Switzerland)
- Power consumption: 1W
- Maximum load: 2,500W
- Frequency: 868.42 MHz
- Transmission range: 150m free field
- Dimensions: 101.4 x 60 x 34mm
- Working temperature: 0°C to 40°C
- Certifications: FCC, UL, CE, ROHS
Specifications
| Protocol | Z-Wave Serie 500 |
|---|---|
| Type | Plug |
| Function | Actuator |
| Gateway compatibility | Fibaro Home Center - total compatibility Homey - total compatibility Somfy Tahoma - compatible via optional adapter eedomus+ - total compatibility |
| Use | Fixture Control Lighting Control |
Guides
TZ68_Manual_EN
TZ68 - Manual - EN
-
