Reyee - 8-Port PoE+ Switch 10/100Mbps 110W RG-ES110F-P
New
CHF96.00
Tax included
- Reyee Desktop PoE Switch
- Metal housing
- 8 RJ45 10/100 Mbps PoE+ 802.3af/at ports
- 2 RJ45 10/100 Mbps Uplink ports
- Plug and Play
- Energy-saving technology
In the process of replenishment

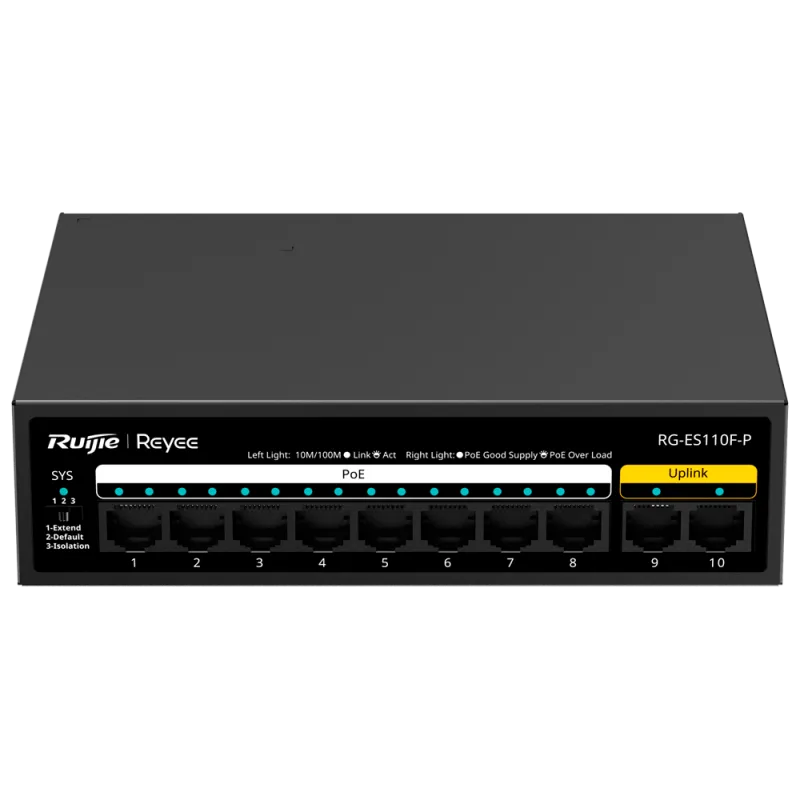

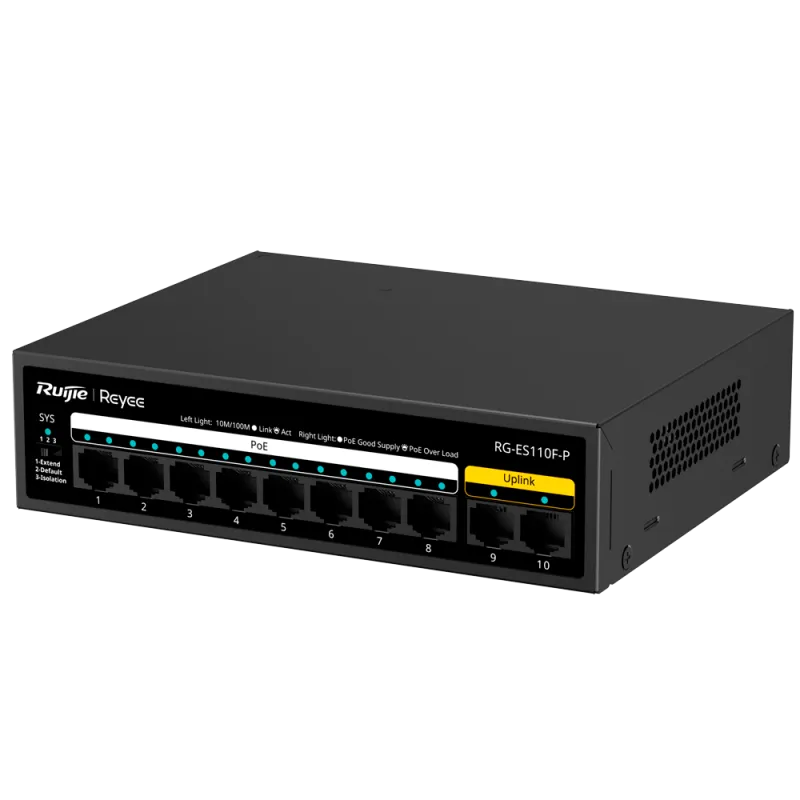

Reyee RG-ES110F-P PoE Switch
Overview
The Reyee RG-ES110F-P desktop switch is a professional solution offering 8 PoE+ ports and 2 uplink ports. Its robust metal housing and fanless design make it a reliable and silent equipment. It delivers a total PoE power of 110W and integrates advanced features such as port isolation and energy-saving technology.
Key Features
- 8 10/100Mbps RJ45 ports with PoE+ (802.3af/at)
- 2 10/100Mbps uplink ports
- Total PoE power of 110W
- Fanless design for silent operation
- Robust metal housing
- Plug and Play installation
- Visible from Ruijie Cloud
- Advanced features: Extended PoE, PoE Watchdog, port isolation
Technical Specifications
| Brand | Reyee |
| Interface | 8 RJ45 ports (2 Uplink + 8 Downlink) |
| Port Speed | 8 10/100Mbps RJ45 ports + 2 10/100Mbps Uplink ports |
| PoE Features | 8 802.3af/at PoE+ Ports Up to 30W per port Total PoE power of 110W |
| Functions | Port isolation, PoE watchdog, Extended PoE |
| Management | Unmanaged, but visible from Ruijie Cloud if there is at least one manageable switch in the installation. |
| Bandwidth | 2 Gbps |
| Packet Forwarding Rate | 1.48 Mbps |
| MAC Table | 8K |
| Supported Technologies | Auto-negotiation Mode / Auto MDI/MDIX |
| Surge Protection | 4 kV |
| Power Supply | 100~240vAC 3.0A |
| Maximum Power Consumption | < 110W |
| Operating Temperature | 0º C ~ 45º C |
| Dimensions | 166 x 132.6 x 43 mm |
| Weight | 1.22Kg (with package) |
Specifications
| Downlink ports | 8 x 10/100BASE-T |
|---|---|
| 10/100/1000Base-T ports | 0 |
| SFP ports | 0 |
| SFP+ ports | 0 |
| PoE/PoE+ ports | 8 |
| Max. PoE budget | 110 W |
| Max. power consumption | 110 W |
| Power supply | 100 V CA to 240 V CA, 3,0 A |
| Cloud-Management | No |
| Switching Layer | Unamaged |
| Outdoor use | no |
