Reyee - 8-Port 10/100Mbps PoE+ Switch + 2 Gigabit Ports RG-ES110FG-P
New
CHF142.00
Tax included
- Reyee Desktop PoE Switch
- Metal housing
- 8 RJ45 10/100 Mbps ports
- 8 PoE+ 802.3af/at Ports + 2 Uplink Ports
- Plug and Play
- Energy saving technology
In the process of replenishment

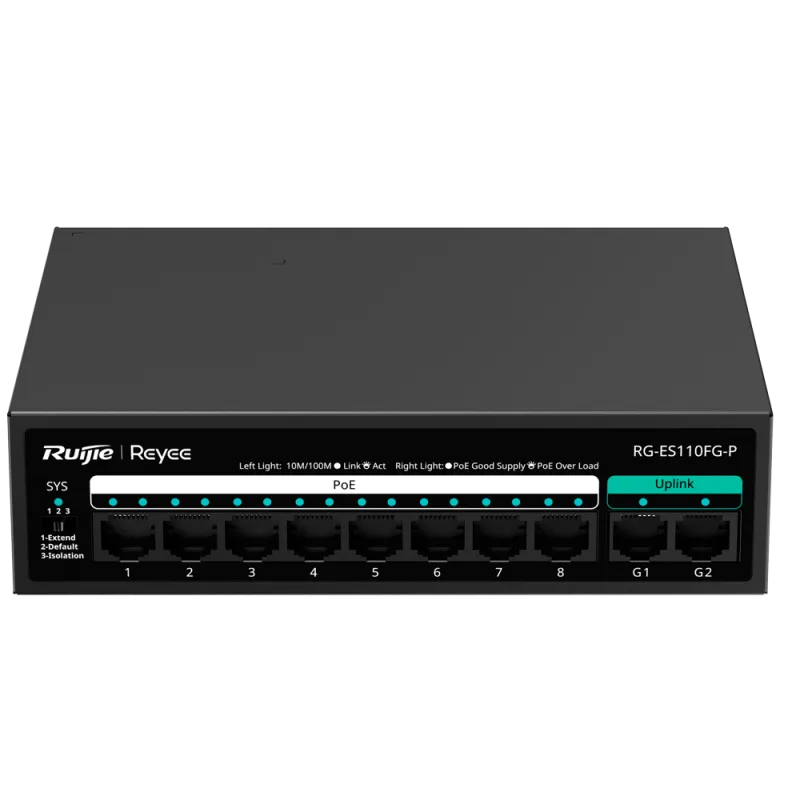

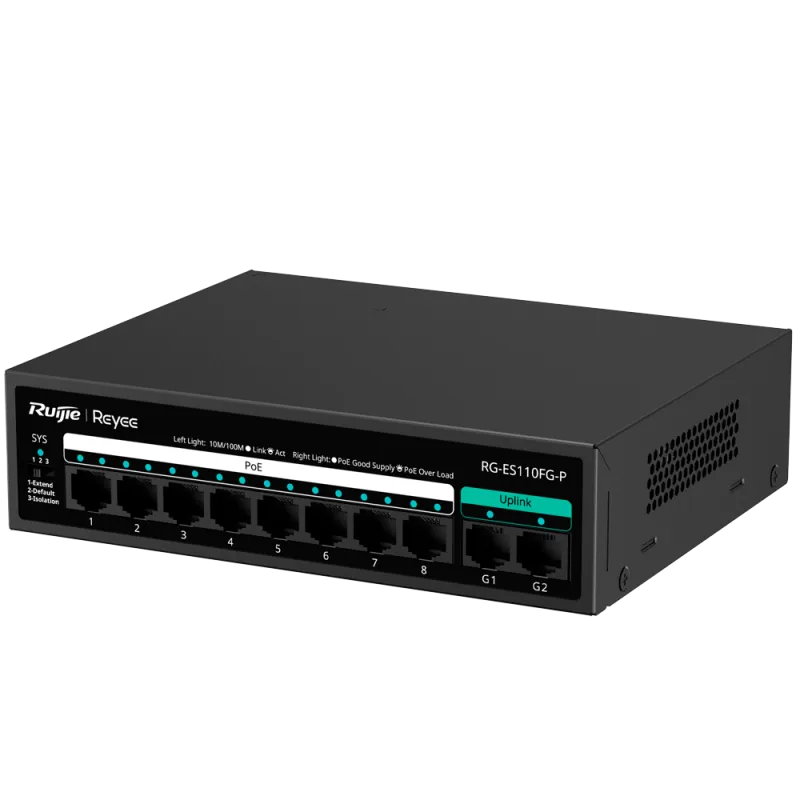

Reyee RG-ES110FG-P Desktop Switch
Overview
The Reyee RG-ES110FG-P is a professional desktop switch offering 8 PoE+ ports and 2 Gigabit uplink ports. Its robust metal housing design and fanless operation make it an ideal solution for professional installations requiring reliable PoE power.
Key Features
- 8 RJ45 10/100Mbps ports with PoE+ (802.3af/at)
- 2 uplink 10/100/1000Mbps ports
- Total PoE budget of 110W
- Fanless design for silent operation
- Port isolation for enhanced security
- PoE Watchdog technology and energy saving
- Compatible with Ruijie Cloud
- Plug and Play installation
Technical Specifications
| Brand | Reyee |
| Interface | 8 RJ45 ports (2 Uplink + 8 Downlink) |
| Port Speed | 10/100Mbps + 2 Uplink 10/100/1000Mbps |
| PoE Features | 8 Ports 802.3af/at PoE+ Up to 30W per port Total PoE power of 110W |
| Functions | Isolated ports, PoE watchdog, Extended PoE |
| Management | Unmanaged, but visible from Ruijie Cloud if there is at least one manageable switch in the installation. |
| Bandwidth | 5.6Gbps |
| Packet Forwarding Rate | 4.17Mbps |
| MAC Table | 8K |
| Supported Technologies | Auto-negotiation Mode / Auto MDI/MDIX |
| Surge Protection | 4 kV |
| Power Supply | 100~240vAC 3.0A |
| Maximum Power Consumption | < 110W |
| Operating Temperature | 0º C ~ 45º C |
| Dimensions | 166 x 132.6 x 43 mm |
| Weight | 1.22Kg |
Specifications
| Downlink ports | 8 x 10/100BASE-T |
|---|---|
| 10/100/1000Base-T ports | 2 |
| SFP ports | 0 |
| SFP+ ports | 0 |
| PoE/PoE+ ports | 8 |
| Max. PoE budget | 110 W |
| Max. power consumption | 110 W |
| Power supply | 100 V CA to 240 V CA, 3,0 A |
| Cloud-Management | No |
| Switching Layer | Unamaged |
| Outdoor use | no |
