Reyee - 6-Port 10/100Mbps 54W PoE+ Switch RG-ES106F-P
New
CHF67.00
Tax included
- Reyee Desktop PoE Switch
- Metal housing
- 6 RJ45 10/100 Mbps ports
- 4 PoE+ 802.3af/at Ports + 2 Uplink Ports
- Plug and Play
- Energy saving technology
In the process of replenishment

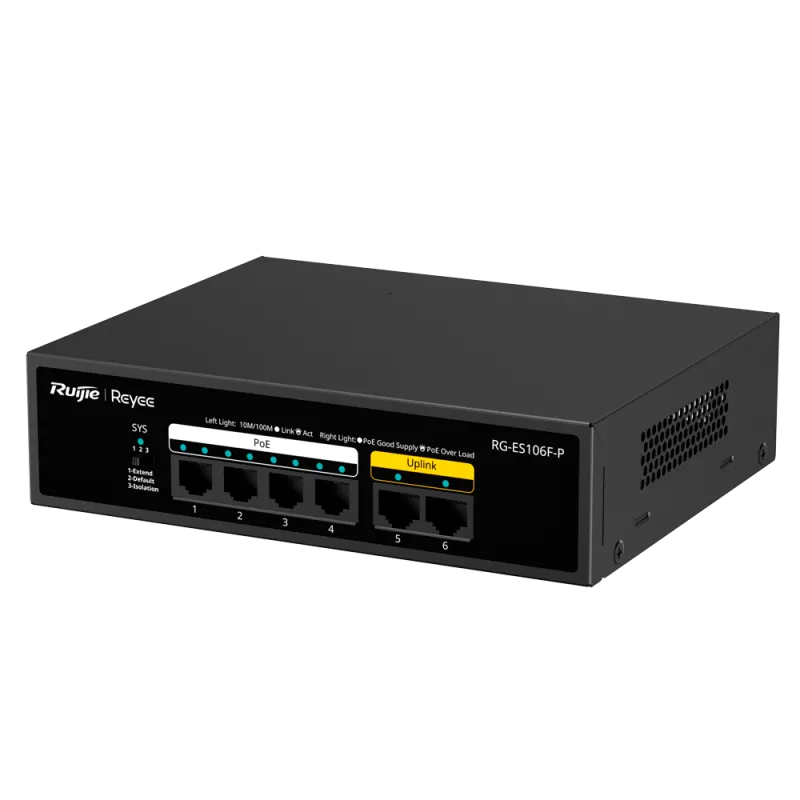

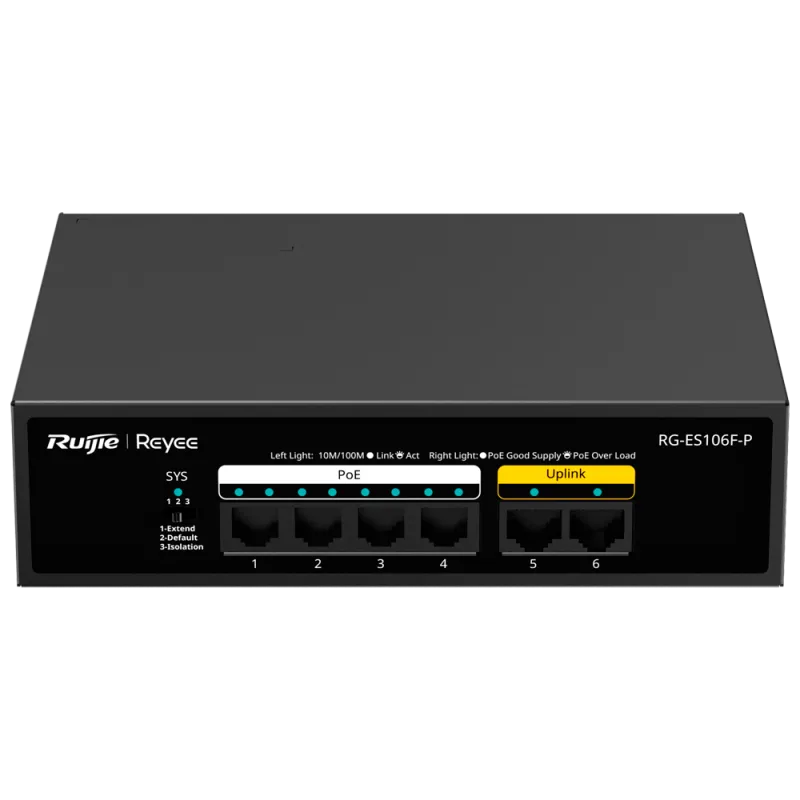

Reyee RG-ES106F-P Desktop Switch
Overview
The Reyee RG-ES106F-P switch is a compact professional network switch offering 6 RJ45 ports including 4 PoE+ ports. Designed with a robust metal housing and fanless design, it ensures quiet and reliable operation. Its Plug and Play function allows for quick and simple installation.
Key Features
- 6 RJ45 10/100Mbps ports (4 PoE+ and 2 Uplink)
- Total PoE power of 54W (up to 30W per port)
- Metal housing with fanless design
- Port isolation for enhanced security
- Extended PoE technology with Watchdog function
- Compatible with Ruijie Cloud
- Energy-efficient solution
Technical Specifications
| Brand | Reyee |
| Interface | 6 RJ45 ports (2 Uplink + 4 Downlink) |
| Port Speed | 10/100Mbps |
| PoE Features | 4 Ports 802.3af/at PoE+ Up to 30W per port Total PoE power of 54W |
| Functions | Isolated ports, PoE watchdog, Extended PoE |
| Management | Unmanaged, but visible from Ruijie Cloud if there is at least one manageable switch in the installation. |
| Bandwidth | 1.2Gbps |
| Packet Forwarding Rate | 0.89Mbps |
| MAC Table | 2K |
| Supported Technologies | Auto-negotiation Mode / Auto MDI/MDIX |
| Surge Protection | 4 kV |
| Power Supply | 100~240vAC 2.0A |
| Maximum Power Consumption | < 54W |
| Operating Temperature | 0º C ~ 45º C |
| Dimensions | 166 x 132.6 x 43 mm |
| Weight | 0.96 Kg (with packaging) |
Specifications
| Downlink ports | 4 x 10/100BASE-T |
|---|---|
| 10/100/1000Base-T ports | 0 |
| SFP ports | 0 |
| SFP+ ports | 0 |
| PoE/PoE+ ports | 4 |
| Max. PoE budget | 54 W |
| Max. power consumption | 54 W |
| Power supply | 100 V CA to 240 V CA, 2,0 A |
| Cloud-Management | No |
| Switching Layer | Unamaged |
| Outdoor use | no |
-
