Reyee - 26-Port Gigabit Managed Switch with 24 PoE+ Ports 370W RG-ES228GS-P
New
CHF573.00
Tax included
- Reyee Cloud Managed PoE Switch
- 24 PoE 802.3af/at + 2 SFP + 2 RJ45 uplink ports
- 26 RJ45 10/100/1000Mbps + 2 SFP 10/100/1000
- 30W per port 802.3af/at / Maximum 370W
- VLAN/Port Isolation/Loop Detection
- Port Speed Limit
In the process of replenishment

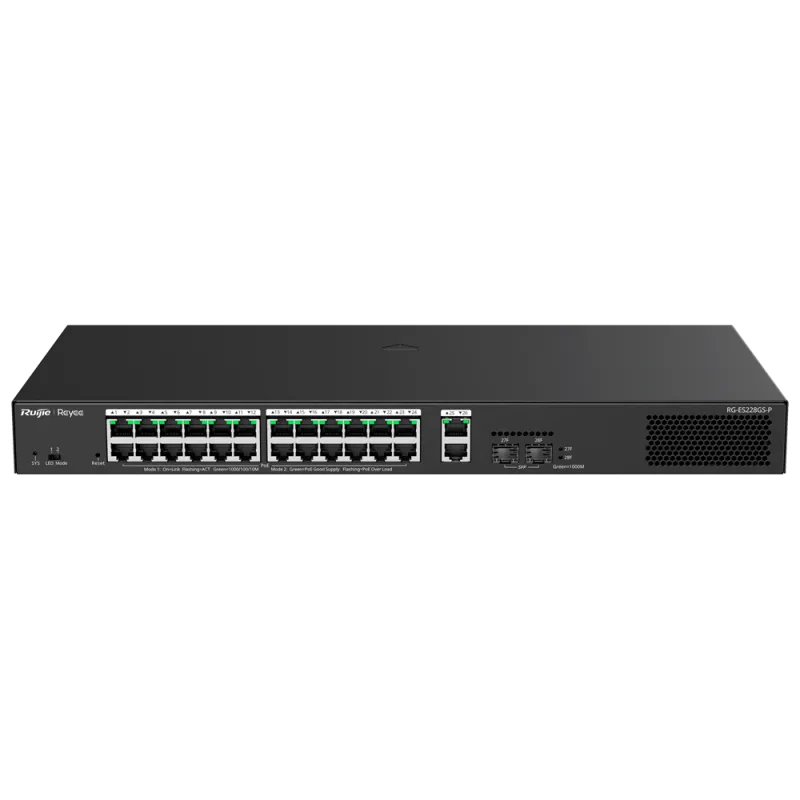

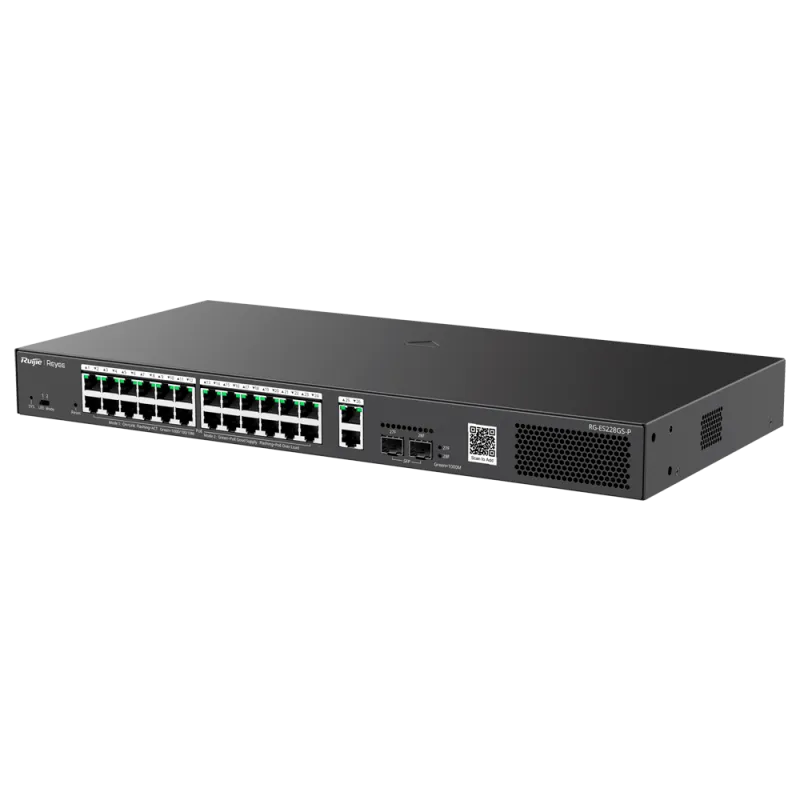

RG-ES228GS-P Reyee Manageable Switch
Presentation
The Reyee RG-ES228GS-P manageable switch is a professional solution offering 30 ports in total, including 24 PoE+ ports. Its total PoE power capacity of 370W and advanced management features make it an ideal equipment for demanding business networks.
Key Points
- 26 Gigabit RJ45 ports + 2 Gigabit SFP ports
- 24 PoE+ ports supporting up to 30W per port
- Total PoE budget of 370W
- Management via Web/Cloud/APP
- VLAN support and advanced security features
- Rack-mountable design
Technical Specifications
| Brand | Reyee |
| Interface | 24 RJ45 10/100/1000 Mbps ports + 2 SFP Uplink + 2 RJ45 Uplink |
| RJ45 Port Speed | 26 x 10/100/1000Mbps |
| PoE Power Supply | 24 PoE+ Ports 802.3af/at with up to 30W per port Up to 370W total power |
| Technologies and Protocols | Loop Detection Up to 16 VLANs Port Isolation DHCP Snooping PoE Watchdog |
| Management Protocols | Web/Cloud/APP |
| Installation | Rack-mountable |
| Power Supply | 100~240 V with external power adapter |
| Operating Temperature | 0° C ~ 40° C |
| Dimensions | 214 (D) x 44 (H) x 440 (W) mm |
| Weight | 2.84 kg |
Specifications
| 10/100/1000Base-T ports | 26 |
|---|---|
| SFP ports | 2 |
| SFP+ ports | 0 |
| PoE/PoE+ ports | 24 |
| Max. PoE budget | 370 W |
| Max. power consumption | 391 W |
| Power supply | 100 V CA to 240 V CA, 6,0 A |
| Cloud-Management | Yes |
| Switching Layer | Unamaged |
| Outdoor use | no |
