Reyee - 24-Port PoE+ Switch 10/100Mbps + 2 Gigabit Ports RG-ES126FGS-LP
New
CHF319.00
Tax included
- Reyee PoE built-in switch
- 24 RJ45 Ports + 1 RJ45 Uplink + 1 SFP Combo
- 24 10/100Mbps Ports + 2 10/100/1000Mbps Ports
- 24 PoE+ Ports 802.3af/at | Total power 180W
- Port isolation / flow control
- Plug and Play
In the process of replenishment

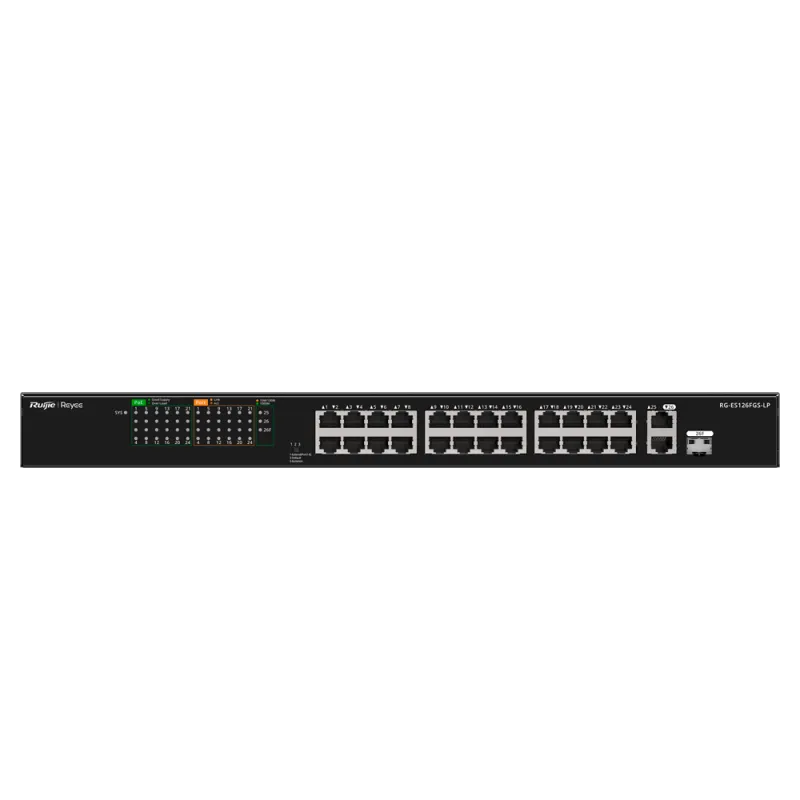

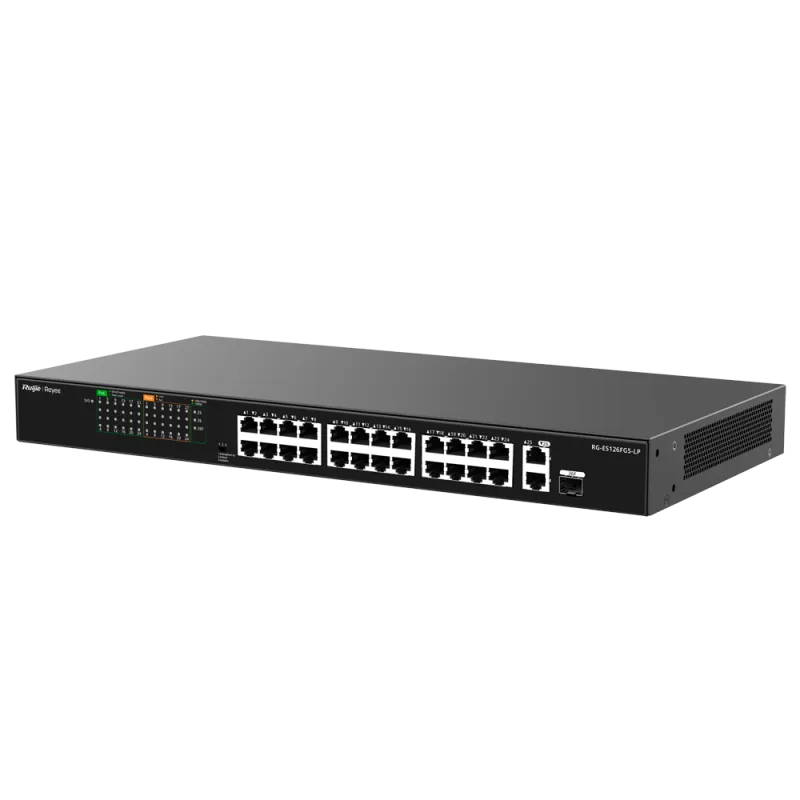

Reyee RG-ES126FGS-LP Switch
Overview
The RG-ES126FGS-LP is an unmanaged desktop switch designed by Reyee, offering a professional solution for networks requiring PoE+ power. With its 24 PoE+ ports and total power of 180W, it perfectly meets the needs of IP camera installations, VoIP phones, and WiFi access points.
Key Features
- 24 RJ45 10/100Mbps ports with PoE+ (802.3af/at)
- Total PoE power of 180W (up to 30W per port)
- Gigabit Uplink port and SFP combo port for fiber connection
- Robust metal housing with smart ventilation
- Advanced features: port isolation, PoE Watchdog, Extended PoE
- Compatible with Ruijie Cloud
- Plug and Play installation
Technical Specifications
| Brand | Reyee |
| Interface | 24 RJ45 10/100Mbps Ports 1 RJ45 10/100/1000Mbps Port 1 SFP/RJ45 Combo Port (either SFP or RJ45 port can be used, but not both simultaneously) |
| PoE Features | 24 802.3af/at PoE+ Ports Up to 30W per port Total PoE power of 180W |
| Functions | Port isolation, PoE watchdog, Extended PoE |
| Management | Unmanaged, but visible from Ruijie Cloud if there is at least one managed switch in the installation. |
| Bandwidth | 8.8Gbps |
| Packet Forwarding Rate | 6.55Mbps |
| MAC Table | 8K |
| Supported Technologies | Auto-negotiation Mode / Auto MDI/MDIX |
| Power Supply | 100V to 240V AC 3.5A |
| Maximum Power Consumption | < 180W |
| Operating Temperature | 0º C ~ 45º C |
| Dimensions | 440 x 214.9 x 44 mm |
| Weight | 3.2 Kg |
Specifications
| Downlink ports | 24 x 10/100BASE-T |
|---|---|
| 10/100/1000Base-T ports | 2 |
| SFP combo ports | 1 |
| SFP ports | 1 |
| SFP+ ports | 0 |
| PoE/PoE+ ports | 24 |
| Max. PoE budget | 180 W |
| Max. power consumption | 180 W |
| Power supply | 100 V CA to 240 V CA, 3,5 A |
| Cloud-Management | No |
| Switching Layer | Unamaged |
| Outdoor use | no |
