Reyee - 24-Port Managed PoE+ Gigabit Switch 370W + 4 SFP+ 10G RG-NBS3200-24GT4XS-P
New
CHF787.00
Tax included
- Reyee Cloud Layer 2+ PoE Switch
- 24 Gigabit PoE ports + 4 10Gbps SFP+
- 30W per port 802.3af/at / Maximum 370W
- Static LAG/DHCP Snoop/IGMP Snoop/Port Mirror
- VLAN/Port Isolation/STP/RSTP/ACL/QoS
- Rack-mountable
In stock. Ordered before 5pm, delivered on the next business day

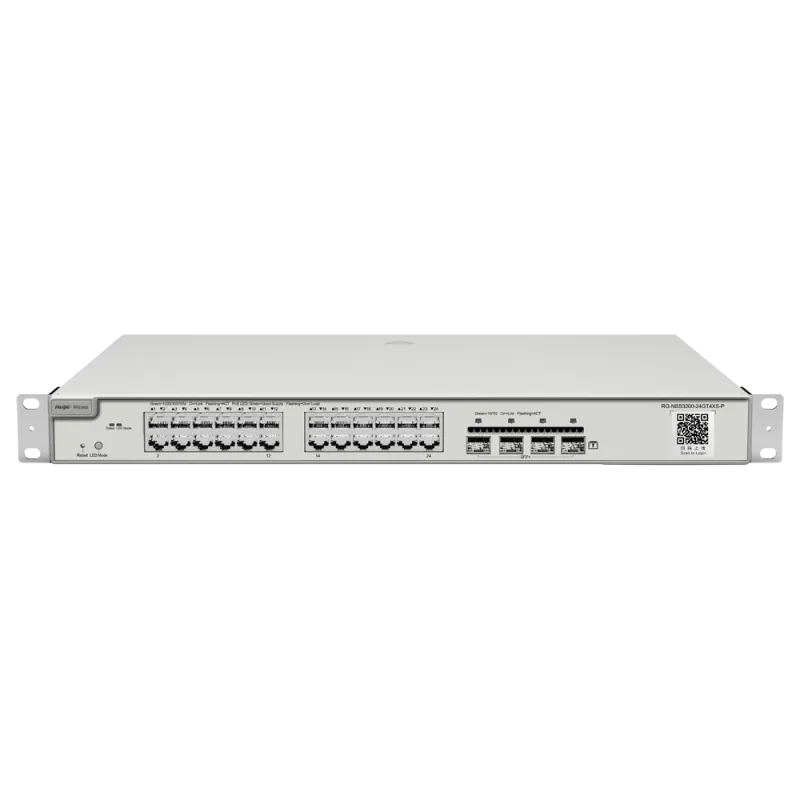

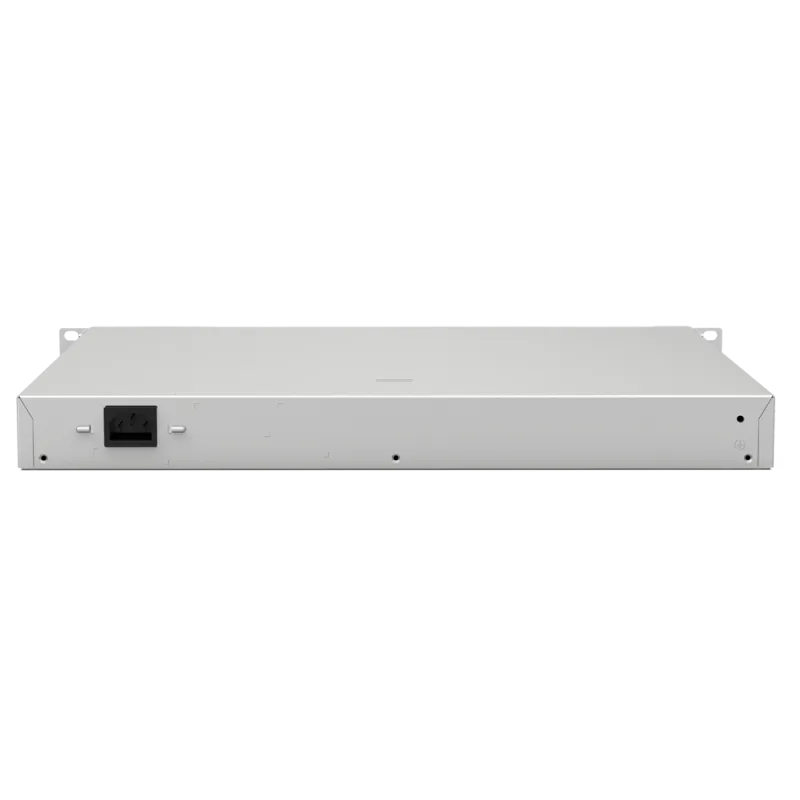

Reyee RG-NBS3200-24GT4XS-P Switch
Overview
The RG-NBS3200-24GT4XS-P is a layer 2+ managed switch from Reyee brand, designed for demanding professional networks. This rack-mountable model combines performance and versatility with its 24 Gigabit ports and 4 high-speed SFP+ ports.
Key Features
- 24 RJ45 10/100/1000 Mbps ports + 4 SFP+ 10 Gbps ports
- PoE/PoE+ functionality on all 24 RJ45 ports
- Total PoE budget of 370W
- IEEE802.3af/at standards support
- Rack mounting
- Management via Web/Cloud/APP
Technical Specifications
| Interface | 24 RJ45 10/100/1000 Mbps ports + 4 10 Gbps SFP+ Ports |
| Port Speed | 24 x 10/100/1000 Mbps - 4 x SFP 10 Gbps |
| Power Supply | Up to 30W per port (370W for entire device) |
| PoE Features | Compliant with IEEE 802.3at PoE+ / IEEE 802.3af PoE PoE Watchdog (available in latest firmware) |
| VLAN | Up to 4096 Voice VLAN |
| Network Protocols and Technologies | LLDP/LLDP-MED IGMP Snooping v1/v2 CPU Protect Policy Energy Efficient Ethernet ACL Jumbo Frame 9216 |
| Redundancy Control | Spanning Tree (STP, RTSP) ERPS (only available on SFP ports) |
| Management Protocols | Web/Cloud/APP |
| Installation | Rack |
| Power Input | AC 100 V - 240 V |
| Operating Temperature | 0° C - 50° C |
| Dimensions | 357.6 (D) x 43.6 (H) x 440 (W) mm |
| Weight | 4.75 Kg (with packaging) |
Specifications
| 10/100/1000Base-T ports | 24 |
|---|---|
| SFP ports | 0 |
| SFP+ ports | 4 |
| PoE/PoE+ ports | 24 |
| Max. PoE budget | 370 W |
| Max. power consumption | 432 W |
| Power supply | 100 V CA to 240 V CA, 6,0 A |
| Cloud-Management | Yes |
| Switching Layer | Layer 2 |
| Outdoor use | no |
