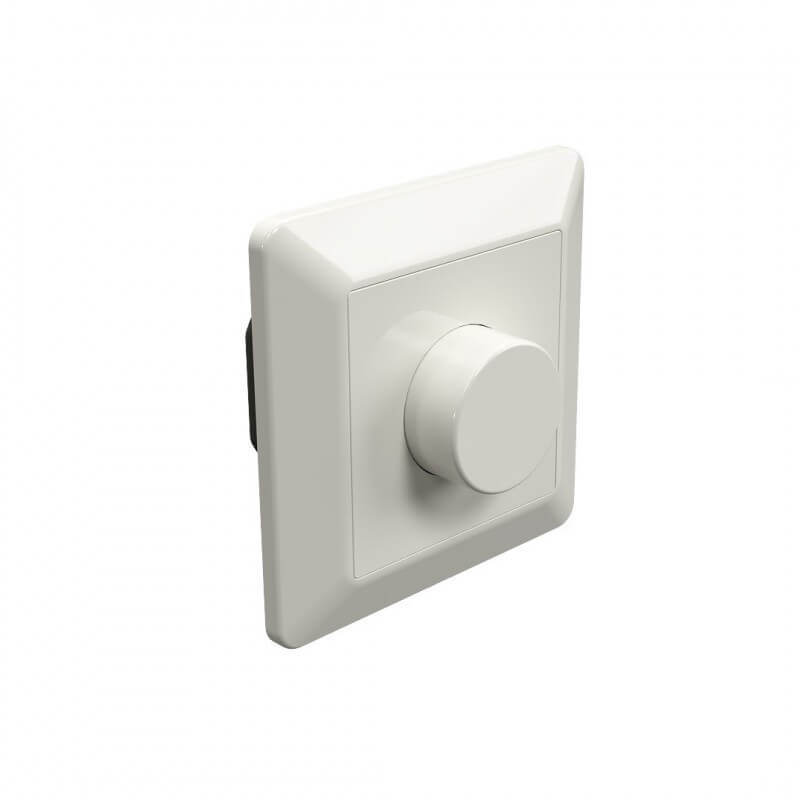

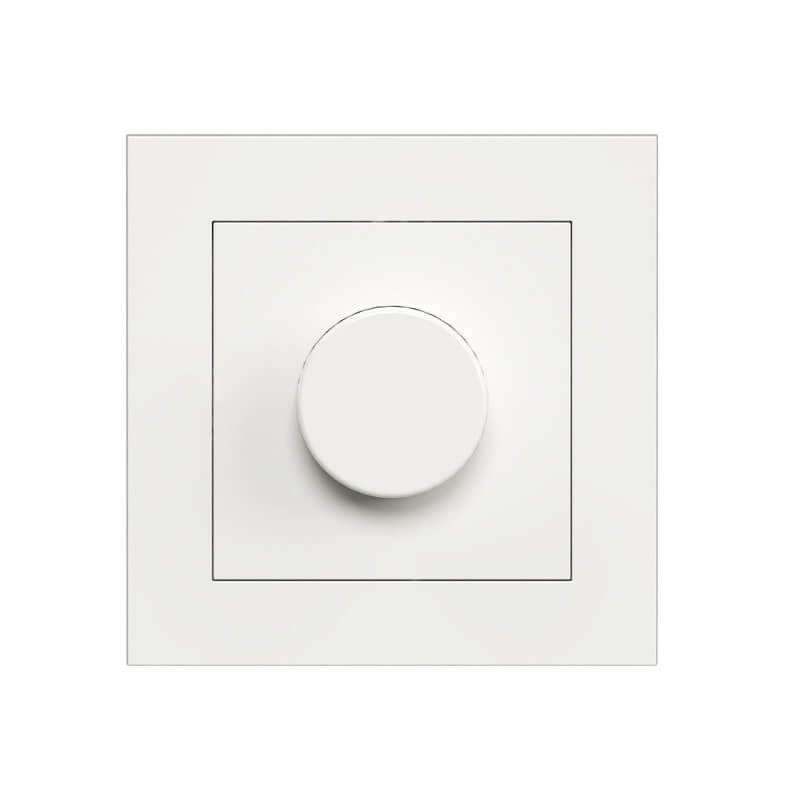

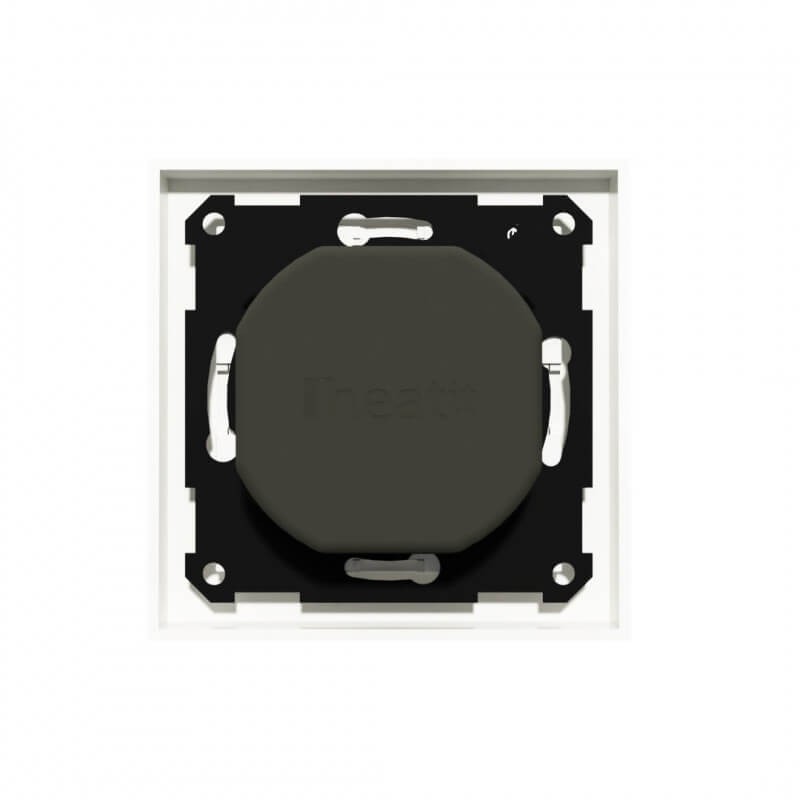

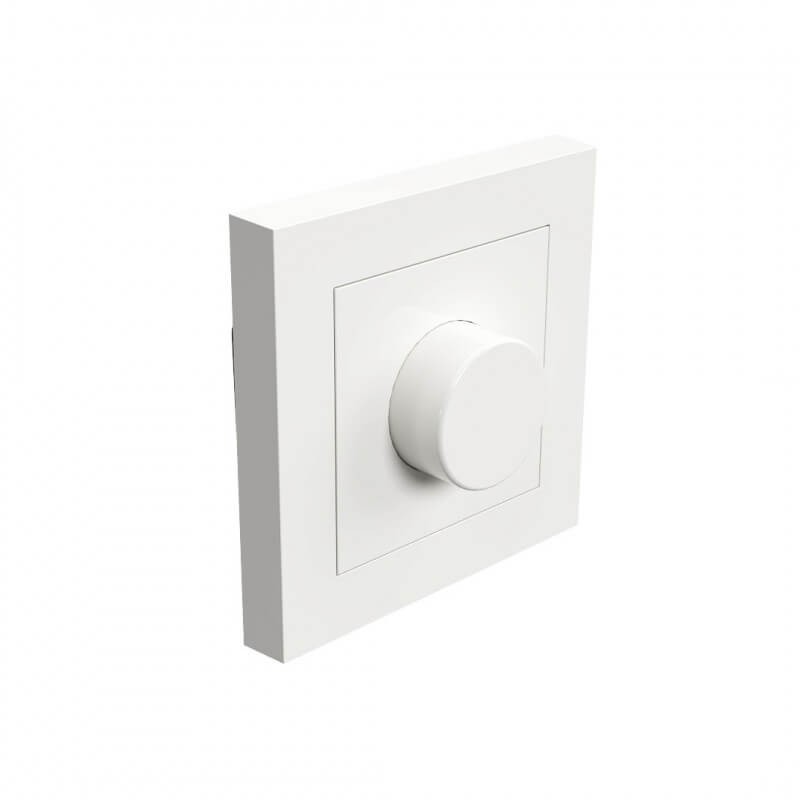

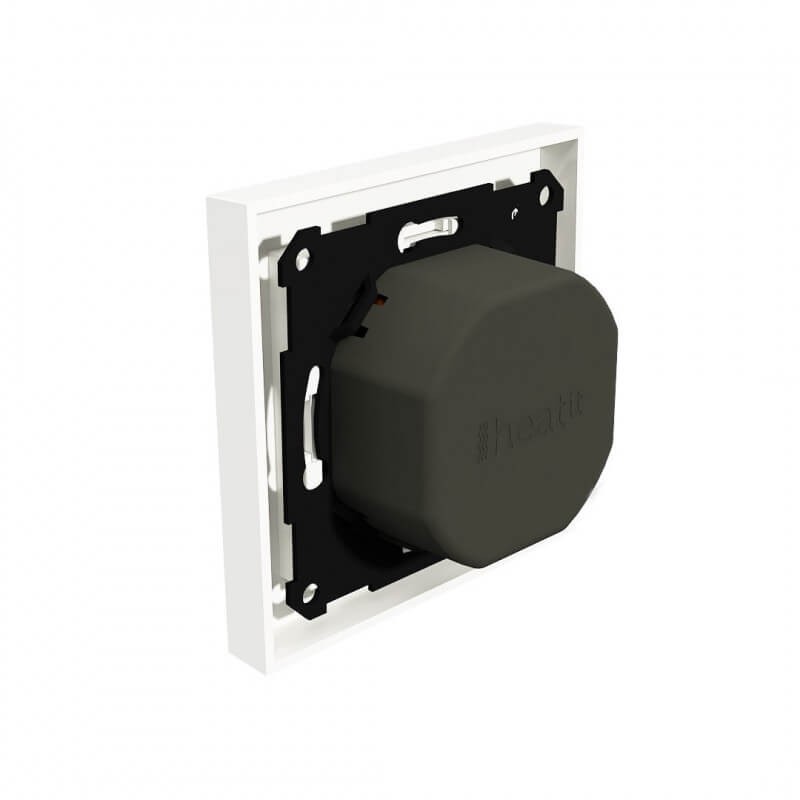

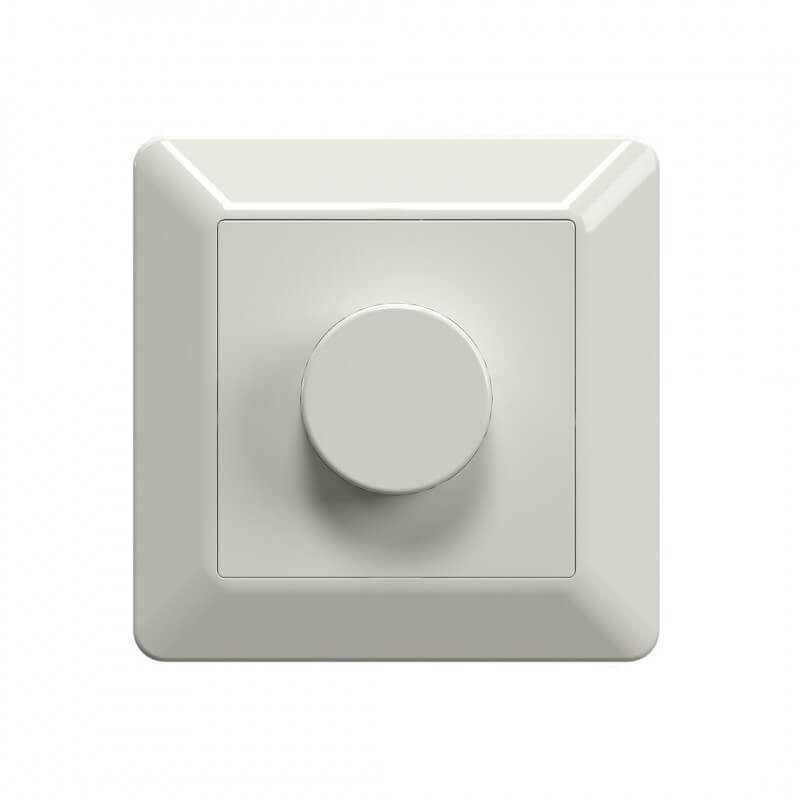

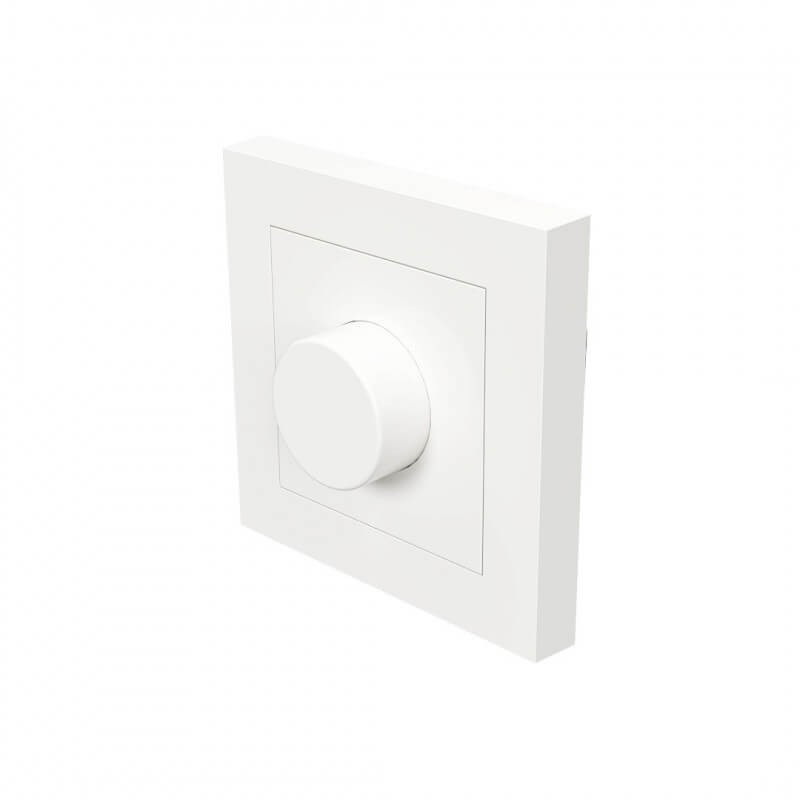

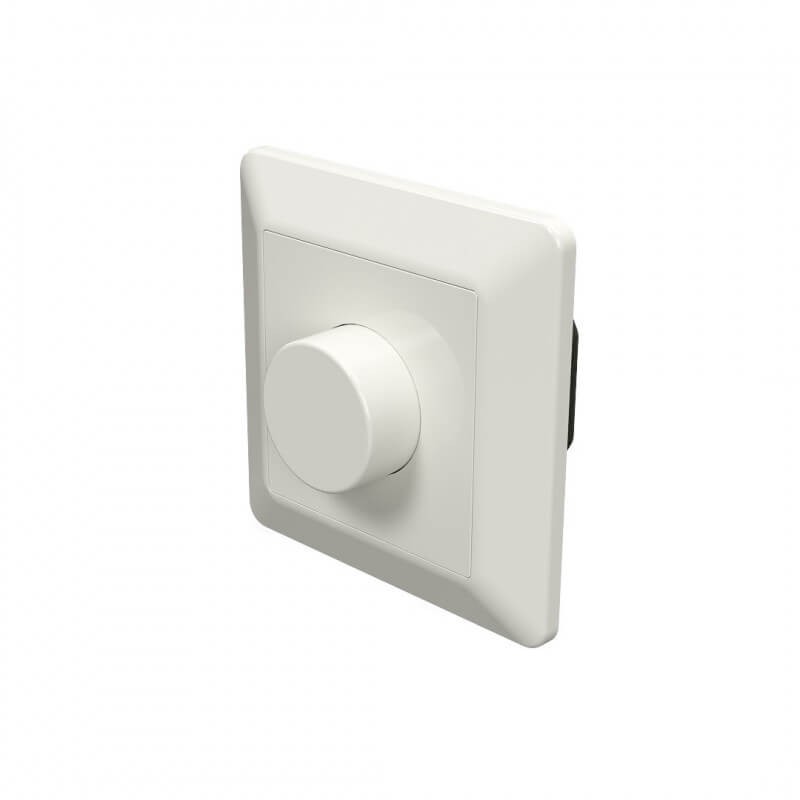

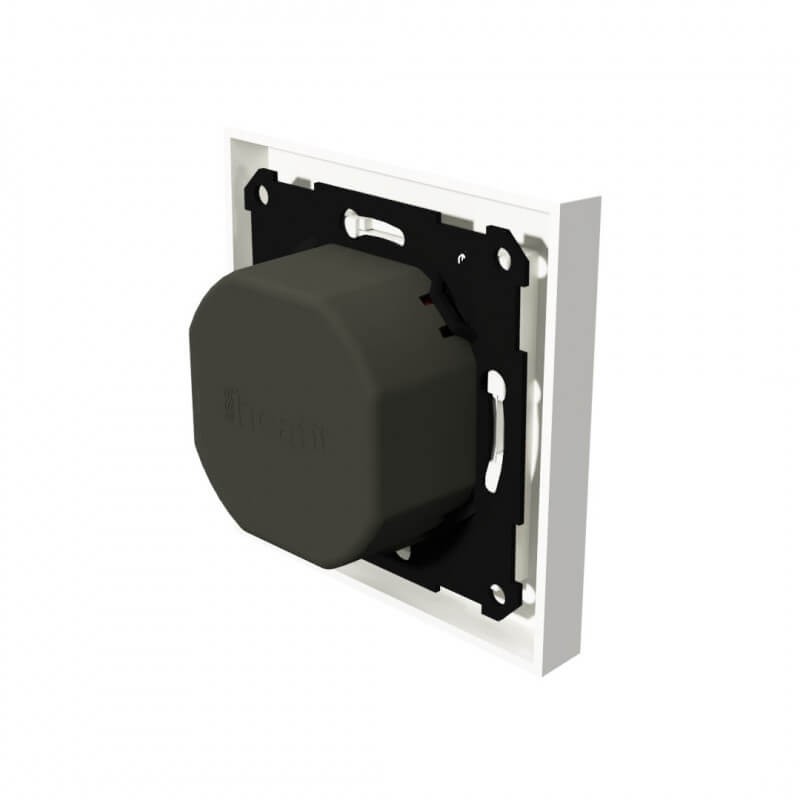

Thermofloor - Z-wave+ 700 Z-Dim2 rotary dimmer switch
New
CHF59.00
Tax included
Heatit Z-Dim2 is a Z-Wave rotary dimmer that can control many types of lighting fixtures.
In stock. Ordered before 5pm, delivered the next business day.
Heatit Z-Dim2 is a Z-Wave rotary dimmer for many types of lighting fixtures. The Heatit Z-Dim2 works on most light loads without causing flicker.
The dimmer is equipped with an external switch option. This allows you to dim and turn on/off the load from an external switch.

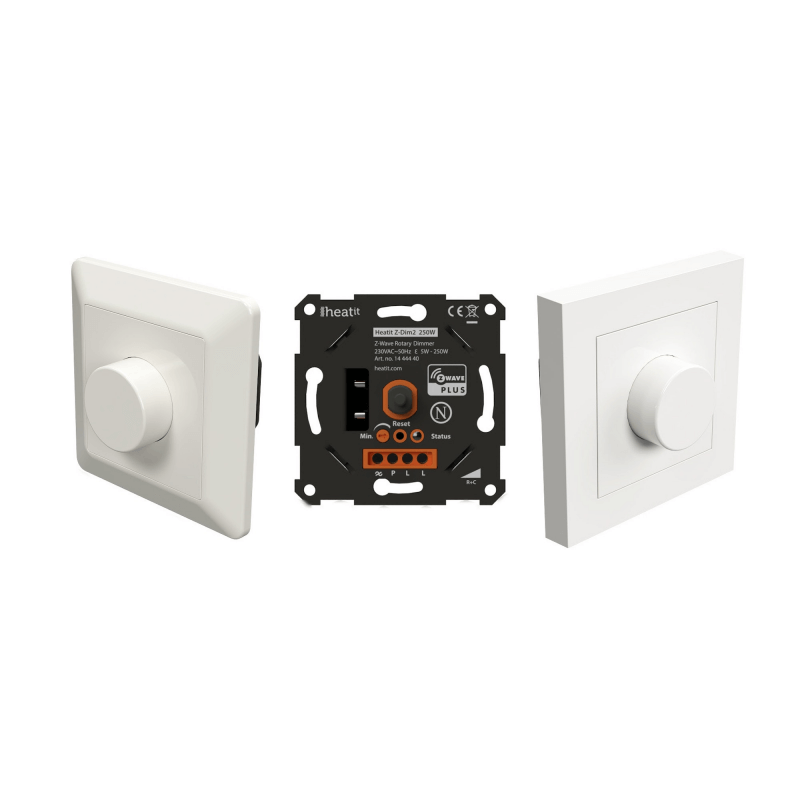

Heatit Z-Dim2 is very suitable for LEDs and can be integrated into System 55 frames. When connecting small loads, it is recommended to use a bypass.
FUNCTIONS
- Z-Wave rotary dimmer
- Works in a 2-wire installation (without neutral)
- Dims LED lights from 5 to 250W
- Nemko certified
- Power measurement
- SmartStart
- Firmware update (OTA)
- Overload protection
- Short circuit protection
- Overvoltage protection
- Overheating protection
- External switch
- Min. brightness level
- Max. automatic brightness level calibration
- Supports encryption mode: S0, authenticated class S2, unauthenticated class S2
TECHNICAL SPECIFICATIONS
- Protocol: Z-Wave Plus, 868.4 MHz
- Chip: Z-Wave 700 chip
- Rated voltage: 230V 50/60Hz
- Power: 5W - 250W
- Input current: 0,9A
- Controls: dimming by push button and rotation
- Ambient temperature: 5 ° C to 40 ° C
- RF range: minimum 40 meters
- IP class: IP21

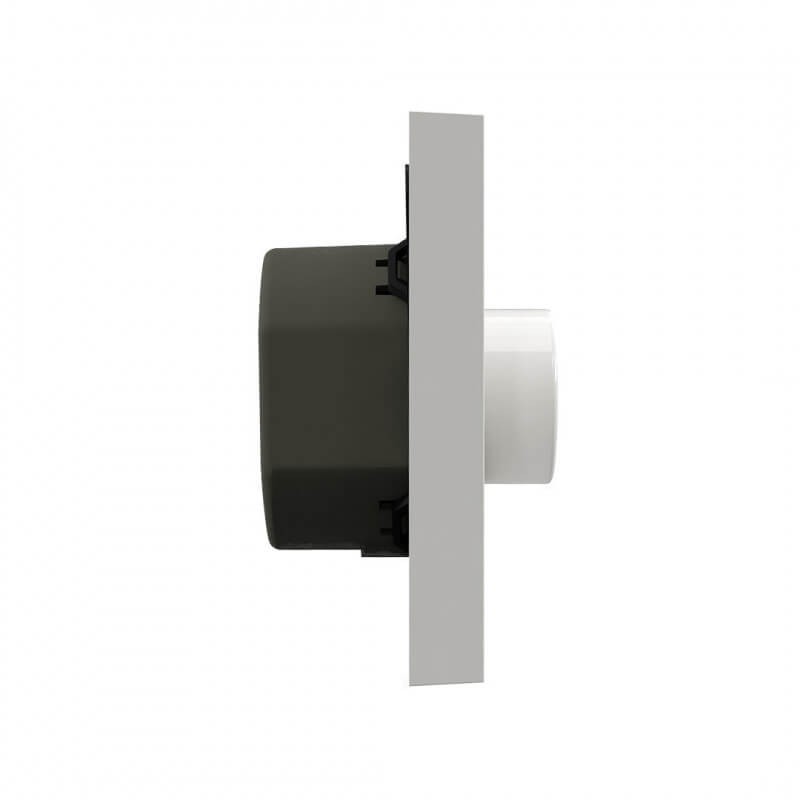

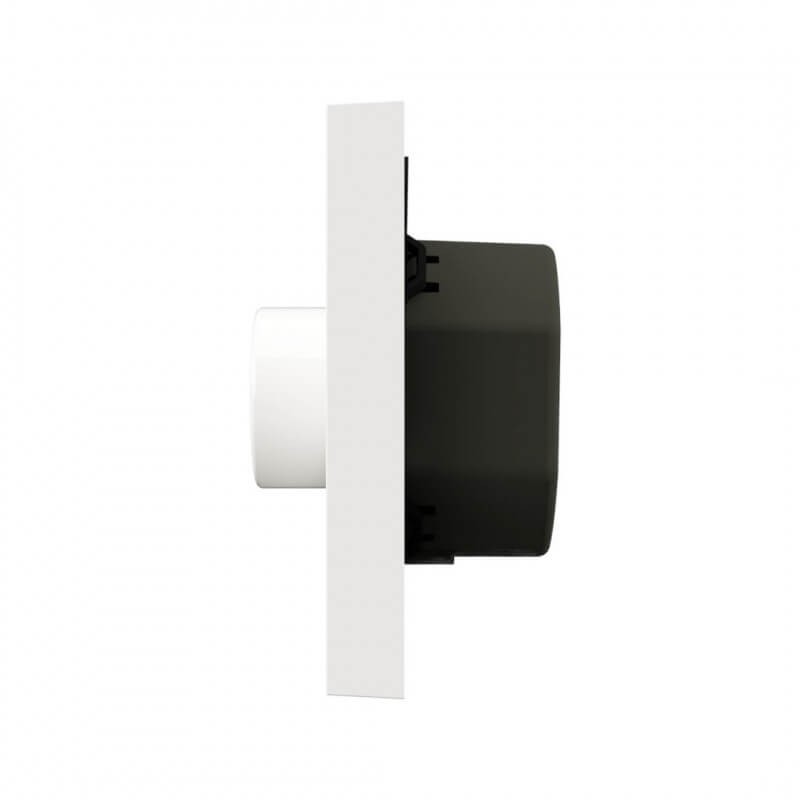

- Mounting depth: 24 mm
- Dimensions: 84 x 84 x 43 mm
- Weight: 79 g
- Approvals: Z-Wave Plus V2, CE, Nemko
-
