Sunricher - Zigbee 3.0 multifunction control panel
With its 12 programmable buttons and rotary encoder, the SR-ZG9002KR12-PRO lets you easily control lighting, scenes, zones and much more, directly from a central control point. Its extensive compatibility with leading home automation platforms makes it an ideal choice for upgrading your installation without constraints.

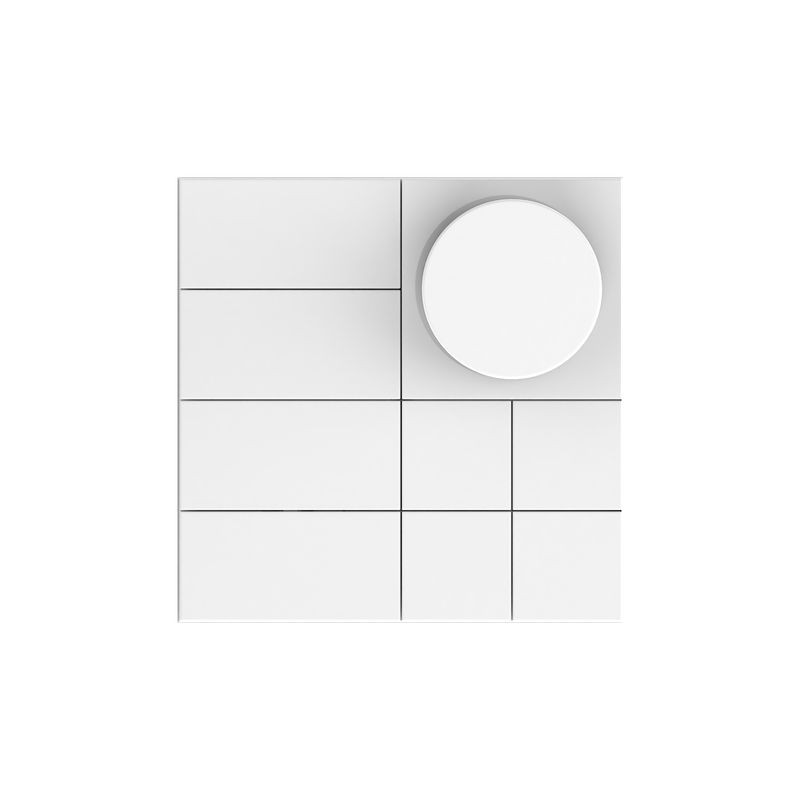

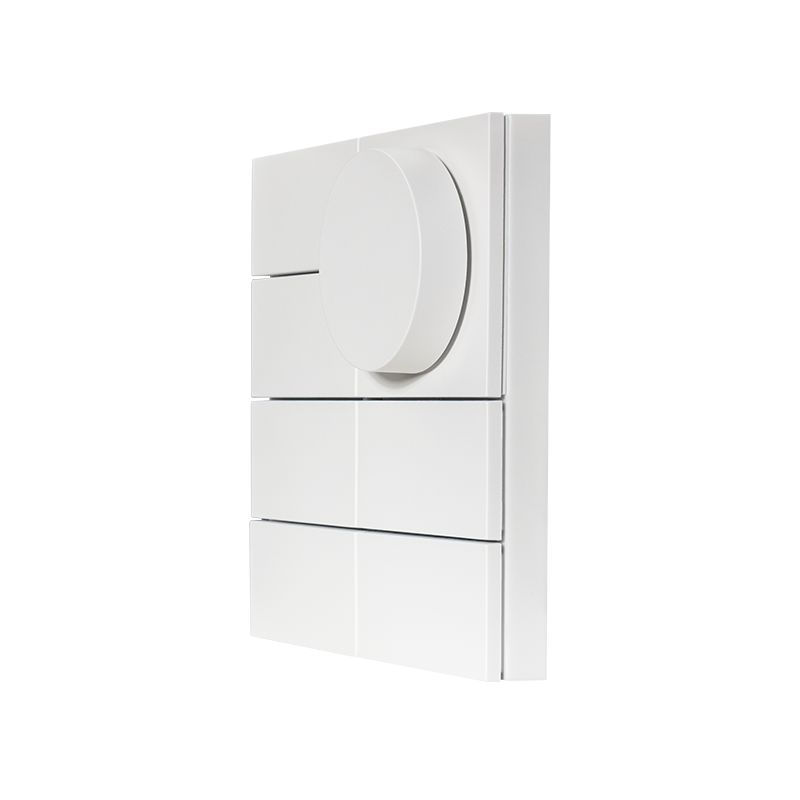

Smart Zigbee 3.0 Wall Control Panel - SR-ZG9002KR12-PRO
Introduction
The SR-ZG9002KR12-PRO from Sunricher revolutionizes smart home control with cutting-edge Zigbee 3.0 technology. This intelligent wall-mounted control panel offers a comprehensive and customizable home automation solution, perfectly suited to the needs of demanding users. Designed for seamless integration into your existing smart home ecosystem, it combines elegance, functionality, and outstanding performance.
With 12 programmable buttons and a rotary encoder, the SR-ZG9002KR12-PRO allows you to easily control lighting, scenes, zones, and more—all from a single central point. Its broad compatibility with major smart home platforms makes it the ideal choice for upgrading your system without hassle.
Key Features
- Fully Customizable Control: Enjoy 12 fully programmable buttons plus a rotary encoder to tailor your automation functions via the "Azoula Smart" app.
- Advanced Zigbee 3.0 Connectivity: Benefit from the latest Zigbee 3.0 standard for reliable communication, extended range, and universal compatibility with your existing mesh network.
- Long Battery Life: Battery-operated with ultra-low power consumption thanks to Zigbee energy optimization, offering months of continuous use.
- Universal Compatibility: Works with leading smart home platforms including Home Assistant, Homey, SmartThings, Zigbee2MQTT, and HomeKit (via Homebridge).
- Easy Wireless Installation: No wiring required – quick and flexible wall-mount installation in any room.
- Smart Multi-Zone Control: Simultaneously manage lighting, ambiance scenes, device groups, and specific zones from a single control point.
Technical Specifications
Communication Protocol
- Standard: Zigbee 3.0
- Frequency: 2.4 GHz
- Range: Up to 30m indoors (depending on obstacles)
- Network: Zigbee Mesh Network
User Interface
- Programmable Buttons: 12 touch-sensitive keys
- Rotary Encoder: 1 adjustment wheel
- Activation Type: Customizable push buttons
- Haptic Feedback: Yes
Power Supply
- Type: Integrated battery
- Technology: CR lithium button cell
- Battery Life: Several months (standard use)
- Power Consumption: Ultra-low energy usage
Installation and Mounting
- Type: Wall mounting
- Mounting: Included mounting system
- Wiring: No wiring required
- Dimensions: Compact format for discreet integration
Software Compatibility
- Dedicated App: Azoula Smart
- Home Assistant: Native support
- Zigbee2MQTT: Fully integrated
- Homey: Compatible
- SmartThings: Supported
- HomeKit: Via Homebridge
Certifications and Standards
- Compliance: Zigbee 3.0 certified
- Security: AES-128 encryption
- Standard: 16 CFR Part 1263 (battery safety)
Operating Conditions
- Operating Temperature: -10°C to +50°C
- Humidity: 10% to 90% (non-condensing)
- Usage: Indoor use only
- Protection Rating: Suitable for residential use
Box Contents
- 1× SR-ZG9002KR12-PRO panel
- 1× Wall mounting kit
- 1× Multilingual user manual
- 1× Quick start guide
-
