Reyee - 10-Port Gigabit Managed PoE Router RG-EG210G-P-V3
New
CHF255.00
Tax included
- Reyee Cloud controller PoE router
- 8 PoE+ GE RJ45 ports + 2 GE RJ45 ports
- 10 RJ45 10/100/1000 Mbps Ports
- Supports up to 4 WAN for failover or load balancing
- Up to 600 Mbps bandwidth
- IPSec, L2TP, PPTP, OpenVPN VPN Server
In the process of replenishment

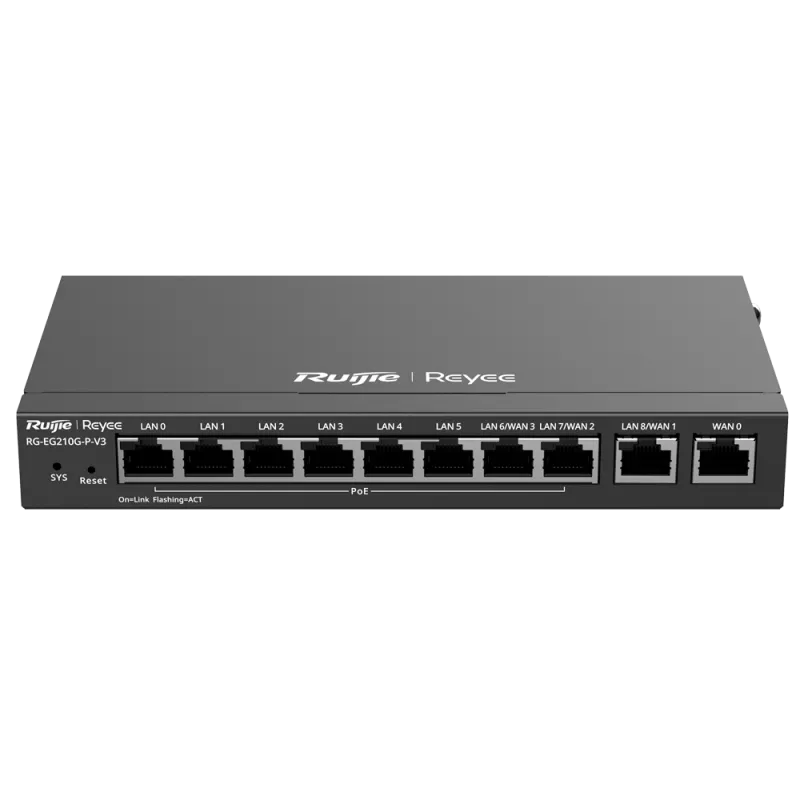

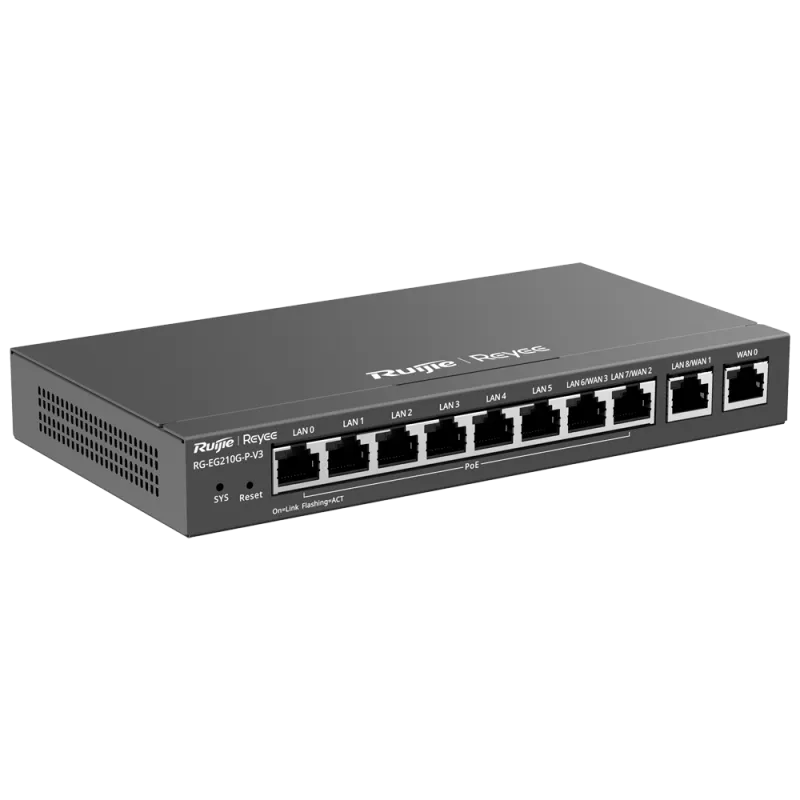

Reyee RG-EG210G-P-V3 Manageable PoE Controller Router
Overview
The Reyee RG-EG210G-P-V3 is a high-performance manageable PoE controller router designed for professional environments. Equipped with 10 Gigabit RJ45 ports including 8 PoE+ ports, it offers a complete solution for enterprise network management with a total PoE power of 110W.
Key Points
- 10 RJ45 10/100/1000 Mbps ports with 8 PoE+ ports
- Flexible WAN configuration with up to 4 ports for Failover and Load Balancing
- Bandwidth up to 600Mbps (1000Mbps in Turbo mode)
- Support for up to 200 simultaneous clients
- Centralized management via free Ruijie Cloud
- Control capacity of up to 500 devices in CA mode
- Automatic configuration and recognition of Reyee devices
Technical Specifications
| Brand | Reyee |
| Interface | 6 LAN Ports 10/100/1000Mbps, 3 LAN/WAN Ports, 1 WAN Port |
| CPU | 2 cores 880Mhz |
| RAM | 256MB |
| Flash | 32MB |
| Recommended number of clients | Up to 200 |
| Bandwidth | Up to 600Mbps - 1000Mbps Turbo mode |
| VLAN | Up to 32 VLANs |
| Technologies | Cloud Tunneling Application control and blocking (Library with over 300 applications) Web filtering Automatic bandwidth policies and control (Smart Flow Control) Real-time traffic monitoring Captive portal: One Click / Voucher / Username+Password / SMS Policy-based routing (PBR) Redundancy and load balancing Access control rules (ACL) Attack prevention (Ping / Port scanning / SYN Flood / Spoofing) Supports 802.1x IPTV via VLAN and IGMP VLAN priority SNMP v1/v2/v3 Dynamic routing |
| VPN | VPN Server/Client IPsec, L2TP, PPTP, OpenVPN |
| Number of IPsec + L2TP/PPTP VPN tunnels | 8 |
| Number of OpenVPN tunnels | 16 |
| Management in router mode | Can control up to 150 devices (APs and NBS Switches) + 128 ES Switches |
| Management in CA mode | Can control up to 500 devices (APs and NBS Switches) + 128 ES Switches |
| Electrical power source | Up to 30W per port (110W for entire device) |
| Maximum power consumption | < 130W (with PoE equipment) |
| Power supply | DC 54V/2.4A (adapter included) |
| PoE features | 8 PoE+ ports according to IEEE 802.3at PoE+ / IEEE 802.3af PoE standard |
| Operating temp. | 0º C ~ +40º C |
| Installation | Desktop |
| Dimensions | 202 (L) x 108 (W) x 28 (H) mm |
| Weight | 0.522 Kg (without packaging) |
Specifications
| 10/100/1000Base-T ports | 10 |
|---|---|
| SFP ports | 0 |
| PoE/PoE+ ports | 8 |
| Max. PoE budget | 110 W |
| Max. power consumption | 130 W |
| Power supply | 54 V DC Power Adapter, 2,4 A |
| Cloud-Management | Yes |
| Outdoor use | no |
| Max. Wan Port | 4 |
