Outdoor sensor with temperature, moisture and light sensor for IPX800 V4 by GCE Electronics
CHF64.90
Tax included
This wired wall-mounted sensor enables accurate control of relative humidity, temperature and the brightness of exterior lighting.
In stock. Ordered before 5pm, delivered the next business day.

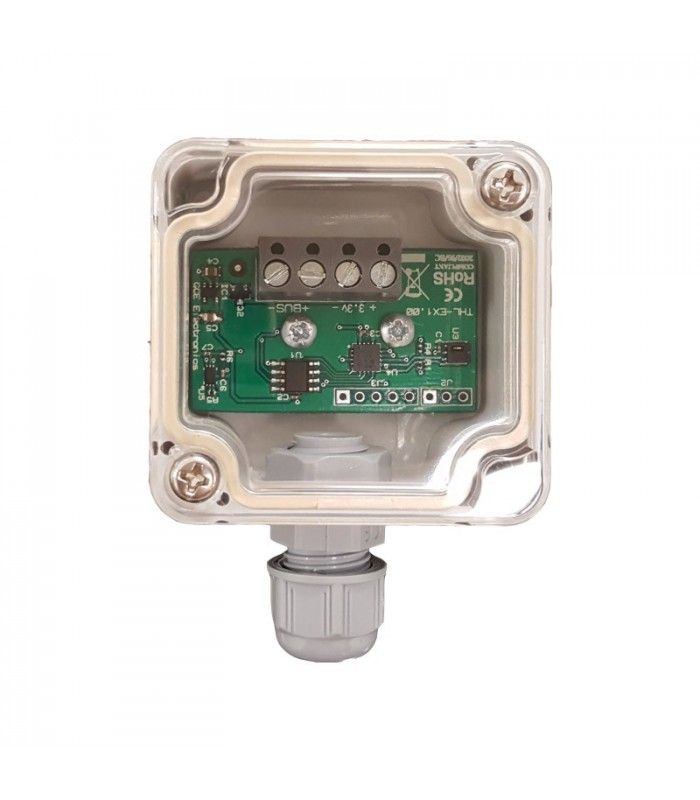

The X-THL probe can measure temperature, humidity and the presence of light. It is also possible to connect up to 14 X-THL to a single IPX800V4 thus giving you the ability to process up to 42 additional items of analogue data.
It is not a stand-alone device. Its features are only accessible via the use of an IPX800V4.
With a protection index of IP64, it can be used outdoors.
TECHNICAL SPECIFICATIONS:
- Extension port (Fieldbus, one + and - pair, category 6 network cable recommended) for IPX800V4 (cable not included)
- Temperature measurements from -40°C to +125°C (accuracy ± 0.6°C)
- Humidity measurement (Accuracy ± 3.5% at 25°C)
- Light intensity measurement (from 1 to 60,000 lux)
- Recommended power supply: from 3.3V to 5V DC (not included) Max: 12V
- Power consumption: < 1 mA
- Dimensions: 32 x 52 x 50 mm
- Protection index: IP64
Specifications
| Use | Temperature/Humidity/CO2 Monitoring |
|---|---|
| Type | Sensor |
| Function | Humidity Luminosity Temperature |
Guides
UserGuide_XTHL_Ext
User Guide for XTHL-Ext - FR
-
