NOUS - Zigbee ON/OFF module (10A DC,16A AC) - 1 Load
New
CHF19.90
Tax included
Zigbee ON/OFF module NOUS B1Z for controlling a single load up to 10A DC or 16A AC.
.png)

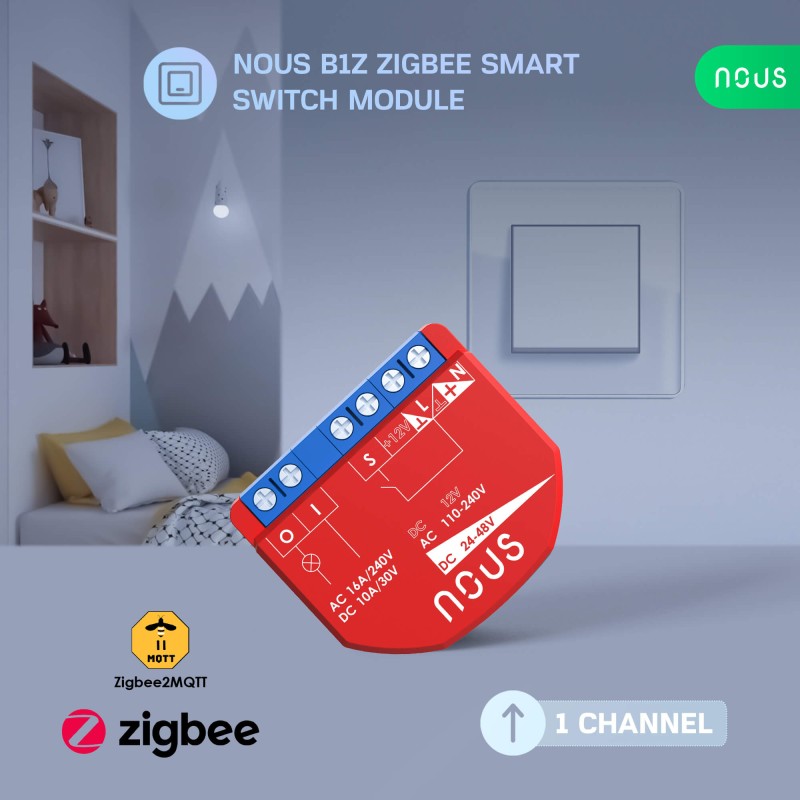

NOUS-B1Z Zigbee Module
The NOUS-B1Z module is a smart device that allows you to turn conventional electrical appliances into connected devices. It easily integrates into your electrical system to offer remote control and automation of devices via a mobile app. This module is designed to improve the comfort and energy efficiency of your home.
NOUS Zigbee 1 Load
Whether for automating lighting, controlling heating systems, or monitoring energy consumption, the NOUS-B1Z is a versatile and practical solution.
Features of the NOUS switching module
- Brand: Nous

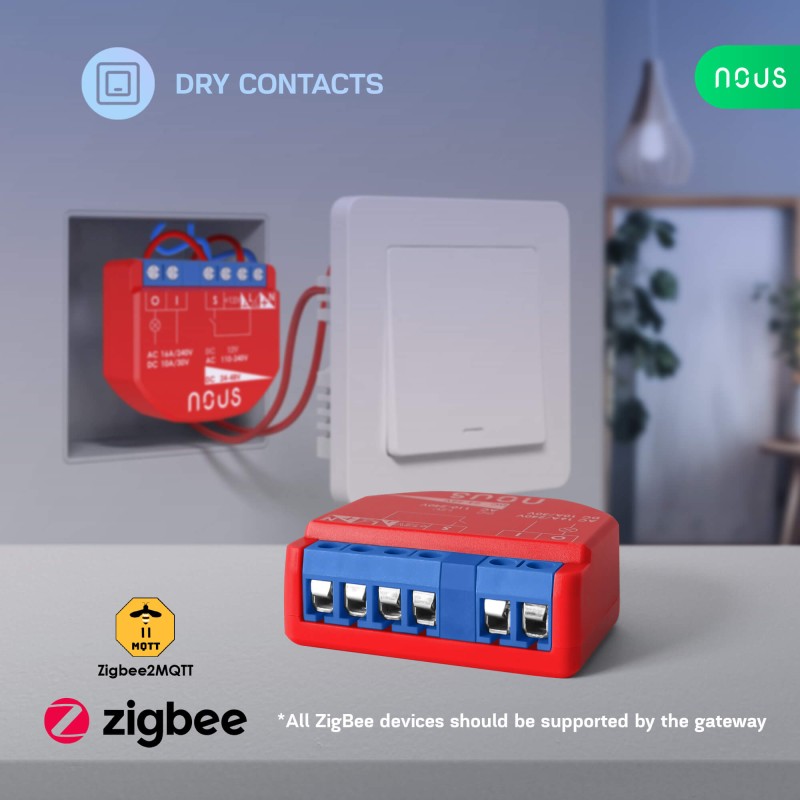

- Function: 1 channel, no power meter, dry contacts
- Certificate: CE
- Compatibility: Requires a Zigbee 3.0 hub/gateway
- Material: Flame-retardant PC V0 plastic

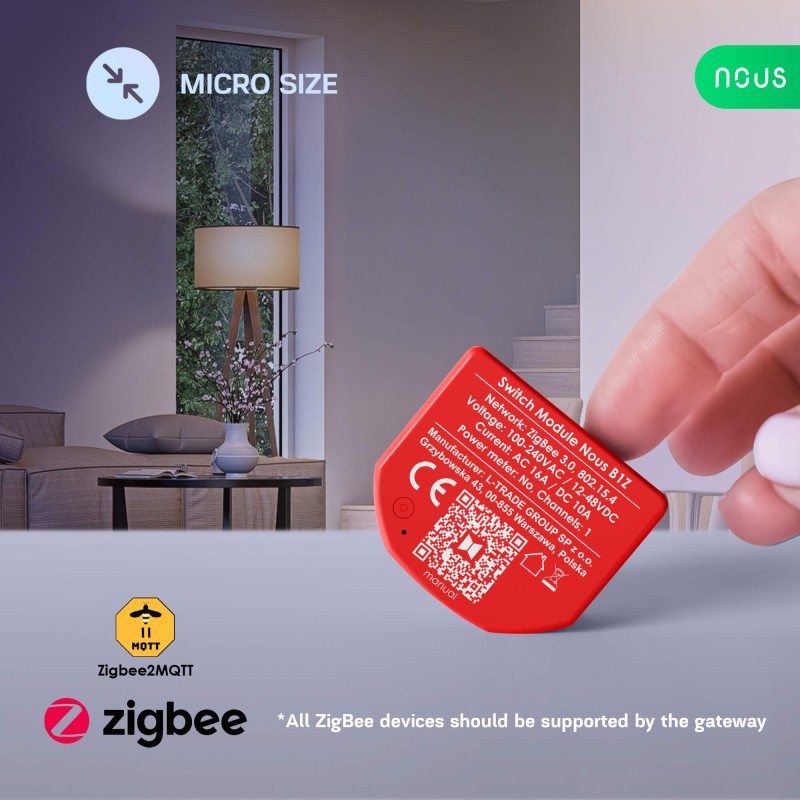

- Device dimensions: 42*37*16mm
- Maximum load: AC 16A / DC 10A
- Operating voltage range: 100-240VAC / 12-48VDC
- Operating temperature: 0ºC ~ 40 ºC
- Moisture protection level: IP20
- Device weight: 30g
- Communication standard: IEEE 802.15.4
- Protocol: Zigbee 3.0
- Control from a smartphone: Nous smart, Tuya smart life app, Home Assistant
- Compatibility with voice assistants: Alexa, Google Assistant
- Frequency range: 2400 - 2483 MHz
- Maximum transmission power: 10 dBm
Specifications
| Protocol | Zigbee |
|---|---|
| Type | Sensor |
| Function | Motion detection (PIR) |
| Gateway compatibility | Home Assistant - Full compatibility Homey - total compatibility |
| Use | Motion/Presence Detectors |
