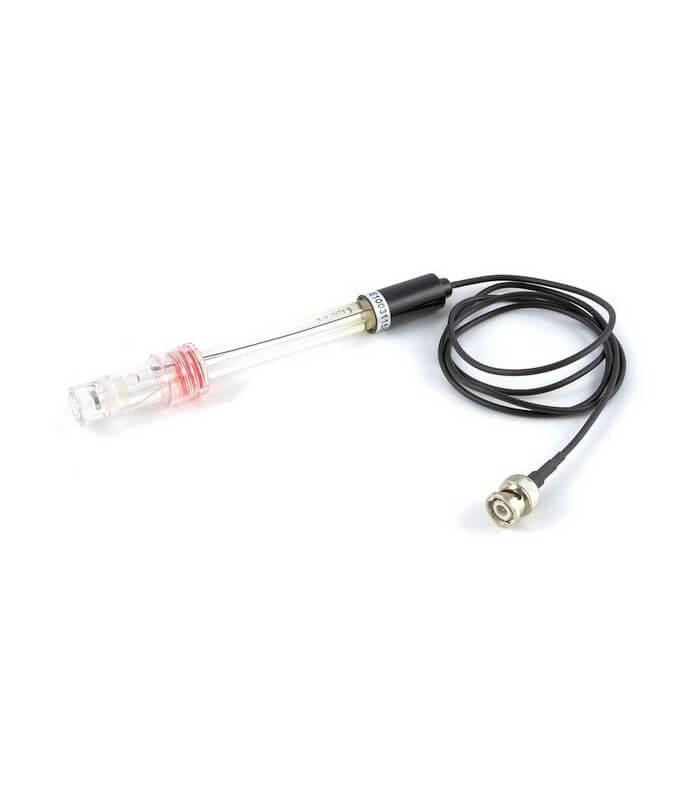

GCE Electronics - Redox-Sensor probe for extension module X200pH
CHF52.90
Tax included
This probe can be connected thanks to its BNC plug to an X200pH extension and allows the measurement of the Redox potential on an IPX800 v3 or IPX800 v4.
It is perfect for the management of your swimming pool or any other installation requiring a control of the Redox potential.
This probe can be connected thanks to its BNC plug to an X200pH extension and allows the measurement of the Redox potential on an IPX800 v3 or IPX800 v4.
It is perfect for the management of your swimming pool or any other installation requiring a control of the Redox potential.
FUNCTIONS :
- O.R.P. measurement probe
- Compatible X200pH extension for IPX800 V3 or IPX800 v4
TECHNICAL DATA :
- Measuring range : -2000mv / + 2000mv
- Operating temperature: 0 - 110°c
- Measurement at 220mv : 218mv
- Measurement at 470mv : 473mv
- Cable length: 1 Meter
- Termination: BNC
- Dry storage temperature: 10 - 30°c
Specifications
| Protocol | IP |
|---|---|
| Type | Accessories for Smarthome gateways Accessory |
| Function | pH / ORP measurement |
