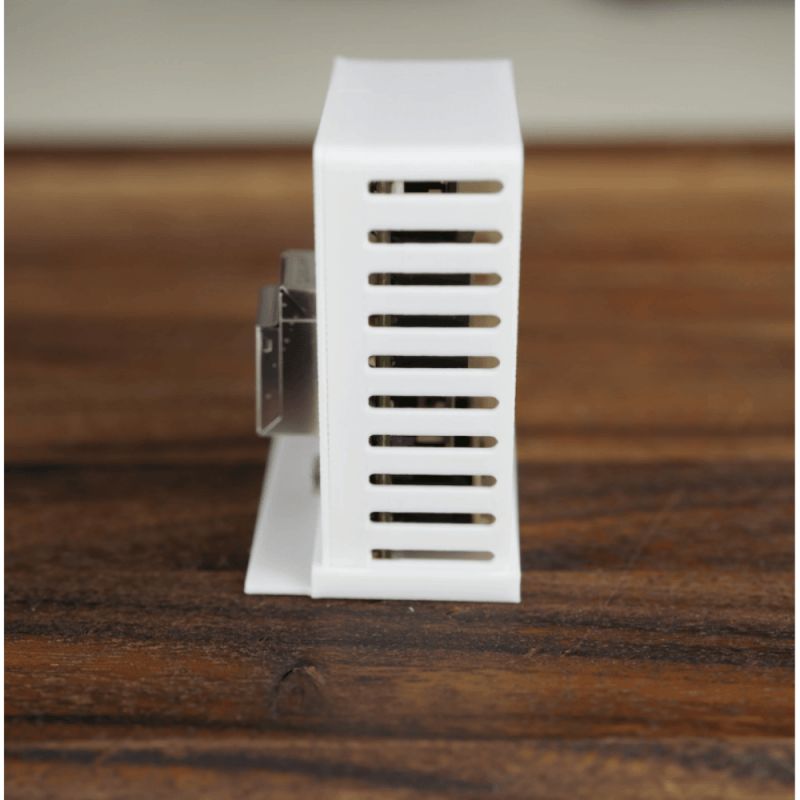

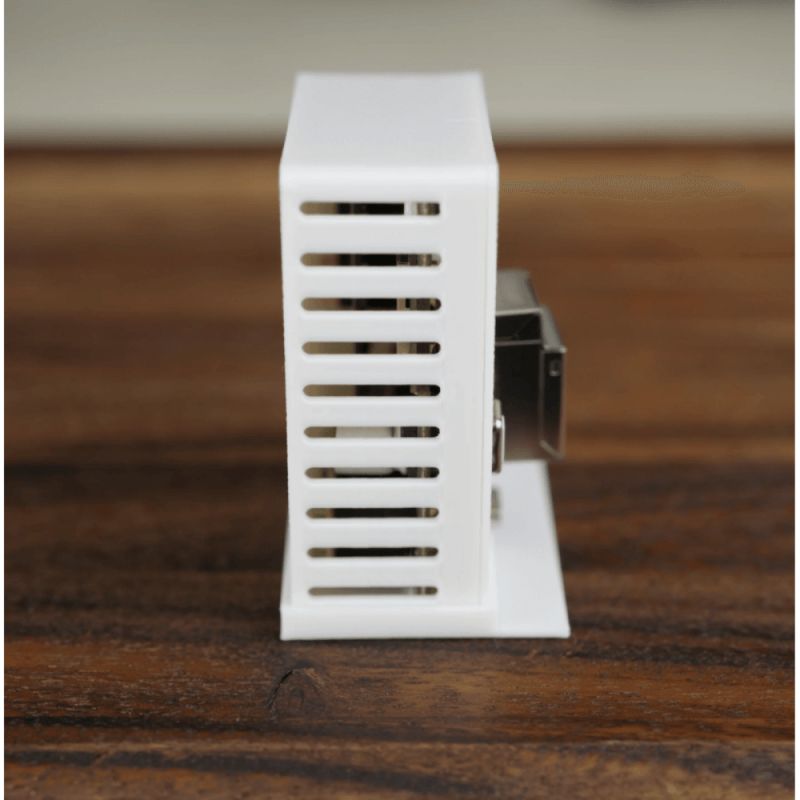

Apollo - Multisensor mmWave PoE R PRO-1 Sensor
Detect movements and CO₂ with the PoE mmWave R PRO-1 sensor, compatible with ESPHome, Home Assistant, and environmental sensors.
Introduction
The Apollo Automation R PRO-1 multisensor is a compact and powerful sensor based on mmWave technology. It is designed to detect movement, monitor the indoor environment, and integrate seamlessly into a connected home thanks to its Wi-Fi, Bluetooth, and PoE (802.3) connectivity. It includes the LD2450 radar and, optionally, the LD2412 for more precise detection of stationary presence.
With its modular design and advanced features (RGB LED, buzzer, UV detection, LUX, optional CO₂), the R PRO-1 is perfect for smart automation, visual and sound alerts, as well as air quality monitoring. Compatible with ESPHome, it is fully open source and operates locally, without cloud.
Key Features
- High precision motion detection with mmWave radar LD2450
- Stationary presence detection with LD2412 module (optional)
- Configurable multi-zone detection
- Environmental monitoring with UV, LUX, CO₂ sensors (SCD40 option)
- RGB LED for customizable visual notifications
- Piezoelectric buzzer for sound alerts
- Smart lighting control based on presence and brightness

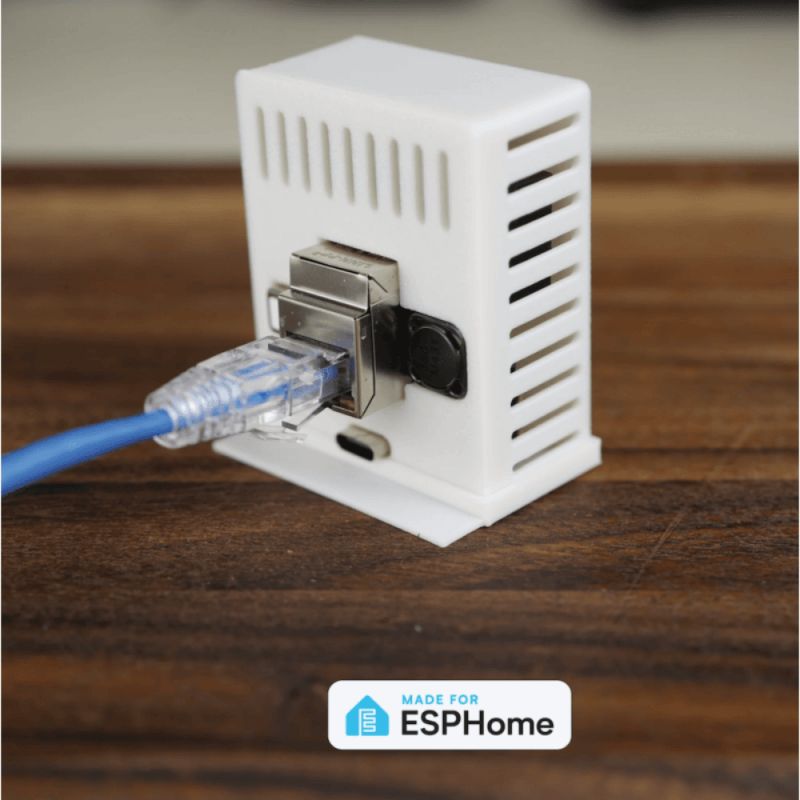

- Powered via PoE (802.3) or USB-C

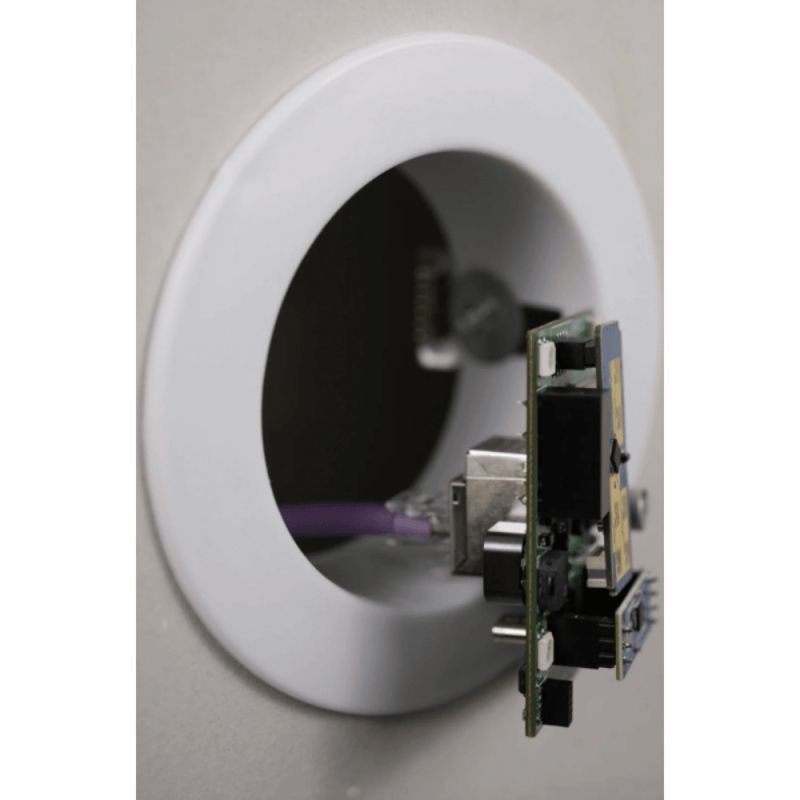

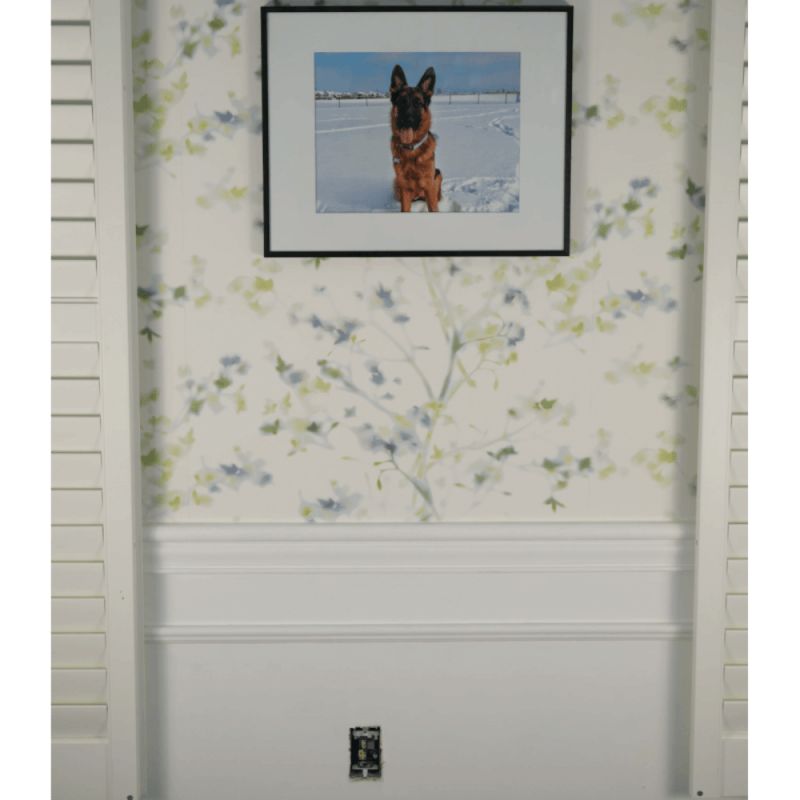

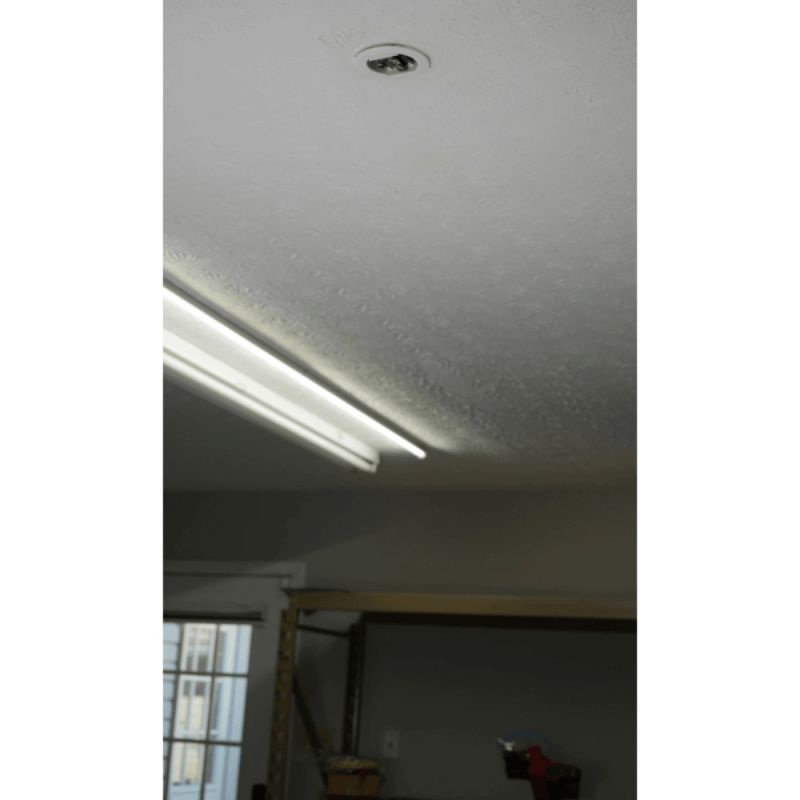

- Wall, ceiling, or under-bed installation for advanced automation
- Operates locally, no cloud or subscription required
Technical Specifications - Apollo Automation R PRO-1
- Brand: Apollo Automation
- Model: R PRO-1
- Technology: mmWave Radar (LD2450 included, LD2412 optional)
- Connectivity: Wi-Fi, Bluetooth
- Power Supply: PoE (IEEE 802.3) or USB-C
- Dimensions: approximately 57 x 45 mm
- Integrated Sensors:
- UV Sensor: LTR390
- Light Sensor: LTR390 (LUX)
- NDIR CO₂ Sensor (SCD40 option)
- LED: 2 addressable RGB LEDs
- Audio: Integrated piezoelectric buzzer
- Mezzanine Port for additional modules
- Firmware: Compatible with ESPHome (Wi-Fi or PoE)

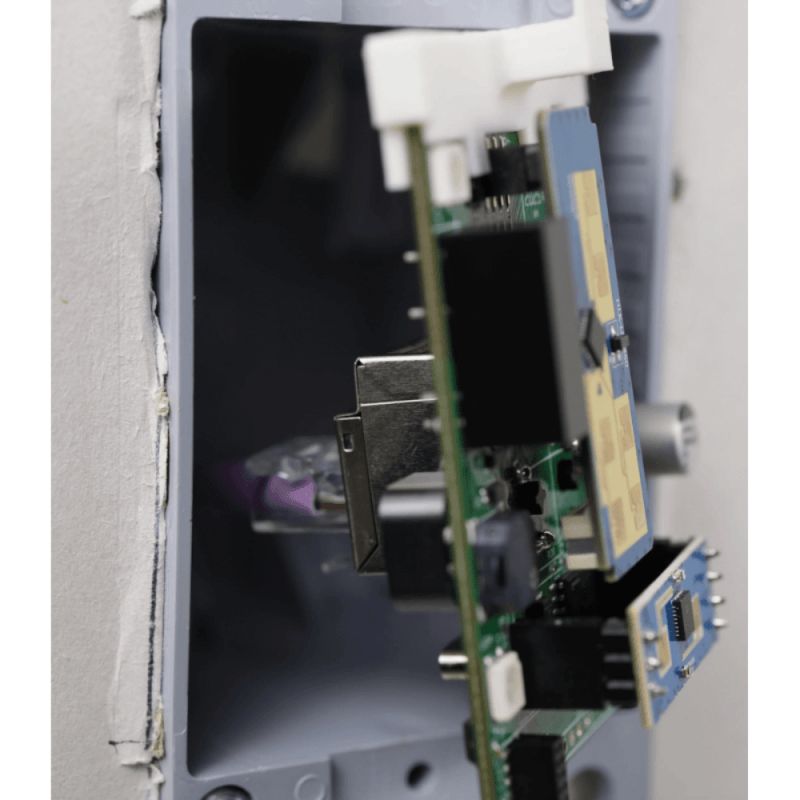

- Installation: Wall, ceiling, or box mounting

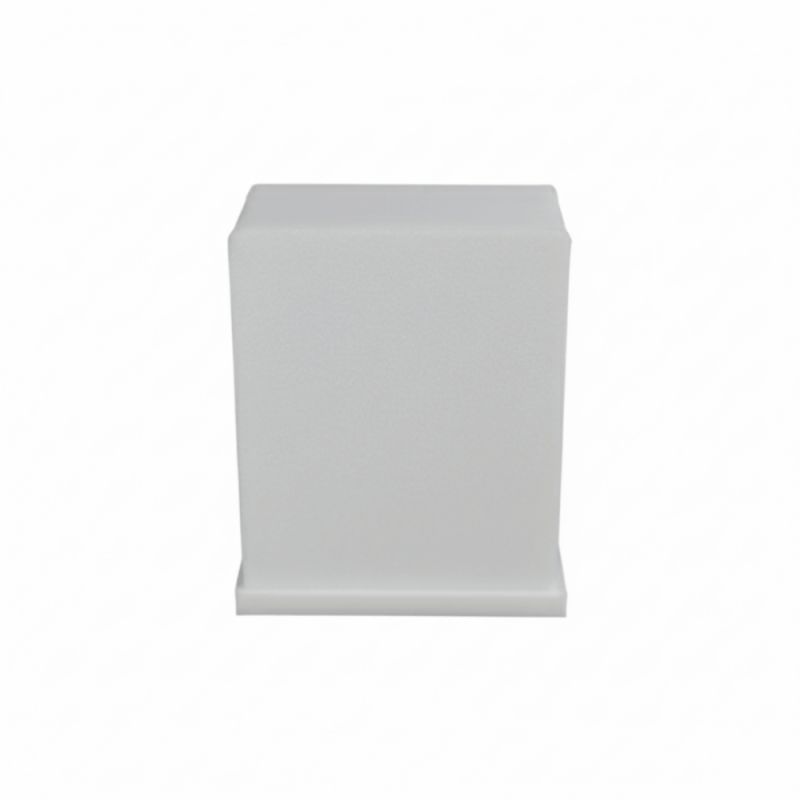

- Enclosure provided, ready for installation
Compatibility:
- ESPHome
- Home Assistant
Compatible Applications:
- Tuya Smart Life (via integration or bridge)
- Google Home (via Home Assistant)
Specifications
| Type | Sensor |
|---|---|
| Function | CO2 Luminosity Motion detection (PIR) Presence detection (mmWave) |
| Gateway compatibility | Home Assistant - Full compatibility |
| Use | Motion/Presence Detectors |
