GCE Electronics - Three-phase energy meter
CHF59.00
Tax included

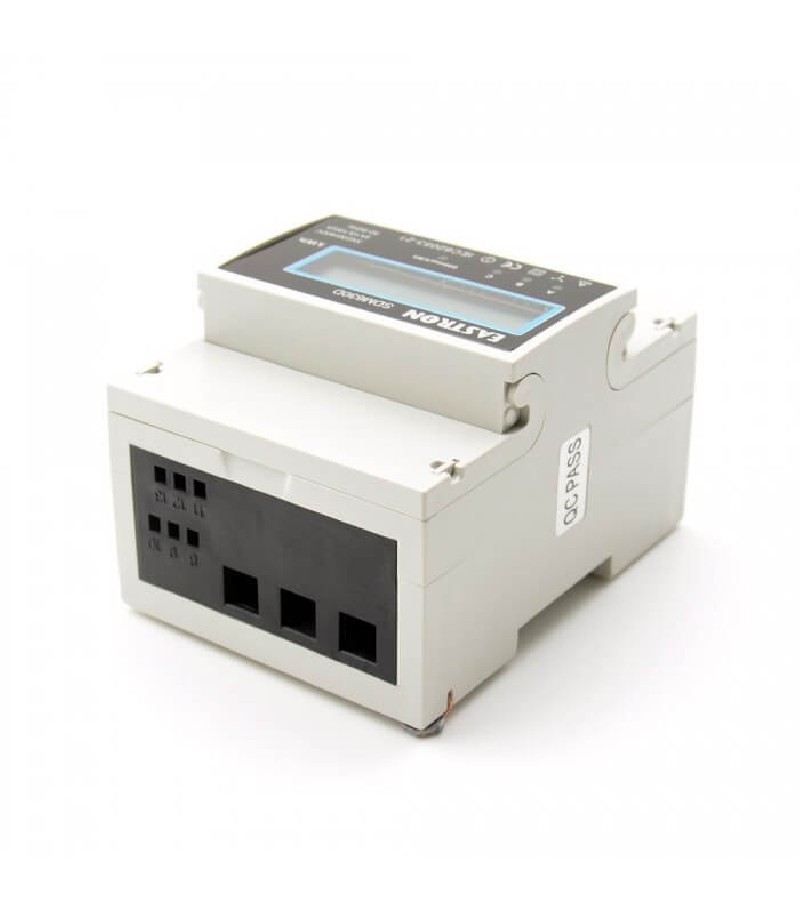

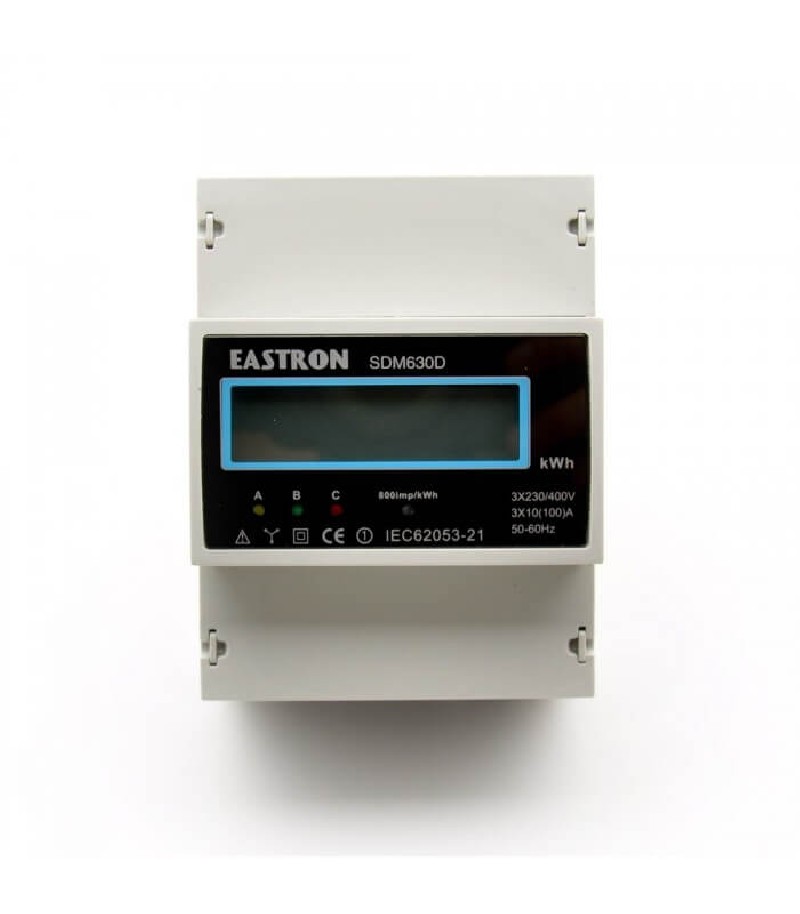

This small three-phase energy meter will easily fit into your electrical box. Connected to an IPX800 or to an eco-device, it will allow you to follow the consumption of a circuit or a three-phase installation with precision.
In stock. Ordered before 5pm, delivered the next business day.
THREE-PHASE ENERGY METER (3 PH + N). 400 PULSES / KWH. DIGITAL DISPLAY. MAXIMUM CURRENT 100 A.
This small three-phase energy meter will easily fit into your electrical box. Connected to an IPX800 or to an eco-device, it will allow you to follow the consumption of a circuit or a three-phase installation with precision.
FUNCTIONS :
- Led presence voltage for each phase.
- Digital display
TECHNICAL DATA :
- 3 Phases + Neutral ( 3 x 230/400v 50-60Hz)
- Rated current 10A / Max 100 A
- Pulse output - 400 imp per kWh
- 1 Led Flash
- IEC 62053-21 compliant
- IP51
- Reduced size: H100 x L76 x W66
- Weight: 0.3Kg
Specifications
| Use | Energy Use Monitoring |
|---|---|
| Type | Accessory |
| Function | Electricity Consumption |
| Protocol | EnOcean IP |
-
