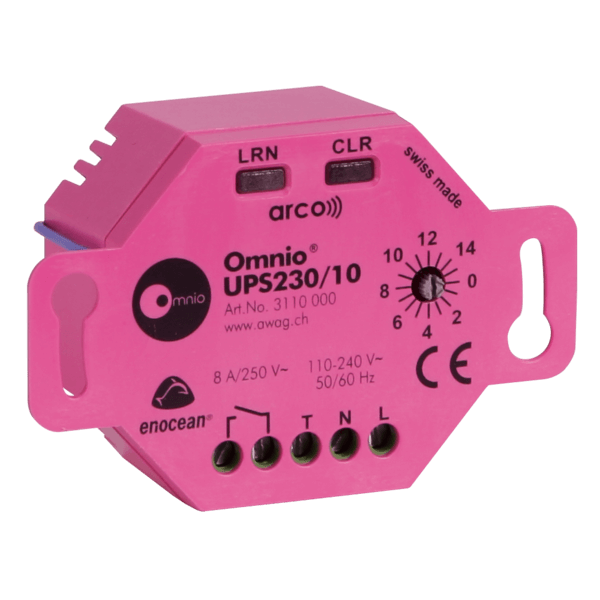

OMNIO - Switching actuator 1-channel UPS230/10

Presentation

The Omnio flush mounted multi switching actuator 1-channel UPS230/10 is a device for switching electrical loads. Its potential free output is able to be controlled by up to 50 Omnio radio transmitters. Each transmitter can be programmed with one of over twenty different functions, for example switch on, switch off, staircase light, sequential push-button, step-switch (AW20), timer (AW23/24/25), window and sliding door surveillance, programmable scenes and presence simulation.

These functions can also be assigned to a conventional push-button or a switch connected to the extension input. Bidirectional communication, EEP D2-01-01. ARCO ready (AWAG Remote Commissioning).

In addition, this actuator can be used as repeater in case of range issues. Suitable for flush mounted sockets.
