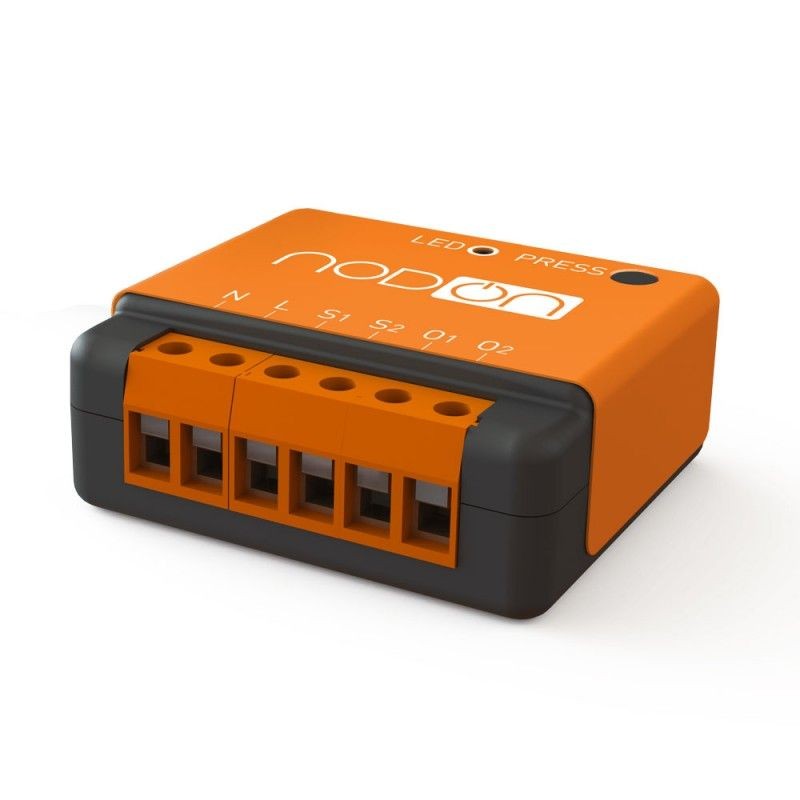

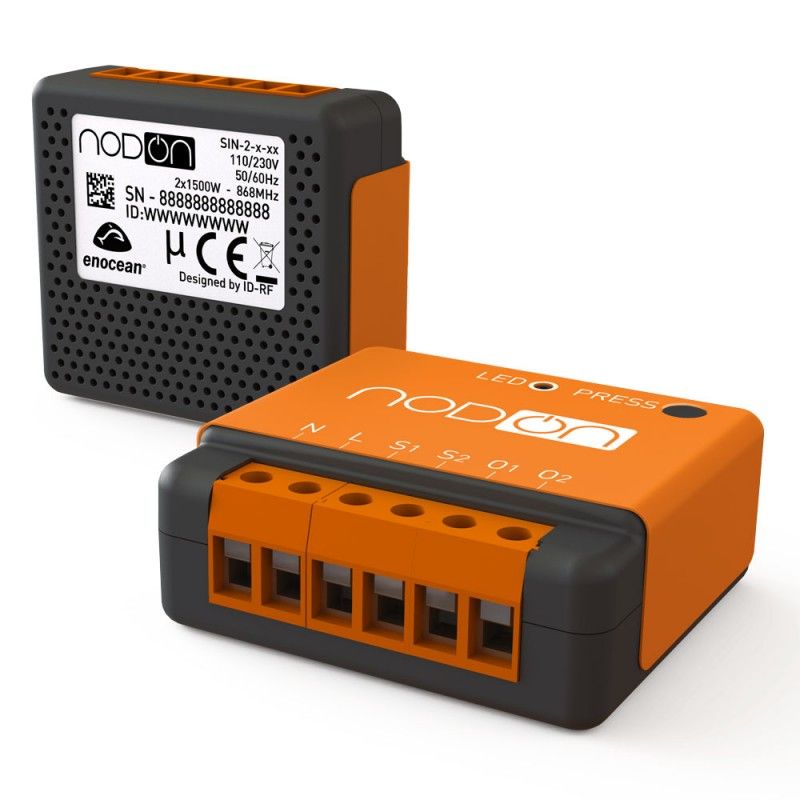

NodOn - Enocean In Wall Module double relay (SIN-2-2-01)

Presentation

The NodOn in-wall module can be controlled through an EnOcean compliant home automation system or directly through other EnOcean controllers such as the NodOn Soft Remote, wall switch, or card reader. Mounted behind your existing wired wall switch or in the ceiling, the NodOn in-wall module can very simply turn your home into a smart home, controlling lights, heaters, electrical devices, and much more.

The analog wired wall switch inputs allow adding an additional wireless (and without battery) two-way switch in less than 10 minutes, without any drilling or wiring!

Switching Capacity

The 2 versions (1 or 2 channels) of the NodOn in-wall module offer high switching capacity that can support almost all household lights and devices.

Ultra Low Profile

The small dimensions of the NodOn in-wall module allows it to be mounted anywhere in the home - behind a wired wall switch, behind a power plug, in the ceiling, and even in the breaker box.

Analog Inputs

The 2 analog inputs of the NodOn in-wall module allow it to be connected to an existing wired wall switch and to turn all your lights into a smart and progressive lighting system.

Economical & Green

By using EnOcean technology-based NodOn® products, you will reduce your energy consumption and control your electrical devices without any batteries or waste. Economical and green!

FEATURES

• Remotely controls two lights/devices
• Installs behind existing switches
• ON/OFF function
• Small, discreet, and aesthetically appealing
• Ease to use and install
• EnOcean technology

Technical Data

• Power supply: 230V +/-10% (50 Hz)
• Maximum output power: 1*2.3 kW : Delivery slip - Version 1– Reference : 2*1.1 kW
• Self-consumption: <1W
• Operational temperature – 0°C to 40°C - Altitude – 2.000 m
• EnOcean® radio protocol: 868.3M Hz Bidirectional - EEP: D2-01-0E (1 channel) / D2-01-12 (2 channels)
• Range 30 m

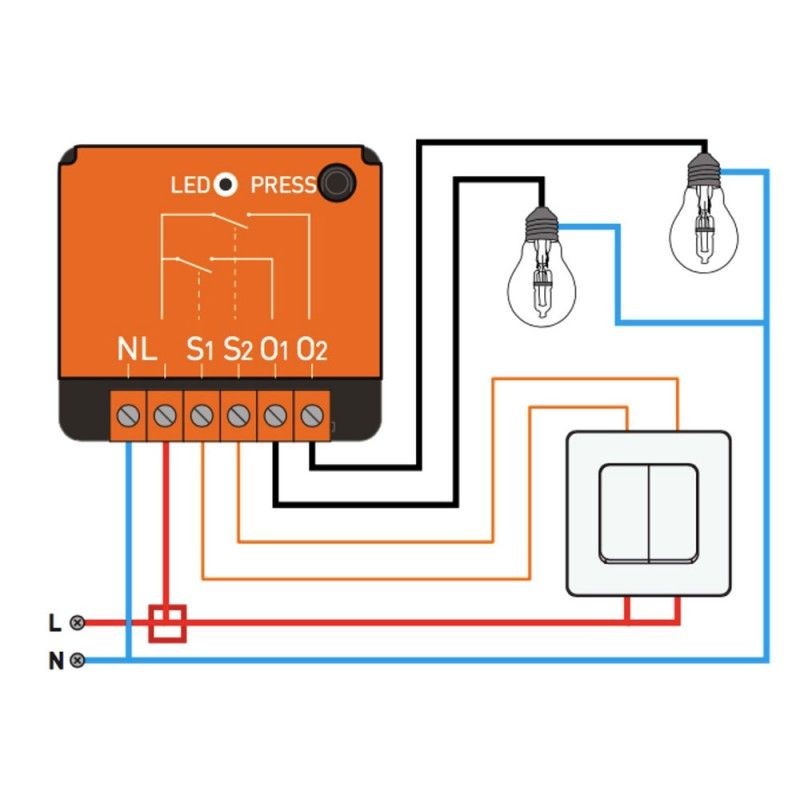

• 2 inputs for existing wired wall switch(es)
• Dimensions: 40*45*16.9 mm
• Standards: EN301489-1 V1.6.1: 2013, EN301489-2 V1.6.1: 2013, EN300220-1 V2.4.1: 2012, EN300220-2 V1.9.2: 2011, EN60669
