Heatit Controls - 16A Z-Wave+ 700 ZM Single Relay Switch Module

PRESENTATION

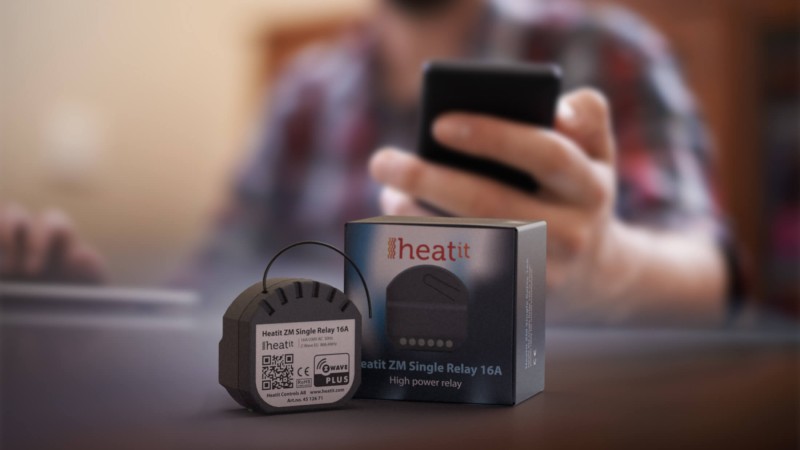

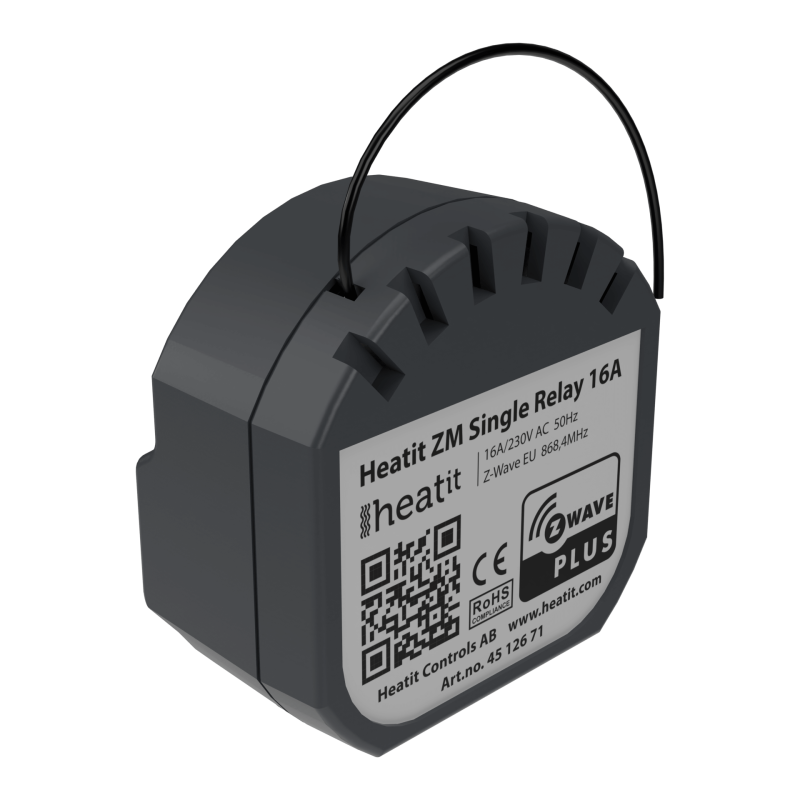

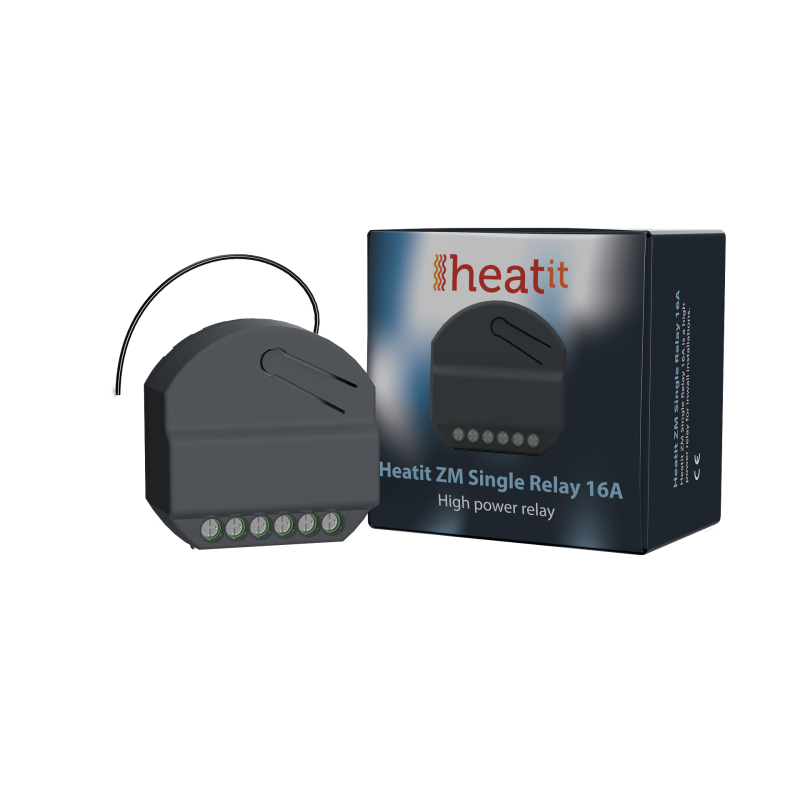

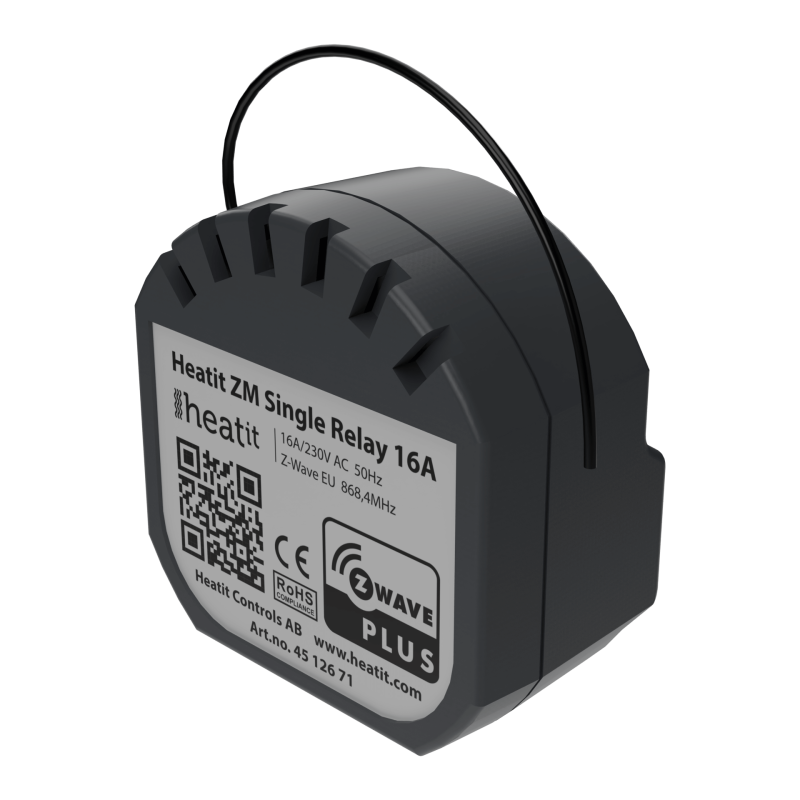

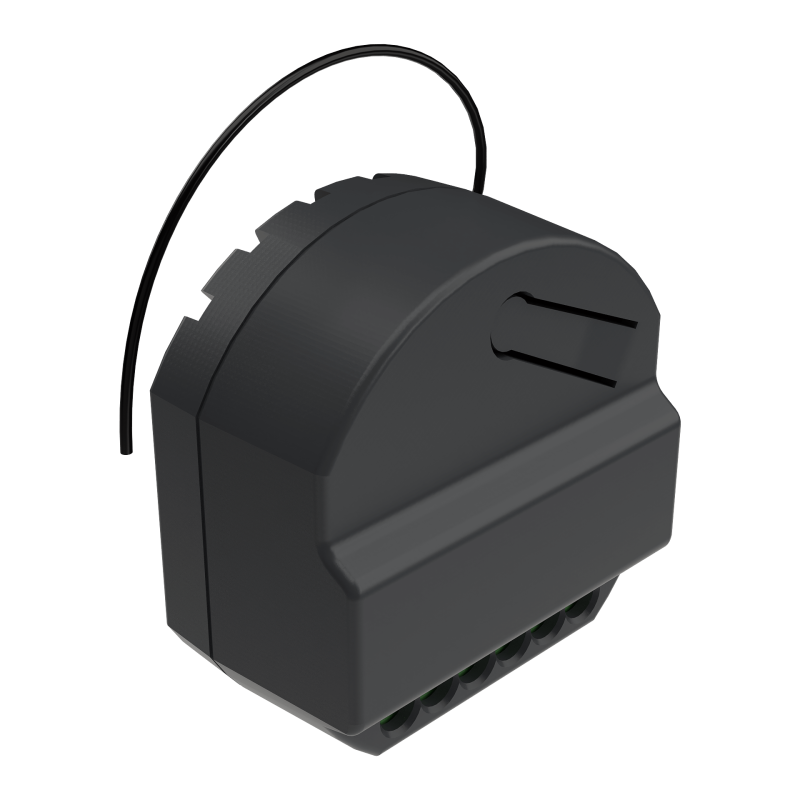

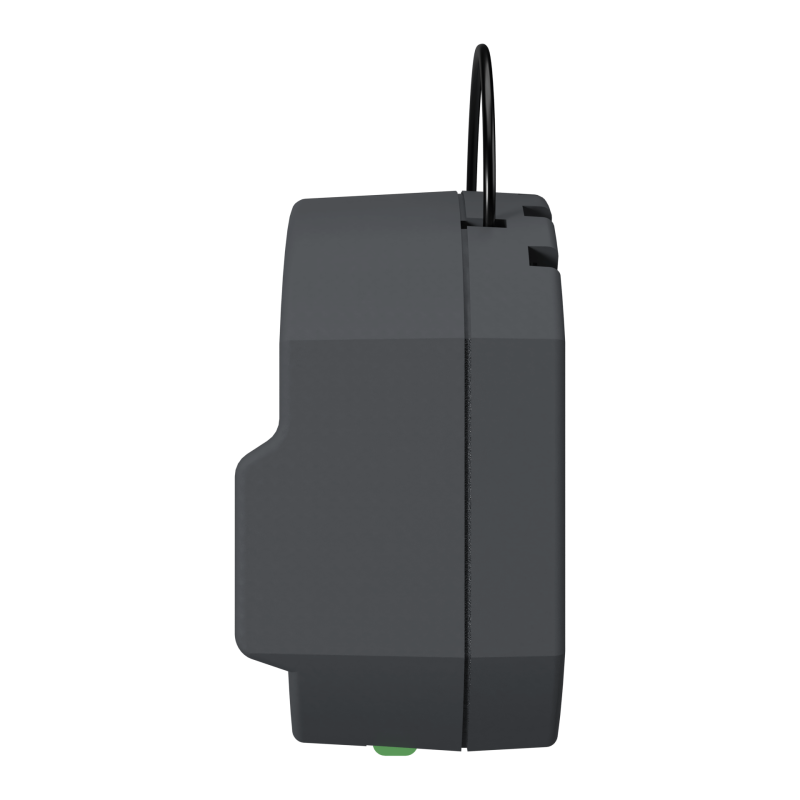

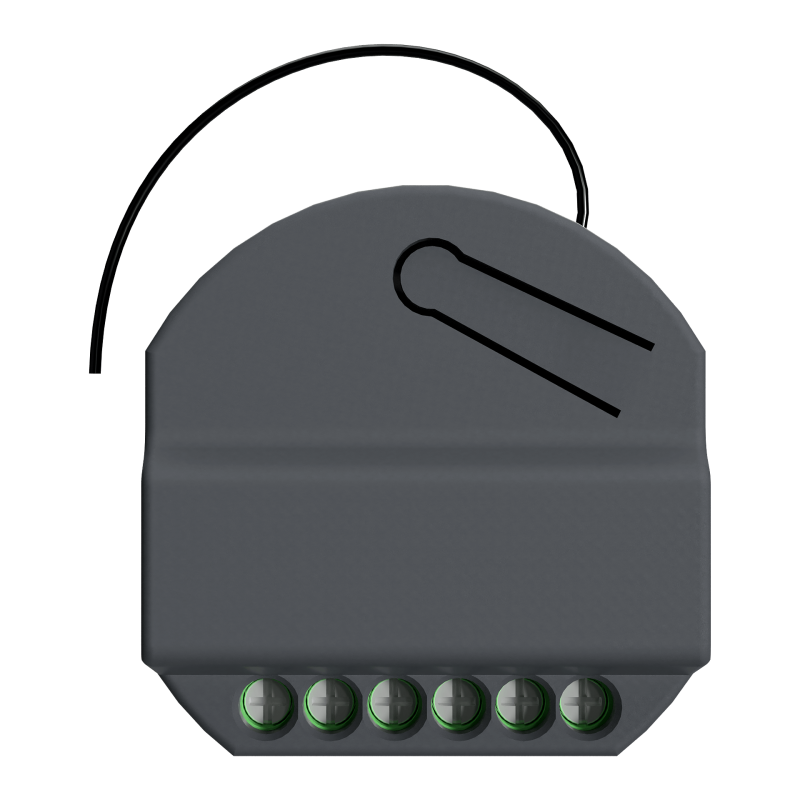

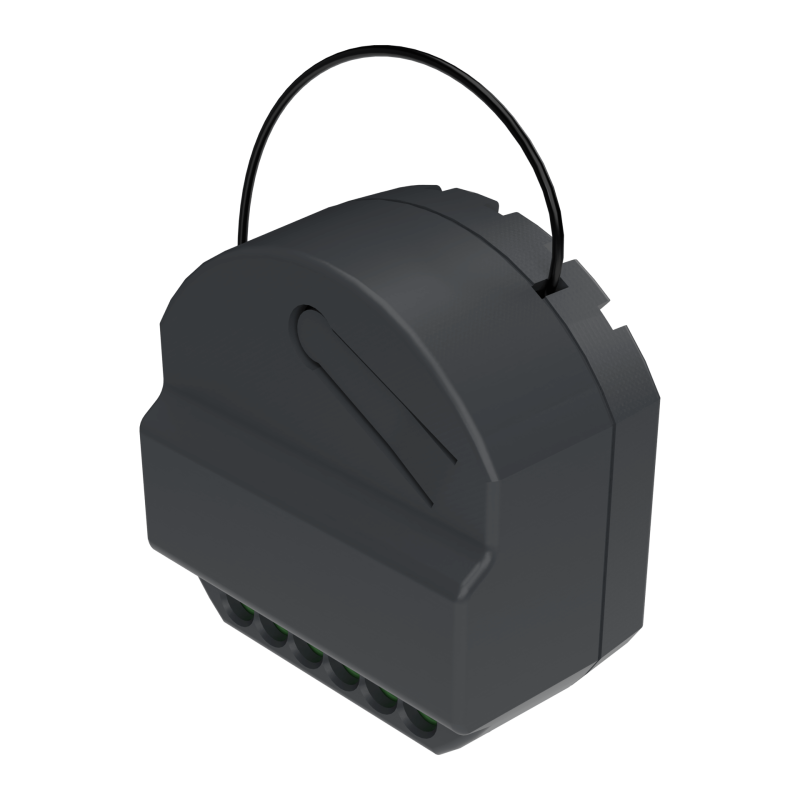

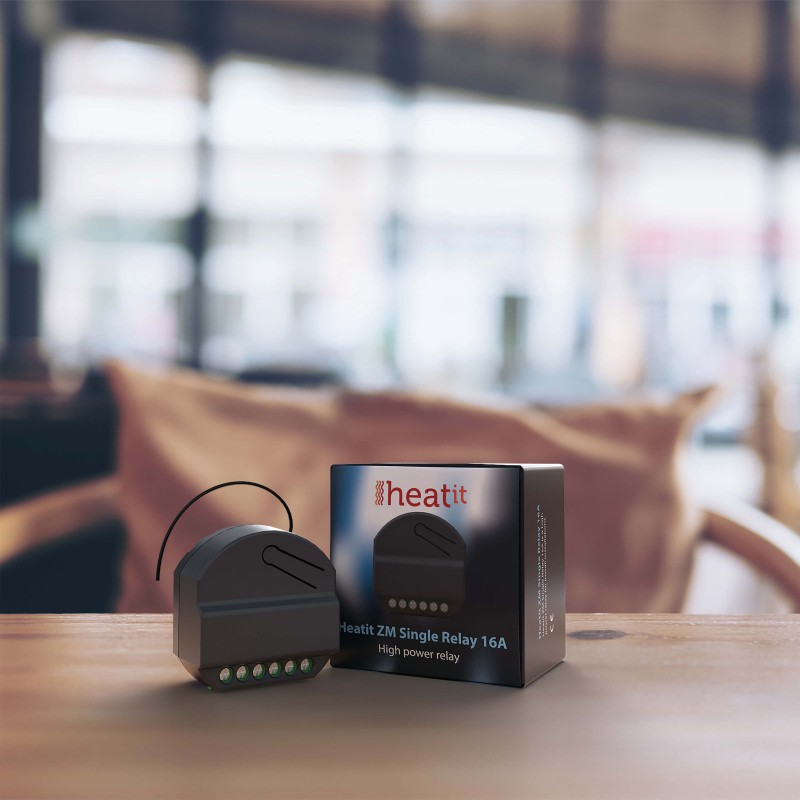

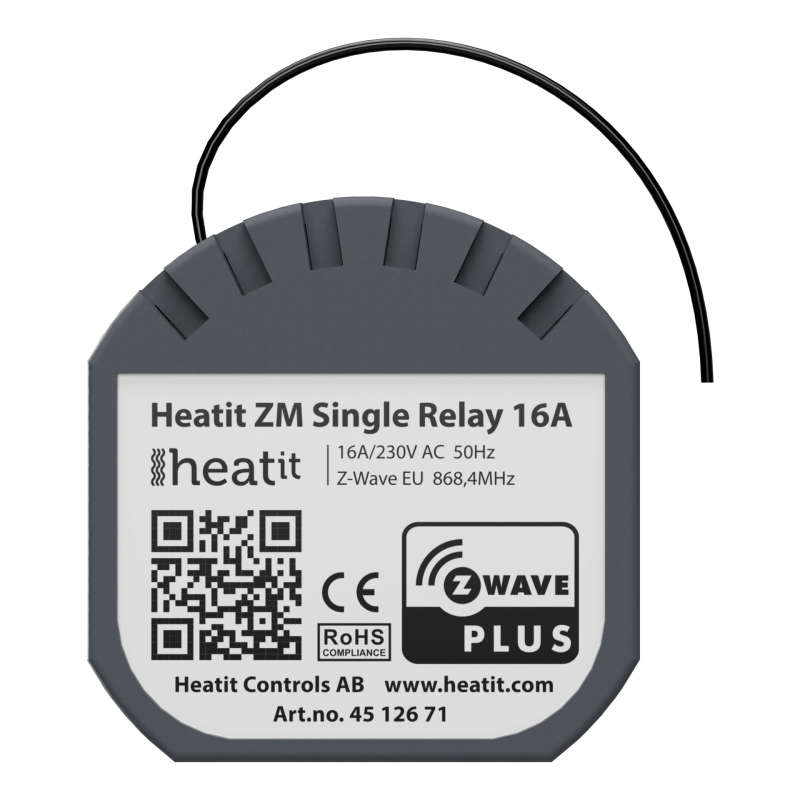

Heatit ZM Single Relay is a high power relay for in-wall installations. The relay allows you to control connected devices either through your Z-Wave network or via a wired switch. The module is equipped with a 16A relay and has a scene controller functionality.

The Heatit ZM Single Relay has a power metering feature that allows you to monitor the power consumption of your connected devices.

Heatit ZM Single Relay has SmartStart. This feature allows the user to include all devices with SmartStart by scanning the QR codes on the devices. On startup all the devices will automatically be included in the gateway (requires SmartStart compatible primary controller).

FEATURES

• High power relay for in-wall installations
• 16A/3600W
• SmartStart
• Scene Controller
• Firmware update (OTA)
• Power Metering
• Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class

TECHNICAL DATA

• Load (Ampere):16
• Chip:Z-Wave 700 chip
• Voltage:230V 50Hz
• Min. working temperature (°C):5
• Ingress protection (IP):IP 20
• Certifications:z-wave-plus-v2
• International standard:WEE 2002/96/EC / ,RoHS 2002/95/EG / ,IEC 965-2-1 / ,ETSI EN 300 220-2 V3.1.1 (2017-02) / ,ETSI EN 301 489-3 V2.1.1(2017-03) / ,EN 62479:2010 / ,EN 60669-2-1:2004 + A1:2009 / ,EN 60669-2-5:2016 / ,EN 60669-1:2018 / ,EN 60669-1:2004/ A12:2010
