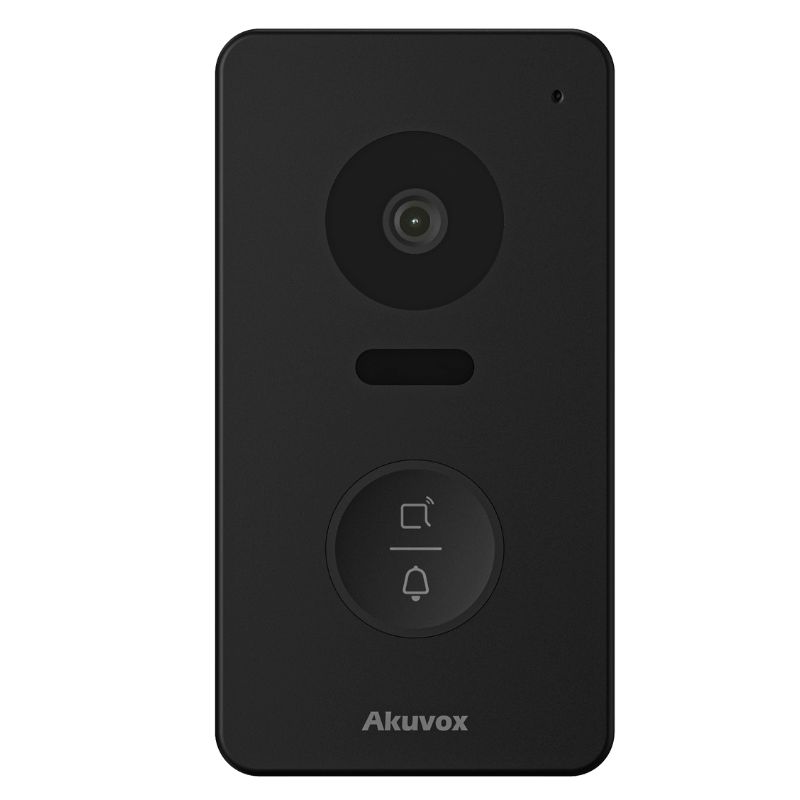

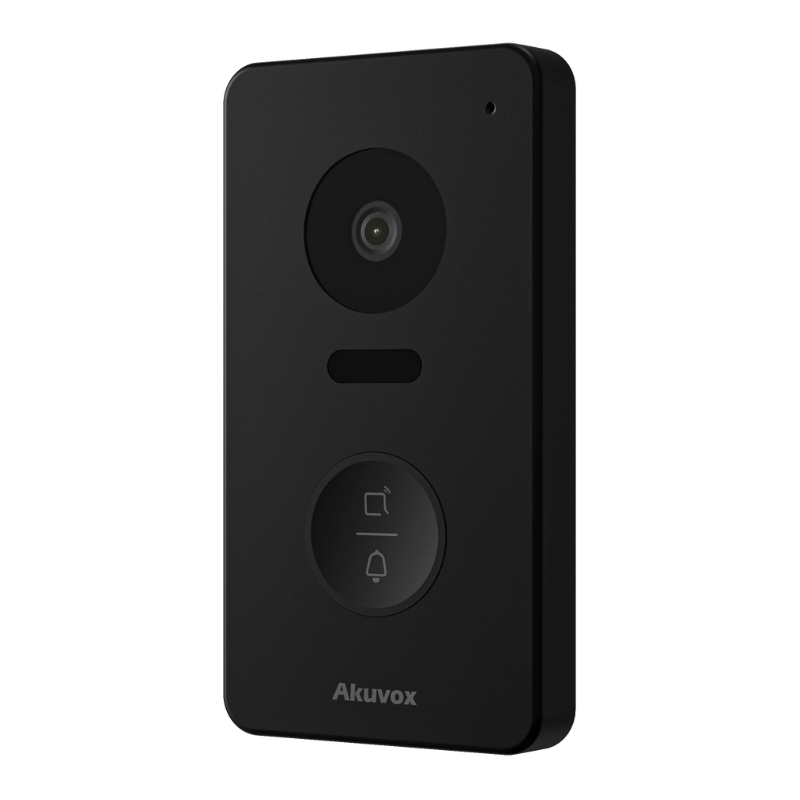

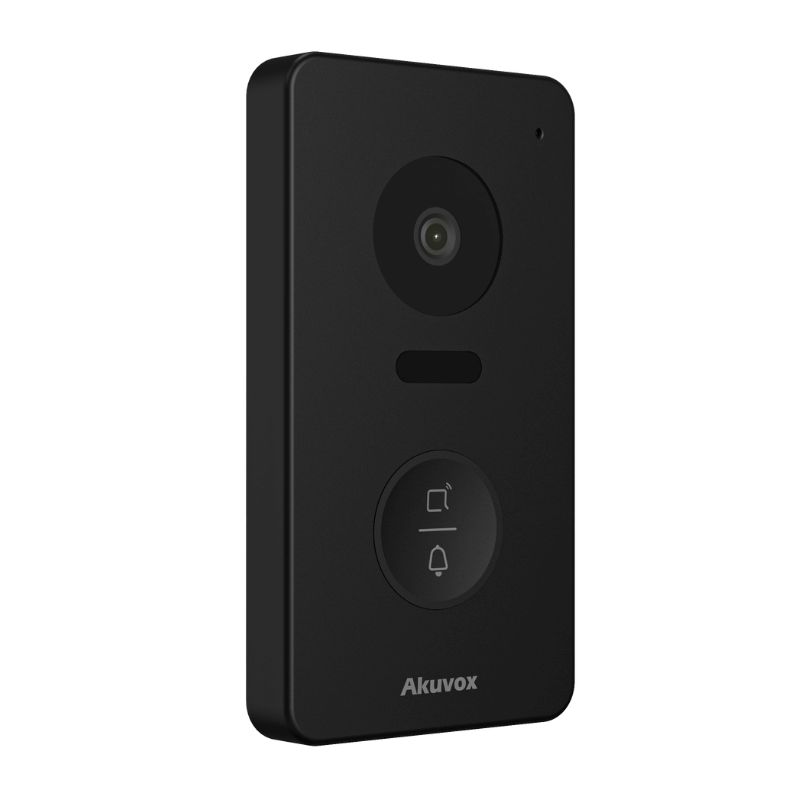

Akuvox - Compact video doorphone IP E13S - 1 doorbell with RFID/NFC badge reader - surface mount

Akuvox E13S is a compact, single-button SIP video intercom specially designed for medium-sized residential buildings. Combining elegant design, advanced features and ease of installation, it's the perfect answer to modern security and access control needs.

Highlights

• 2MP HD camera with automatic illumination for clear surveillance, even in low light.
• RFID/NFC reader compatible with MIFARE cards and SmartPlus mobile application for keyless access.
• HD two-way audio for clear communication with visitors.
• Compact, modern design with durable plastic housing, suitable for surface-mounted or flush-mounted installations.
• IP65 certification ensures weather resistance for outdoor use.
• Power supply via PoE (802.3af) or 12V DC adapter for installation flexibility.
• Easy integration with SIP-based VoIP systems and ONVIF compatibility for centralized video surveillance



A combination of style and practicality

The E13S features soft lines and a symmetrical design that provide a sense of visual balance and minimalist beauty. Despite its compact form, it offers crystal-clear audio quality, access control capabilities and app-based control, providing both convenience and security.

Clear communication

Equipped with a 2MP camera with 1080p resolution and WDR technology, the E13S guarantees exceptional video clarity, even in difficult lighting conditions, so you always know what's going on at your door.

Seamless installation

Designed for easy installation, it fits neatly into a simple standard box with minimal wall protrusion, or can be wall-mounted using a standard type 86 electrical box.

Designed for outdoor use

IP65-rated and operational in temperatures ranging from -40°C to +60°C, the E13S is ready to withstand a variety of outdoor environments

SIP compatible

Akuvox doorphones and displays are truly SIP-compatible. You can configure your Akuvox equipment to make SIP calls, using your SIP account for example. This means your doorphone can call a landline or mobile phone, for example.

Cloud access and subscription

Akuvox products can be used with or without cloud access. Access to theAkuvox cloud is via the SmartPlus smartphone app. It enables you, for example, to receive video calls, activate relays, generate temporary access QR codes, consult visit history, trigger photo-taking, etc.

If you buy a video doorkeeper and a screen from us at the same time, we'll give you the cloud for life. Unlike the license you could buy on our site, the version we offer does not include the possibility of making fixed-line calls.

If you don't want a screen, you can choose to buy a cloud license for one year, or you can buy a lifetime cloud license.

These licenses are valid for one residence/family, up to a total of 4 cloud users. Beyond 4 users, a subscription of CHF 2 per month will be required for each additional user (for the 5th, 6th etc.).

Choosing reliable equipment

Akuvox door entry systems are made from robust materials. They are designed to withstand sub-zero temperatures, heat and bad weather.

All Akuvox products come with a 2-year warranty and are built to last. Akuvox is part of Star-net, a $1.6 billion group with over 4,000 R&D engineers (70% of the workforce).

Akuvox is China's leading supplier of intercom solutions.

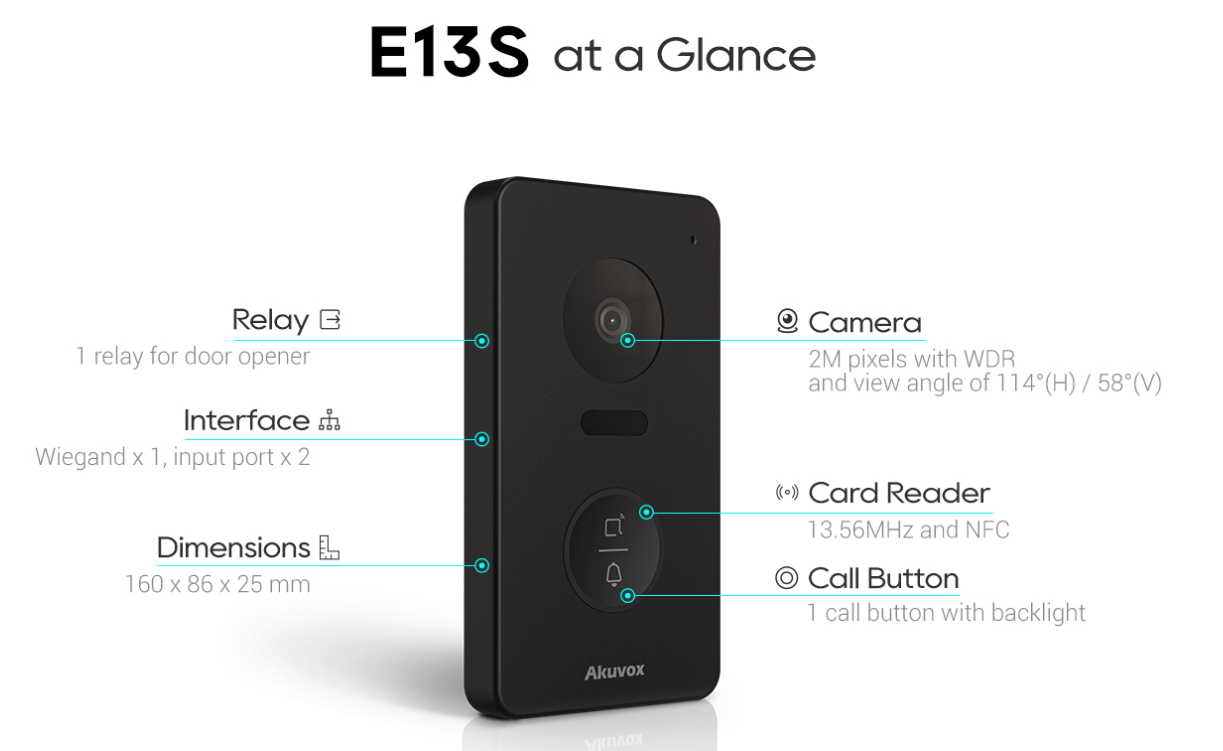

TECHNICAL SPECIFICATIONS

• Camera: 1/2.8" CMOS sensor, 2 megapixel resolution.
• Lighting: Integrated LED with automatic activation in low-light conditions.
• Audio: Built-in microphone and speaker for two-way communication.
• Call button: Unique, making it easy for visitors to use.
• Card reader: 13.56 MHz frequency, compatible with MIFARE Ultralight, Classic, Plus, Desfire EV1/EV2, and NFC Type 2 cards.
• Connectivity
  • SIP: Compliant with SIP protocol for VoIP integration.
  • Wiegand: Port available for integration with third-party access control systems.
  • Inputs/Outputs: 1 output relay, 2 inputs for additional sensors or buttons.
• Power supply
  • PoE: Complies with standard 802.3af.
  • Adapter: 12V DC, 1A (not included).
• Dimensions: Compact for discreet installation.
• Operating temperature: -20°C to +55°C.
