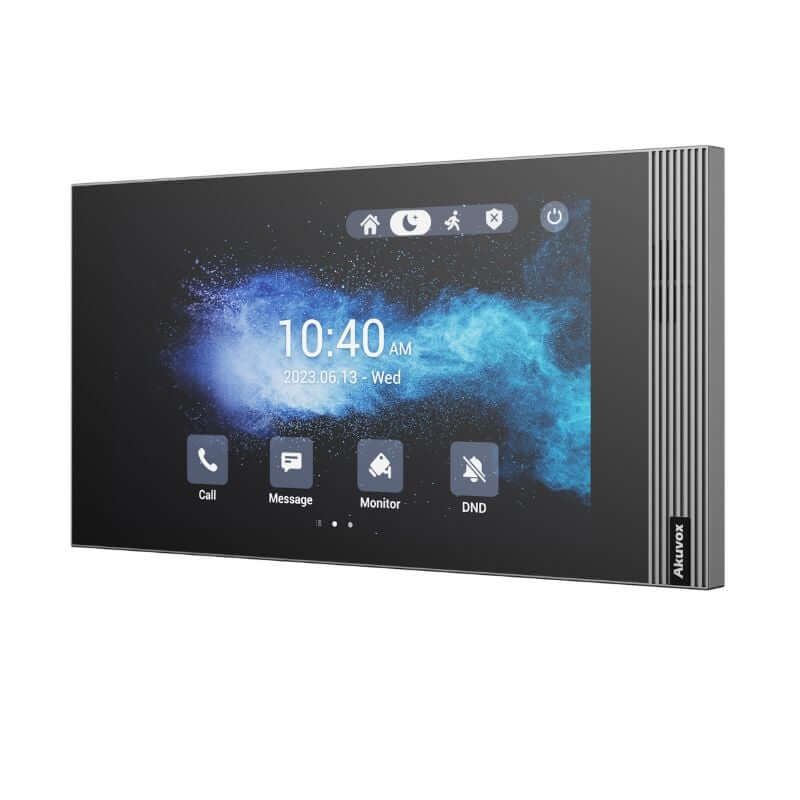

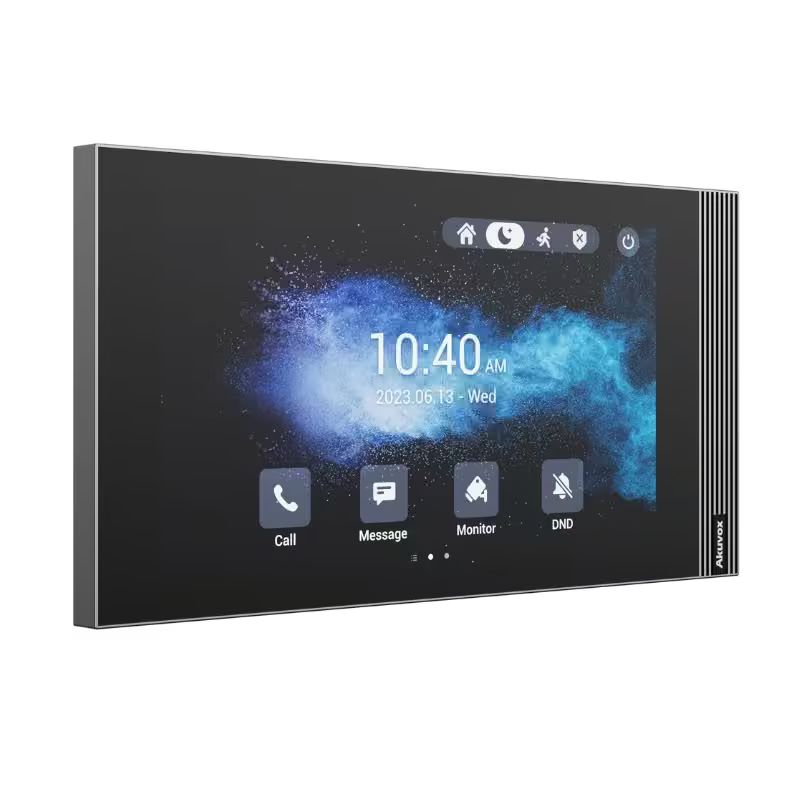

Akuvox S562W - SIP indoor monitor with 7" touchscreen, Wi-Fi, Linux, Surface mount version
The S562W indoor console fromAkuvox is ideal for communicating with your visitors. It boasts an elegant design and unbeatable value for money. This version has been specially designed for surface installation, without the need for a flush-mounted box.
- Elegant design
- 7" touch screen
- 1024x600 resolution
- Wi-Fi
- Linux operating system
- 1x relay output
- 1x doorbell input
- POE
- Side-mounted RJ45 connectors for surface installation.
As an official Akuvox supplier, we are able to offer a 5-year warranty on this product. Choose the 2-year or 5-year warranty below.
TheAkuvox S562W-S runs on a Linux operating system and is equipped with wifi. Using the SIP 2.0 protocol, the S562W also provides audio + video communication with door phones. With its minimalist design, the S562 blends in well with any modern interior environment.
With its space-saving 7" capacitive touchscreen, the S562W-S offers an unbeatable value-for-money touch experience, while bringing comfort and security to the home.
The Akuvox S562W indoor display is ideal for integration into access control and smart home systems in shared housing and multi-unit buildings.

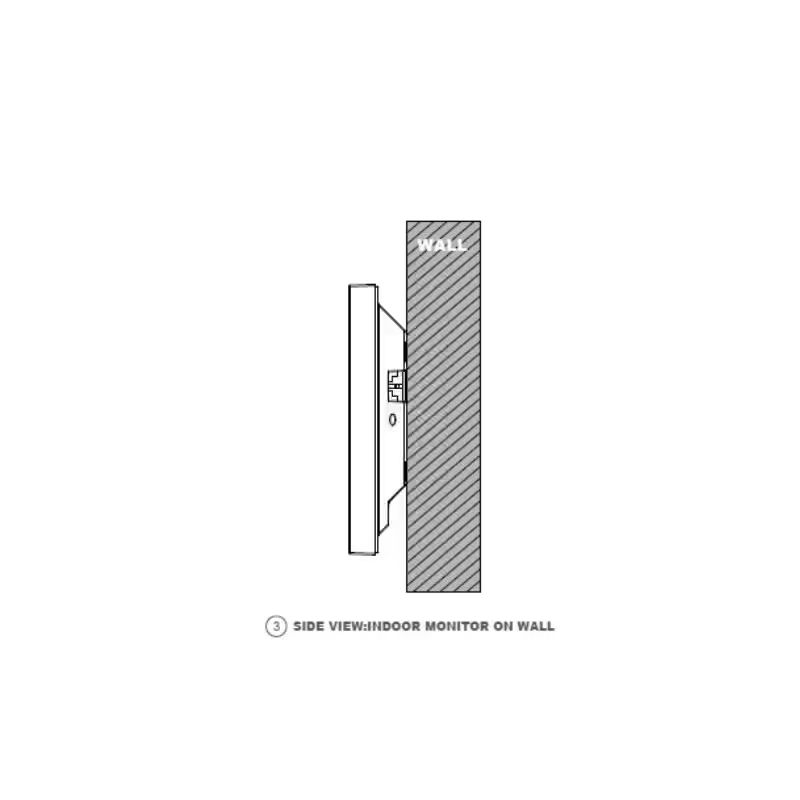

Ideal for surface installation

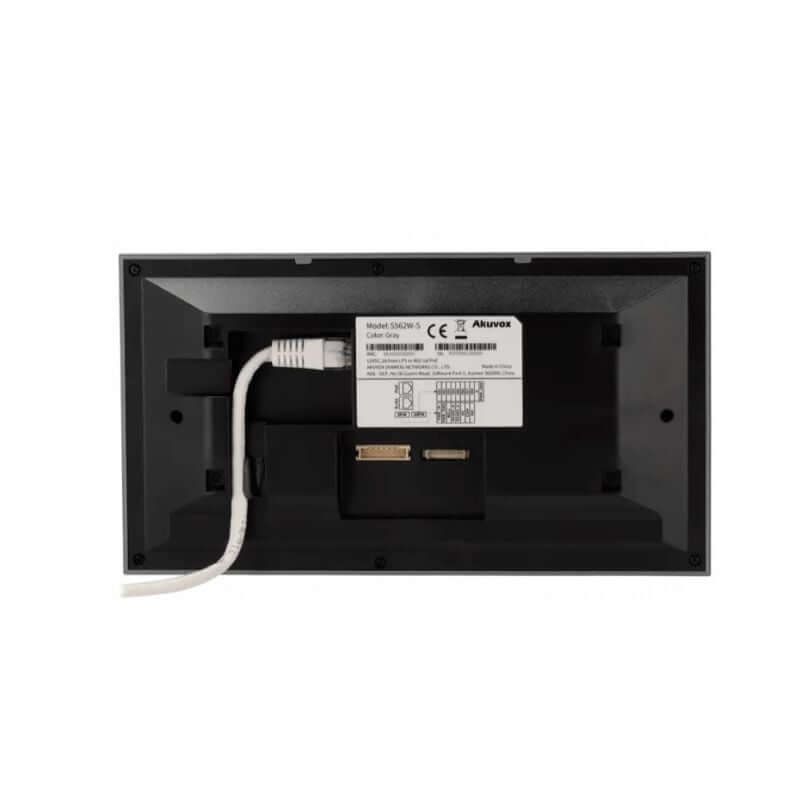

Thanks to the lateral positioning of the RJ45 ports, the shelf can be easily wall-mounted, without the need for a flush-mounted box.
Display the video stream from your security cameras on screen Akuvox
Your Akuvox S562-S tablet can, of course, display the video stream from your Akuvox door phone to communicate with your visitors and see what's going on outside, but you can also add the video stream from your IP security cameras. How convenient!
TECHNICAL SPECIFICATIONS
Physics and power supply
- Front panel : Plastic
- RAM / ROM: 128MB / 128MB
- Display: 7-inch TFT LCD 1024x600 resolution
- Screen: 7-inch capacitive touchscreen
- Wi-Fi: IEEE802.11 b/g/n, @ 2.4GHz
- RS485 port: Supported
- Relay output: 1
- Bell input: 1
- I/O: 8
- Microphone: -42dB
- Speaker: 4Ω / 2W
- Ethernet ports: 2xRJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if PoE is not used)
- Installation: Wall and desk mounting (optional desk stand available)
- Dimensions : 216.4x118.8x25.5mm
- Operating humidity: 10~90%
- Operating temperature : -10°C ~ +45°C (14°F ~ 113°F)
- Storage temperature: -20°C ~ +70°C
Touch screen
- Display mode: Normally white, transmissive
- LCD screen size: 7" diagonal
- Resolution: 1024x600
- Contrast ratio: 600:1
- Luminance: 250 cd/m
- Viewing angle: 50° left, 50° right, 40° up, 50° down
- Touch screen: projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Wideband audio codec: G.722
- DTMF: Out-of-band DTMF (RFC2833), SIP Info
- Echo cancellation
Video
- Streaming formats: H.264
- Networking
- Supported protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment and maintenance
- Self-provisioning
- Web-based management portal
- Web-based package dumping
- Configuration backup/restore
- Firmware update
- System logs (including door access logs)
Application scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
