Heatit Controls - Heatit Transformer
New
CHF28.00
Tax included

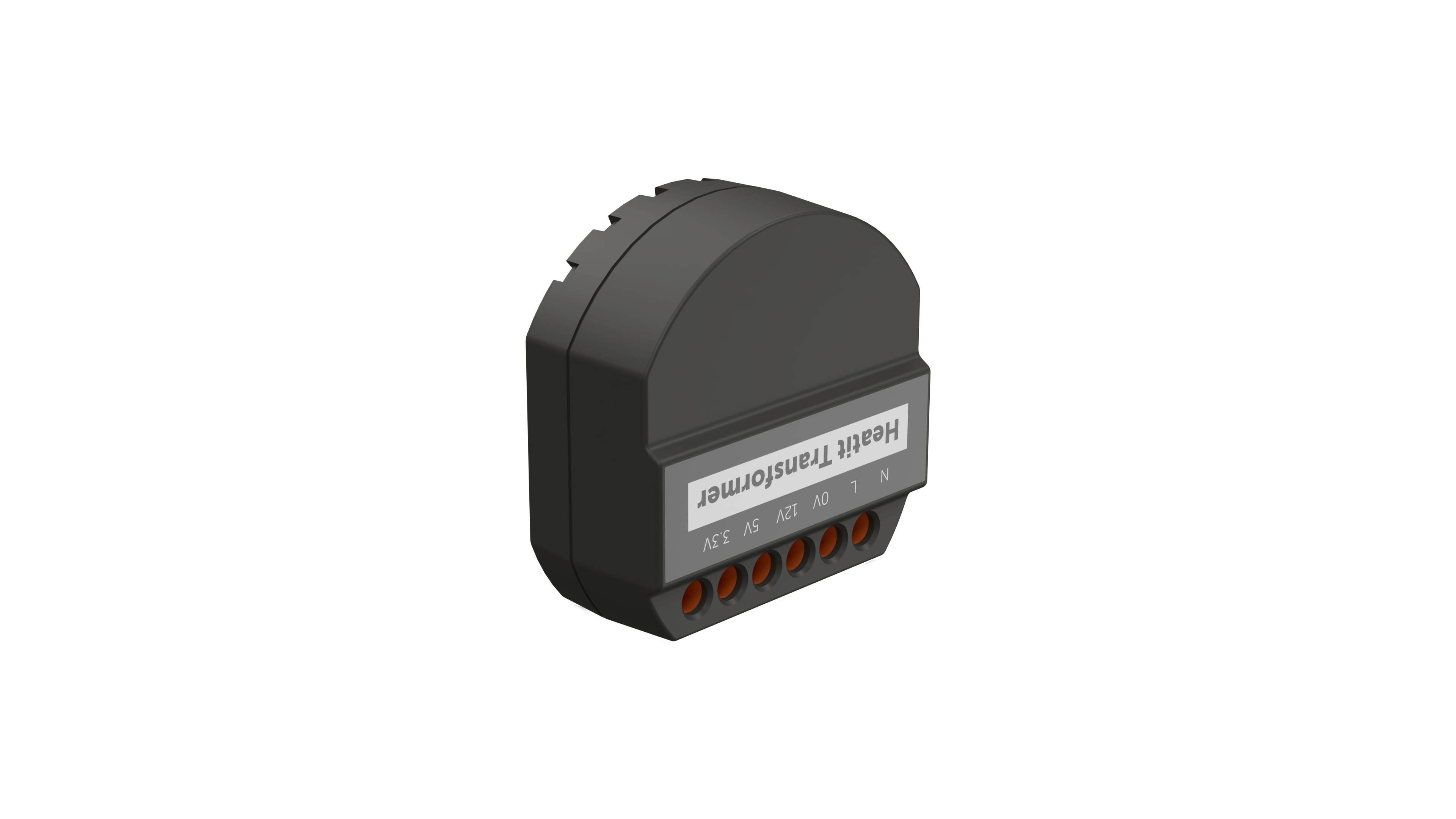

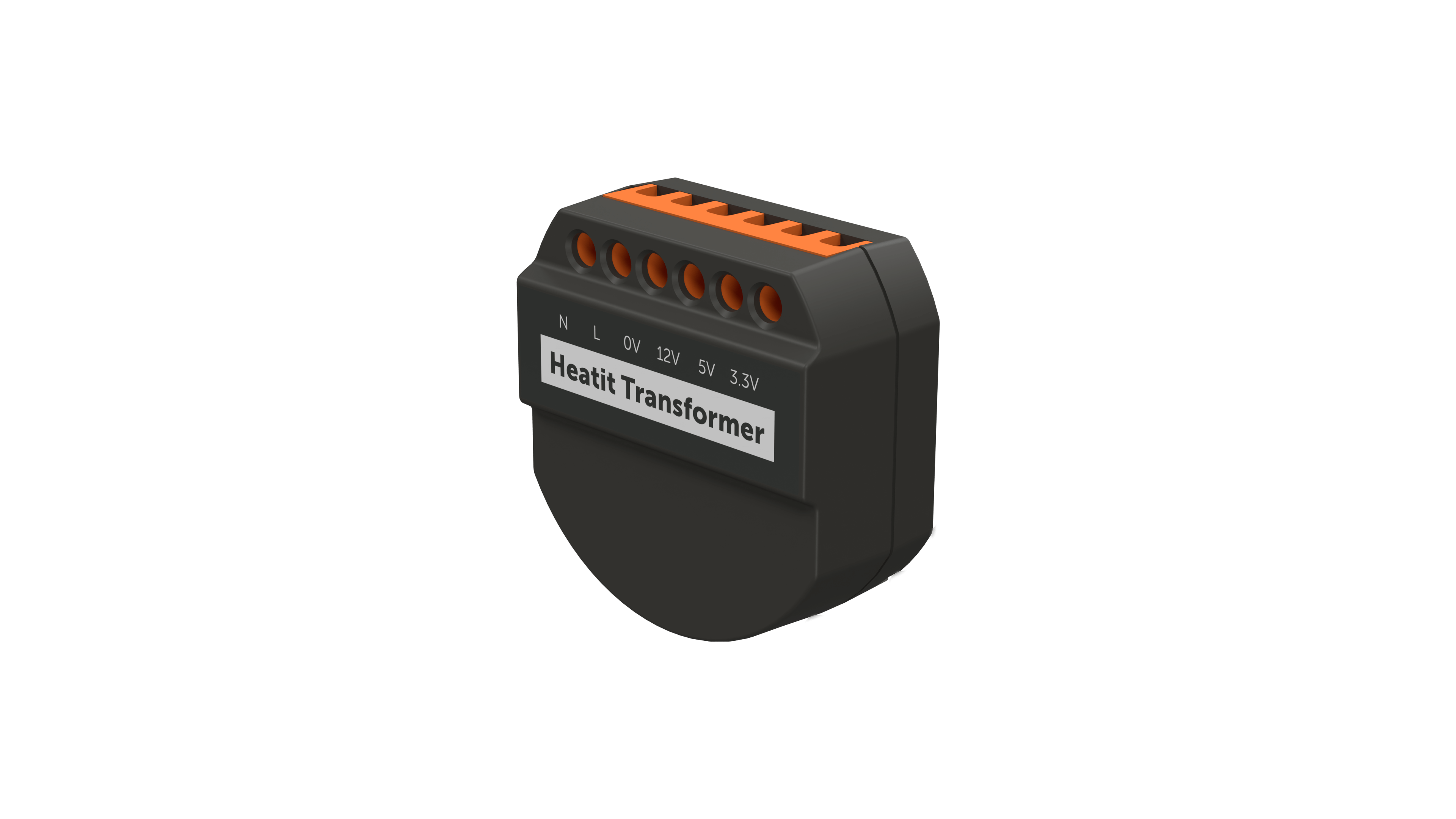

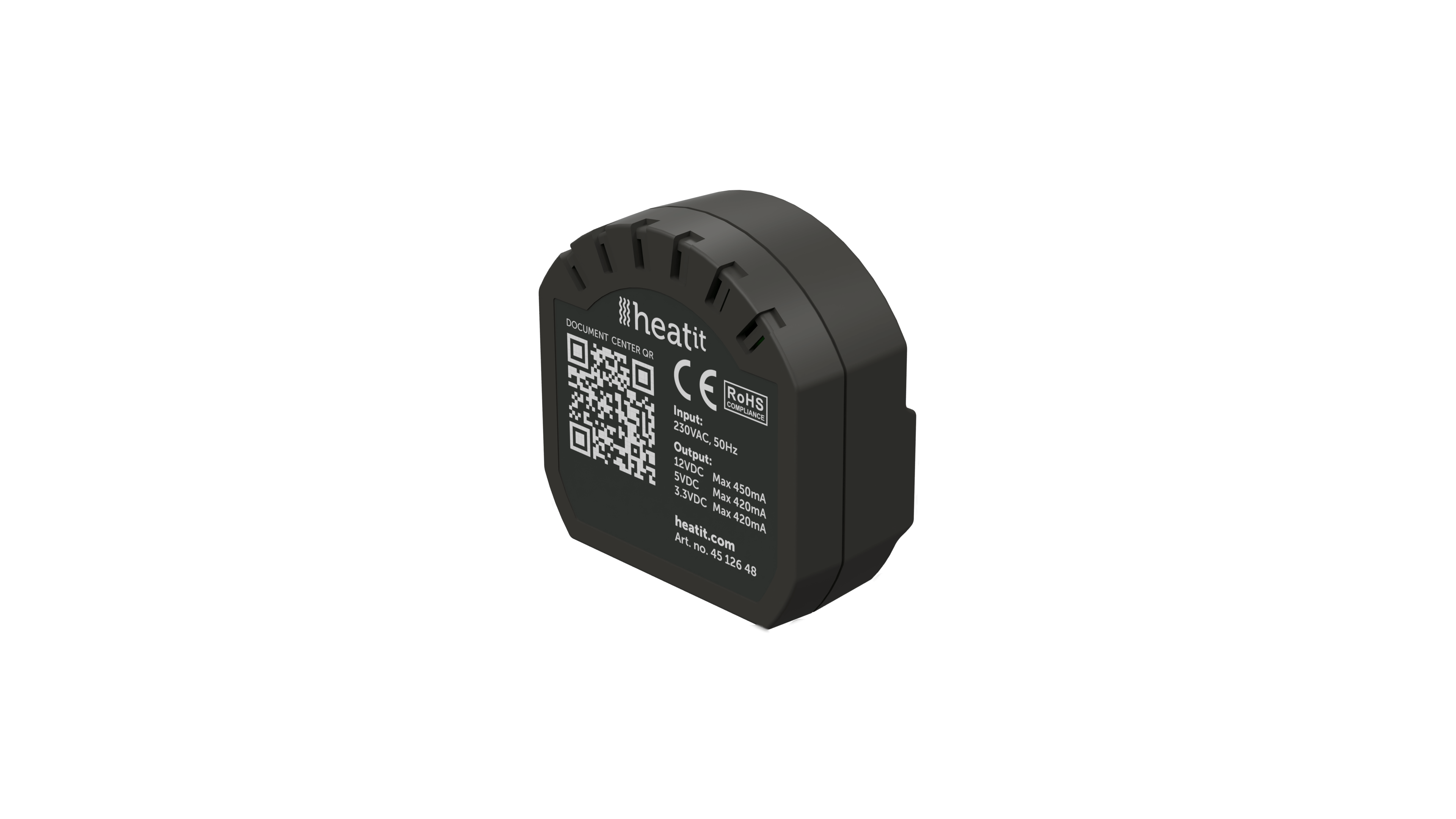

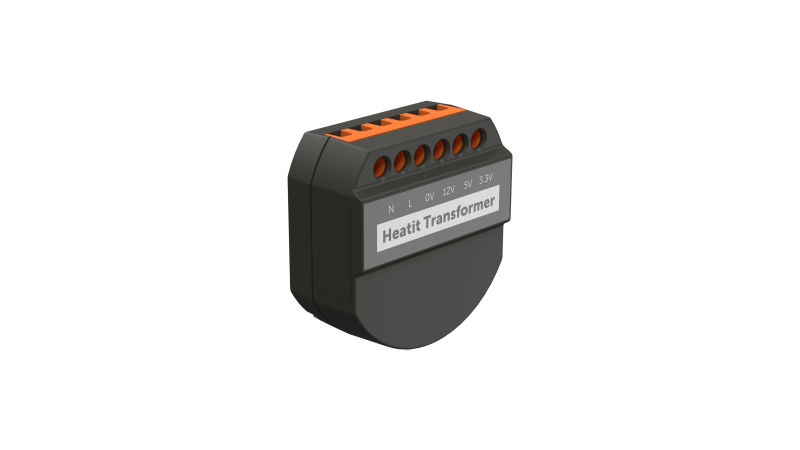

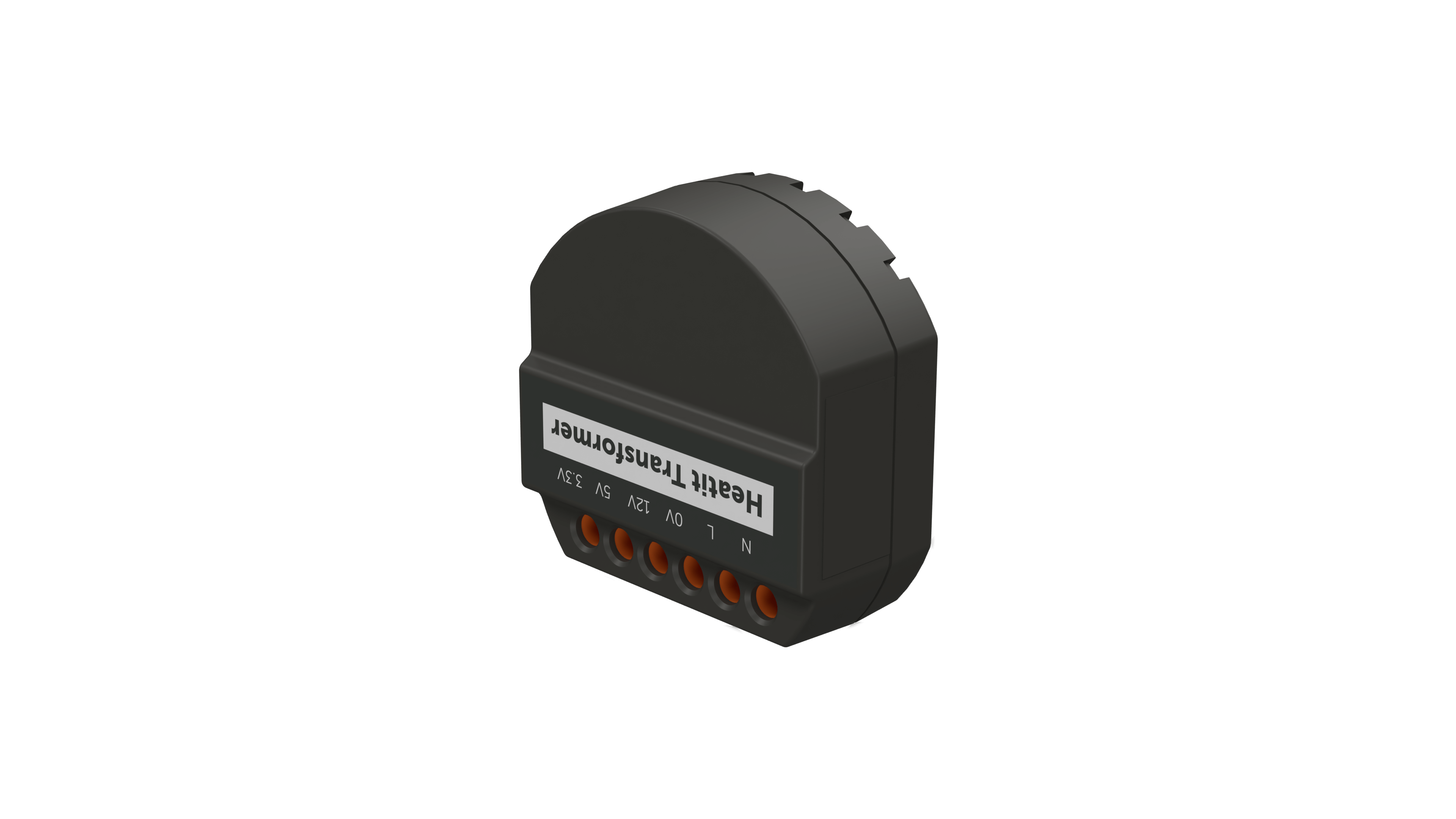

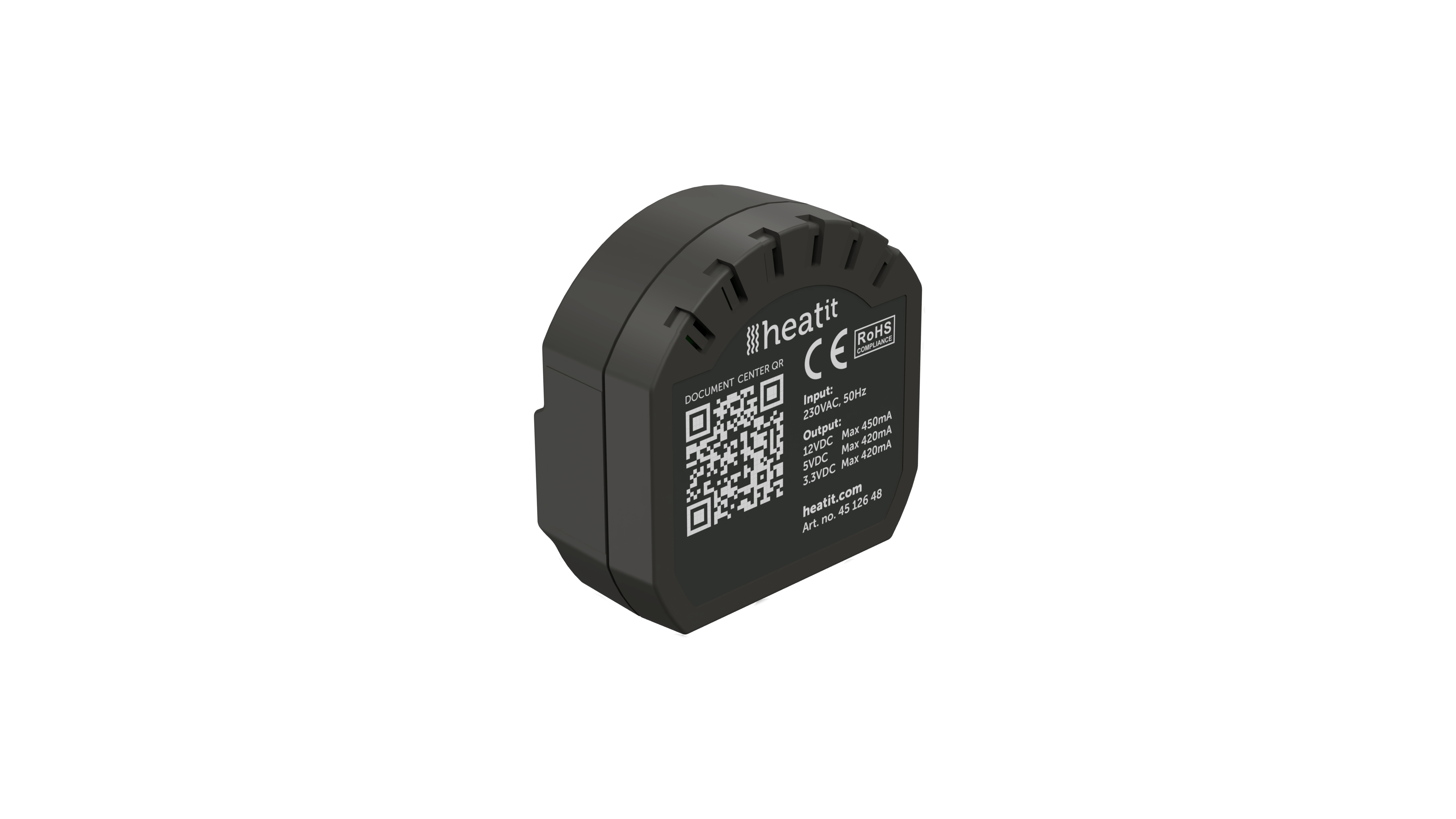

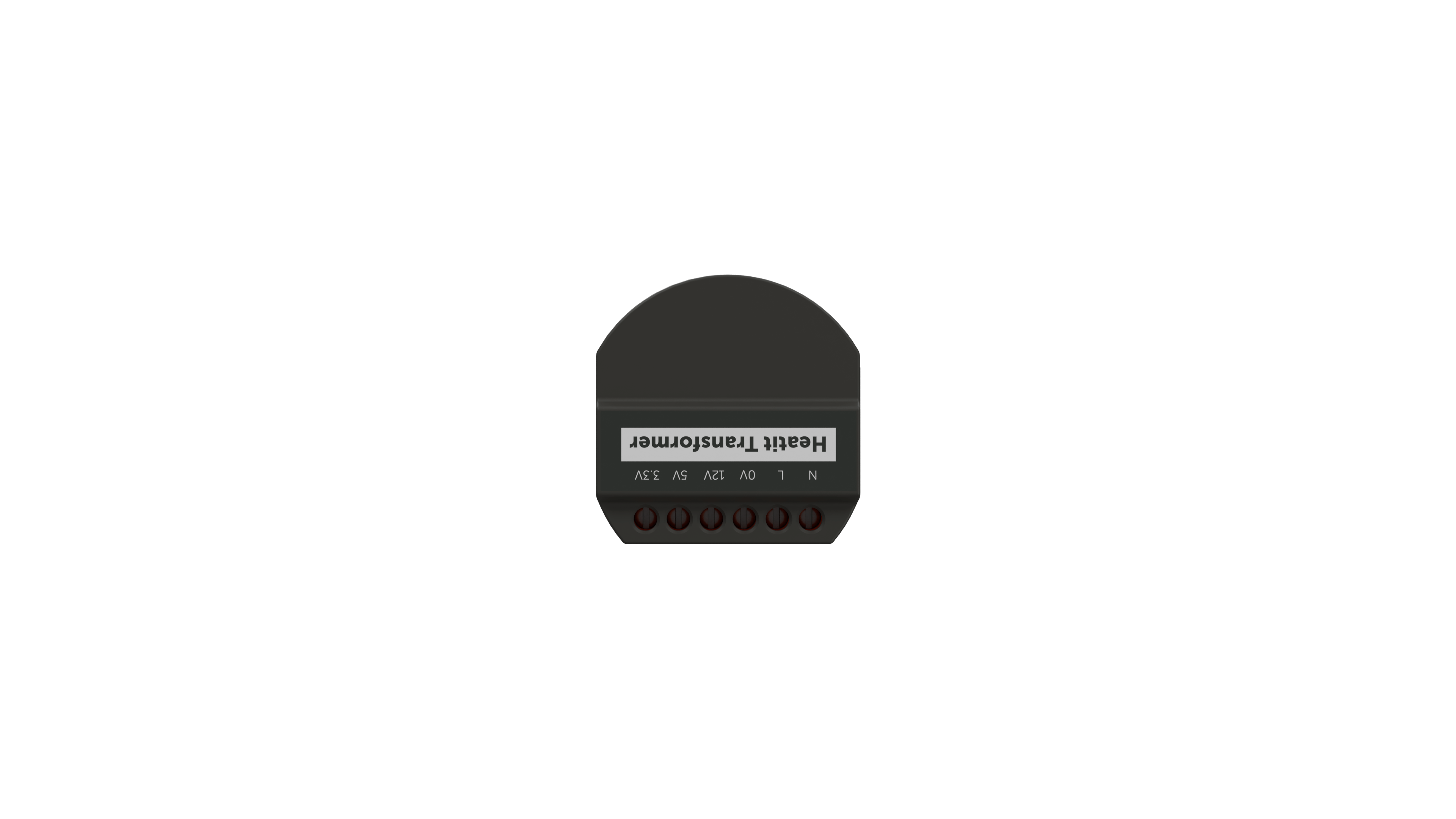

The Heatit Transformer is a recessed transformer that fits into European wall-mounted electrical boxes.
The Heatit Transformer is a recessed transformer that fits into European wall-mounted electrical boxes. It allows the user to connect low-voltage devices to the mains supply and change the voltage from 230 VAC to 12 VDC, 5 VDC or 3.3 VDC.
Combined with Heatit battery adapters, the Heatit transformer can operate your battery-powered devices from the mains. All battery-powered devices with a power consumption of up to 450 mA at 12 VDC or 420 mA at 5 VDC and 3.3 VDC can be connected to the transformer.
FUNCTIONS
- Adjust voltage from 230VAC to 12VDC, 5VDC or 3.3VDC
- Compact size - slips easily into a European wall-mounted electrical box
- Easy to install
SPECIFICATIONS
- Rated voltage: 230 VAC 50 Hz
- Output:
- 12 VDC max. 450mA
- 5 VDC max. 420mA
- 3.3 Vdc max. 420mA
- Ambient temperature: 5°C to 40°C
- Humidity: 10% to 85% RH
- Mounting depth: 19 mm

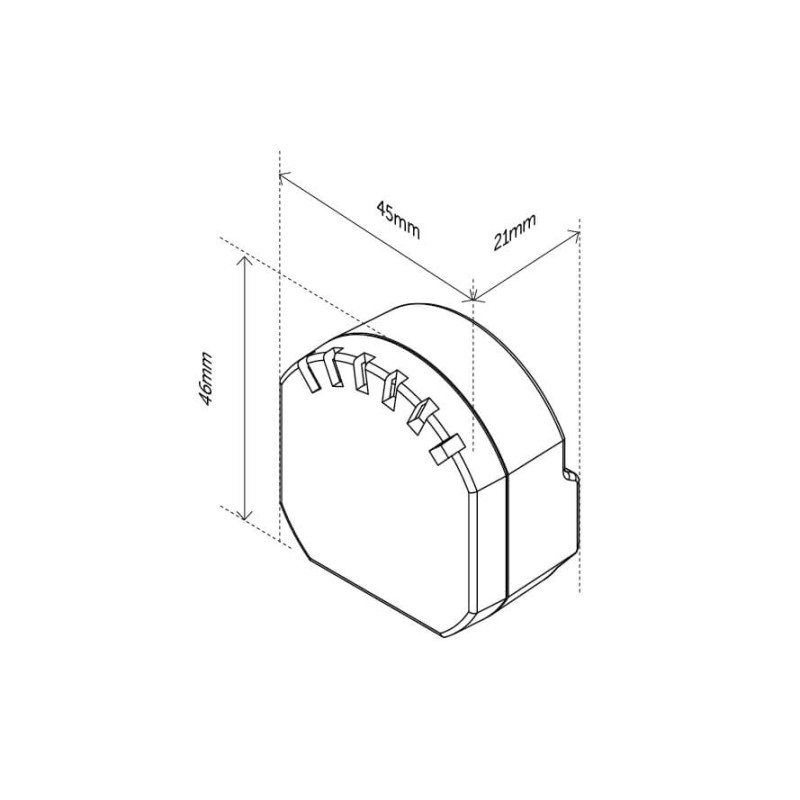

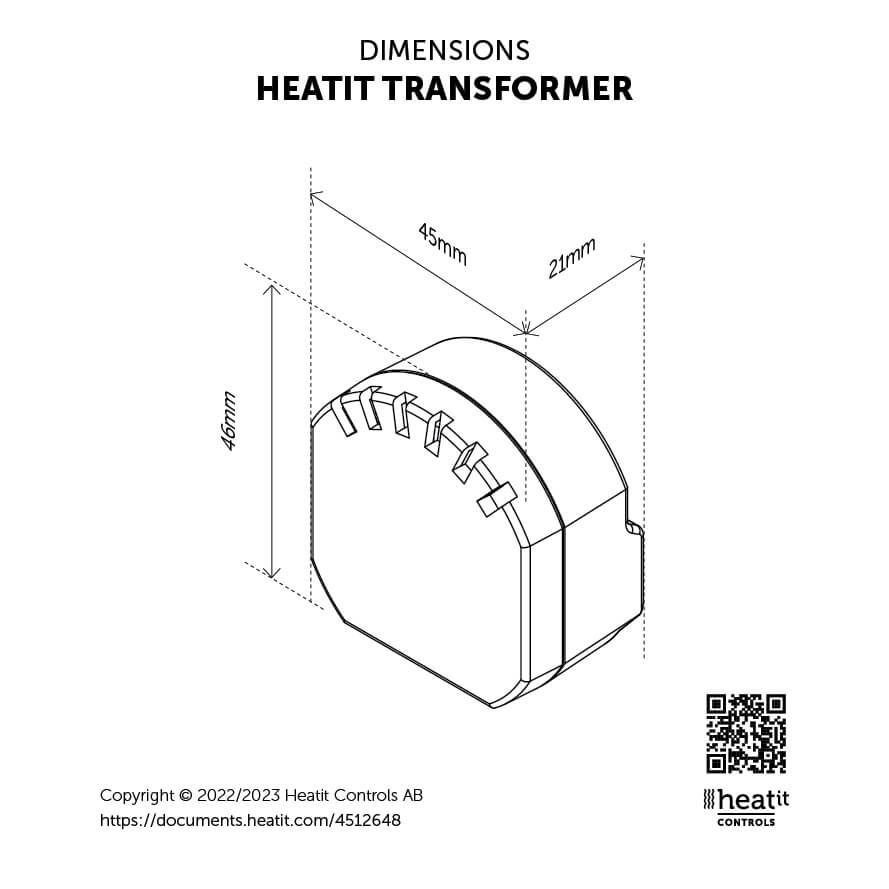

- Product size (WxHxD): 45 x 46 x 19 mm
- IP code: IP 21
- Approvals: CE
Specifications
| Type | Accessory Module |
|---|
