Heatit controls - Heatit ZM Thermostat 16A
CHF54.00
Tax included

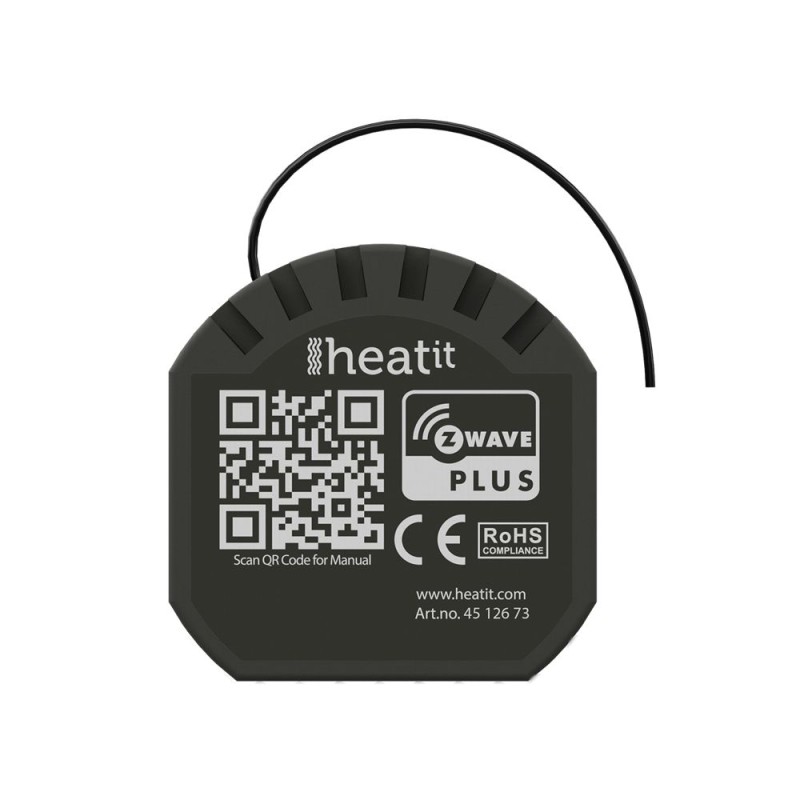

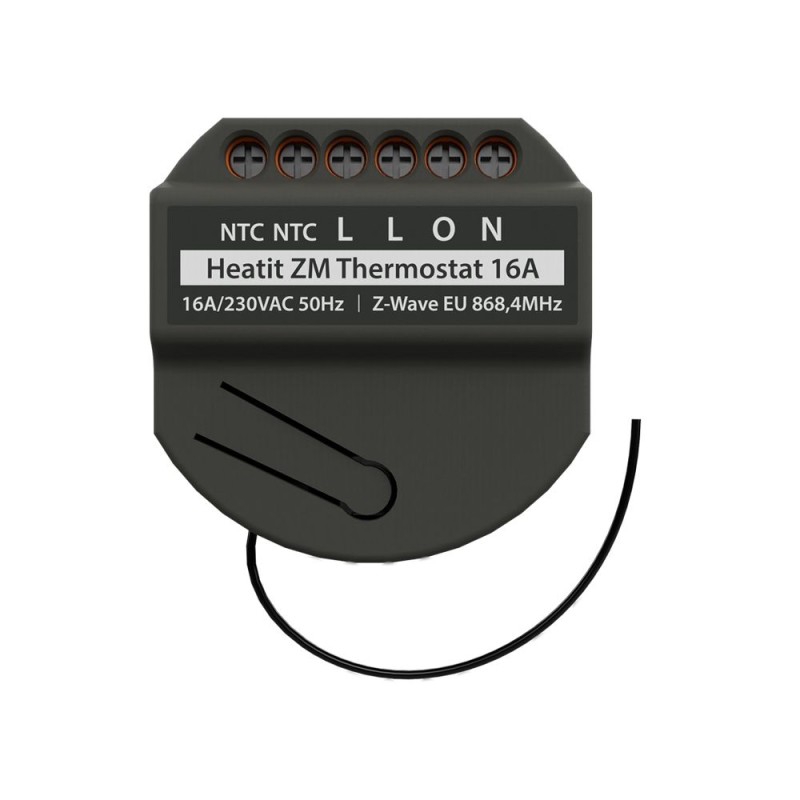

Heatit ZM Thermostat is a recessed thermostat module for electric floor heating.
The thermostat allows you to control your heating via your Z-Wave network.
Heatit ZM Thermostat is a recessed thermostat module for electric floor heating. The thermostat allows you to control your heating via your Z-Wave network.
The module is equipped with a 16A relay. The thermostat requires the connection of an external wired sensor, which is included.
The Heatit ZM thermostat has an energy meter and gives you real-time information about your energy consumption.
It is equipped with overheat, overload and short circuit protections.
Technical specifications
- Z-Wave 700
- Integrated thermostat
- Application: electric heating
- Power supply: 230VAC
- Dimensions: 45 x 45 x 25mm
- Operating temperature: 5°C to 40°C
- Maximum load capacity 16A (3600W)
- Supports active energy measurement and protections
- 10 kΩ NTC sensor (supplied as standard)
- Supports SmartStart, firmware update (OTA), S2 security
Specifications
| Protocol | Z-Wave Serie 700 |
|---|---|
| Type | 230v thermostats Thermostat (Flush-mounted) |
| Function | Heating Temperature |
| Gateway compatibility | Fibaro Home Center - total compatibility Homey - total compatibility eedomus+ - total compatibility |
| Use | Heating Management Temperature/Humidity/CO2 Monitoring |
