Z-Wave.Me - RaZberry 7 Pro (with external Antenna)

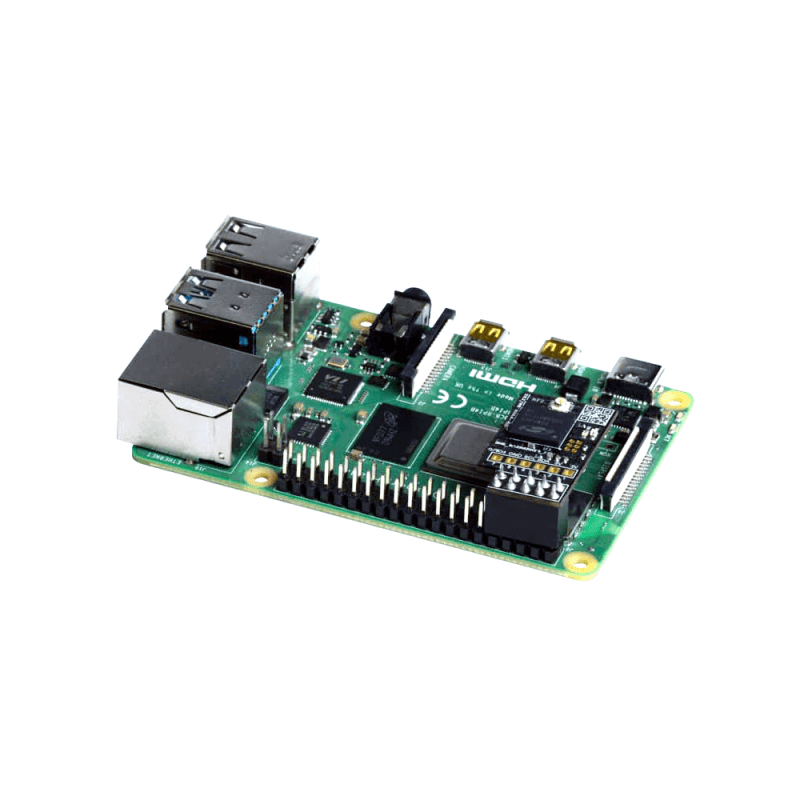

The RaZberry 7 Pro from Z-Wave.Me is a daughterboard for the Raspberry Pi, which turns it into a Z-Wave controller. The board is Raspberry Pi 1/2/3A/3B/3A+/3B+/4B compatible and it is even possible to connect it to an Orange Pi.

The RaZberry 7 Pro works with open source projects like Home Assistant, OpenZWave, OpenHAB, FHEM and Domoticz. There are no additional or monthly fees as the price of the RaZberry 7 Pro includes all required licenses.

The RaZberry 7 Pro from Z-Wave.Me guarantees an extended transmission range thanks to:

• 7th generation Z-Wave chip
• Best-in-class antenna designed in the United States (by Linx Technologies, Inc.)
• Premium firmware that utilizes all the latest hardware capabilities such as adjustable transmission power.


FEATURES

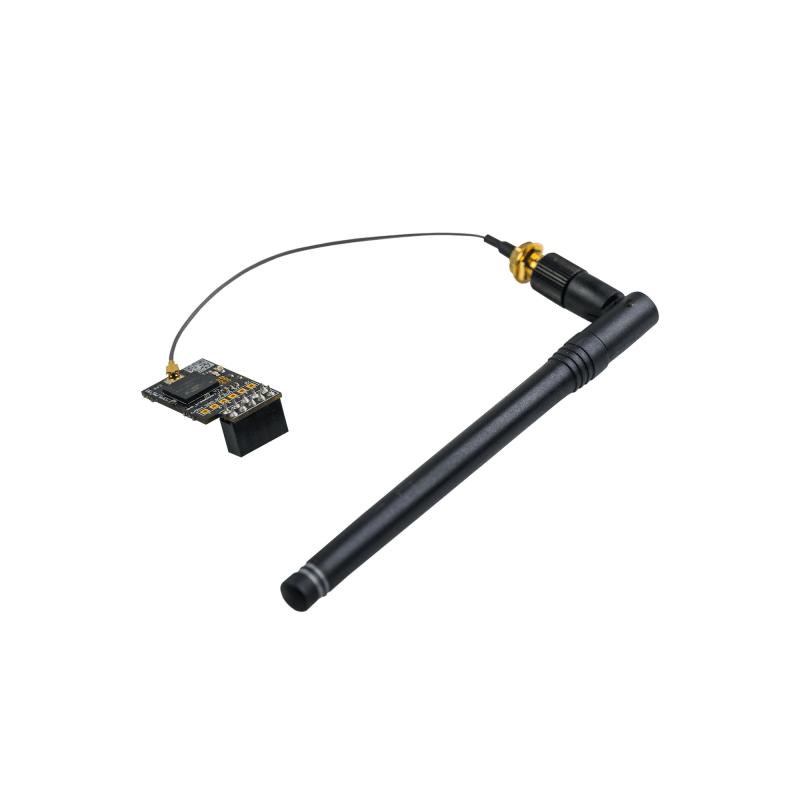

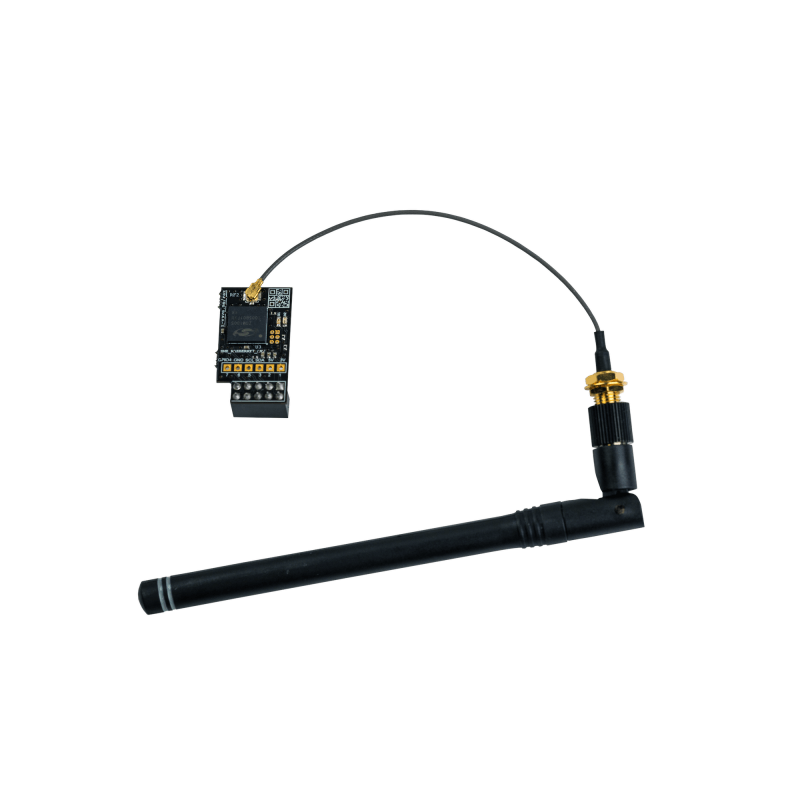

• Razberry 7 Pro for Raspberry Pi with external antenna
• Designed with Z-Wave 700 series - higher range, more efficient and better performance compared to older generation series
• Wireless technology: Z-Wave Plus V2 - SmartStart - Security S2
• Compatible with Raspberry Pi 1/2/3A/3B/3A+/3B+/4B and Orange Pi
• Works with Home Assistant, OpenZWave, OpenHAB, FHEM and Domoticz
• Extended transmission range


TECHNICAL SPECIFICATIONS

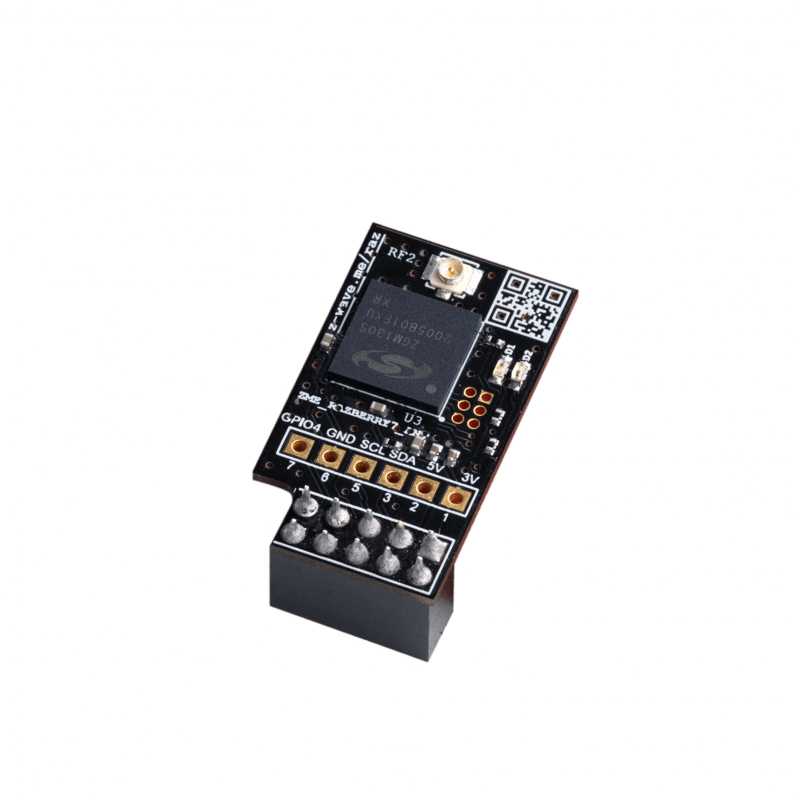

• Module type: Z-Wave+ controller
• Z-Wave chipset : Silicon Labs ZGM130S
• Power supply : Via the GPIO of the Raspberry Pi
• Frequency : 868,42 Mhz
• Wireless range : Min. 40 m indoors in free field
• LED indication : Red : Inclusion and Exclusion mode. Green: Sending data.
• Interface : TTL UART (3,3 V) compatible with Raspberry Pi GPIO pins
• Dimensions: 30 mm x 17 mm x 12 mm
• Weight : 16 gr
