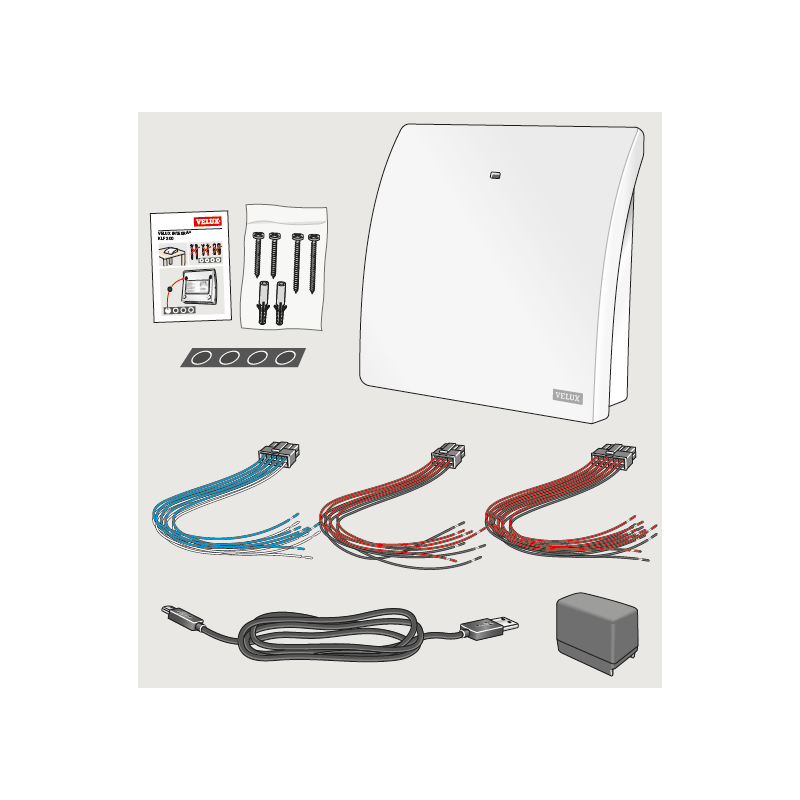

VELUX - Home interface VELUX INTEGRA KLF 200

Presentation

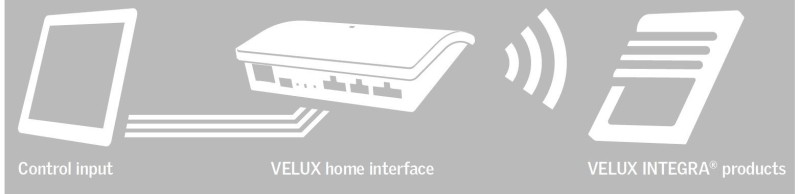

The VELUX INTEGRA® products can be simply controlled with the new KLF 200 interface thanks to external signals (domotic systems, weather stations, captors, wall buttons).

KLF 200 can manage 5 individual drives or 5 drive groups of up to 200 listed VELUX INTEGRA® products.

Programming can be done easily by way of a laptop or a tablet thanks to the integrated mini-WLAN.

This product can also be used as a repeater and thus serves as a signal amplifier.

Functions

• Allows to control io-homecontrol® products from a non io-homecontrol® product.
• Use in standard mode (up to 5 products) or advanced mode (up to 200 products), limited to 5 families of products.
• Creation of scenarios via a Web interface.
• Feedback.


Technical specifications

• Single interface for all the families of products.
• Power 230 V (cable 1,2 m).
• Radio frequency : 868 MHz (io-homecontrol®), 2.4 GHz (WiFi 802.11 b/g/n).
• Scope of radio transmission : 300 m outdoors without obstacle. About 30 m indoors.
• Dimensions (l × L × H): 136 × 127 × 34 mm
• Weight :163 g
